Fuse Block - Auxiliary (HP7) Connector
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

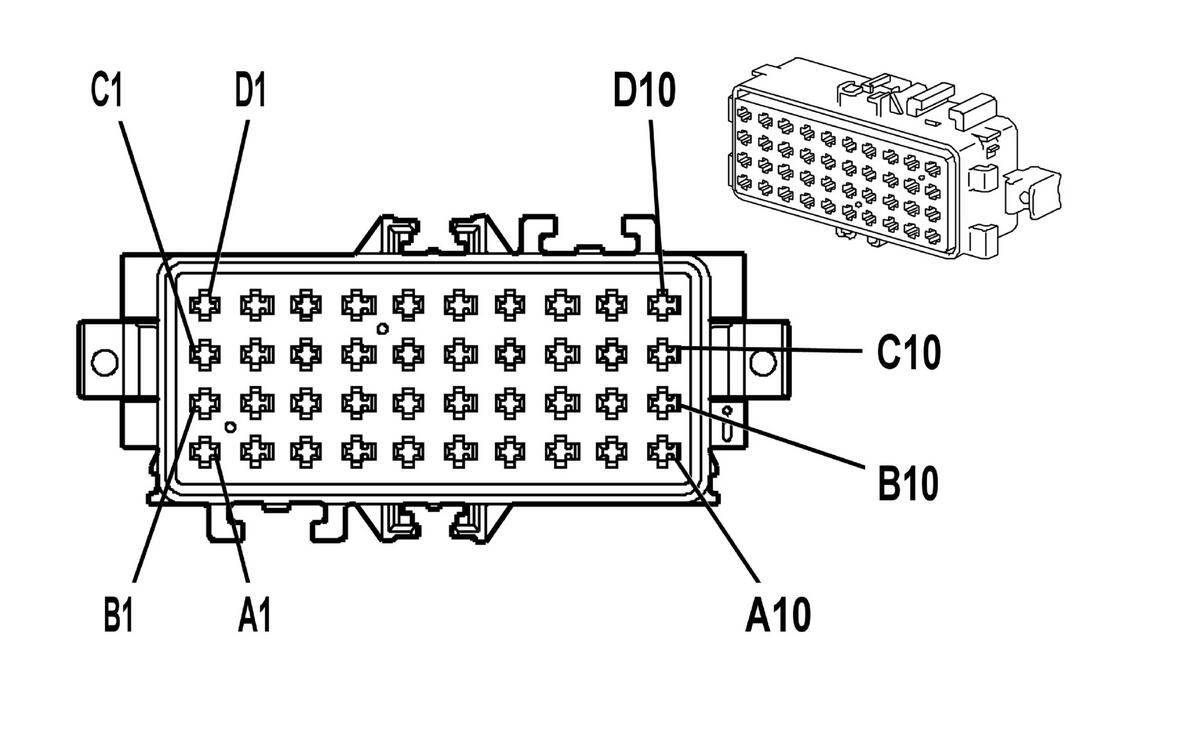

Fuse Block - Auxiliary (HP7) Connector
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A1 | - | - | Not Used |
| A2 | 1 GY/WH | 5259 | Battery Positive Voltage |
| A3 | - | - | Not Used |
| A4 | 0.8 RD/WH | 3140 | Battery Positive Voltage |
| A5 | 0.5 BN | 909 | Hill Hold Brake Delay Valves Relay Contact Output Voltage |
| A6 | - | - | Not Used |
| A7 | 0.35 PK | 639 | Ignition 1 Voltage |
| A8 | 2 RD/BK | 42 | Battery Positive Voltage |
| A9 | 0.5 RD/WH | 2940 | Battery Positive Voltage |
| A10 | - | - | Not Used |
| B1 | - | - | Not Used |
| B2 | 0.5 PK/WH | 5537 | Automatic Transmission Auxiliary Fluid Pump Battery Voltage |
| B3 | - | - | Not Used |
| B4 | 0.8 RD/WH | 3140 | Battery Positive Voltage |
| B5 | 0.35 GY | 990 | Hill Hold Brake Delay Valves Relay Control |
| B6 | - | - | Not Used |
| B7 | 0.5 RD/WH | 3240 | Battery Positive Voltage |
| B8 | 2 RD/BK | 40 | Battery Positive Voltage |
| B9 | 0.5 RD/WH | 3240 | Battery Positive Voltage |
| B10 | - | - | Not Used |
| C1-C7 | - | - | Not Used |
| C8 | 2 RD/BK | 42 | Battery Positive Voltage |
| C9 | 1 RD/WH | 3140 | Battery Positive Voltage |
| C10 | - | - | Not Used |
| D1-D10 | - | - | Not Used |
Connector Part Information
|
Terminal Part Information
|
