Removal Procedure

WARNING: This page is about a different car, the 2001 Chevrolet Monte Carlo and 2001 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the left instrument panel (I/P) insulator. Refer to INSTRUMENT PANEL CLUSTER .
  3. Remove the screws from the accessory wiring junction block.
  4. Adjust the junction block for access.
  5. Remove the circuit breakers (4) and the relays from the junction block as required. Refer to Relay Replacement (Within An Electrical Center)  or Relay Replacement (Attached To Wire Harness) . .

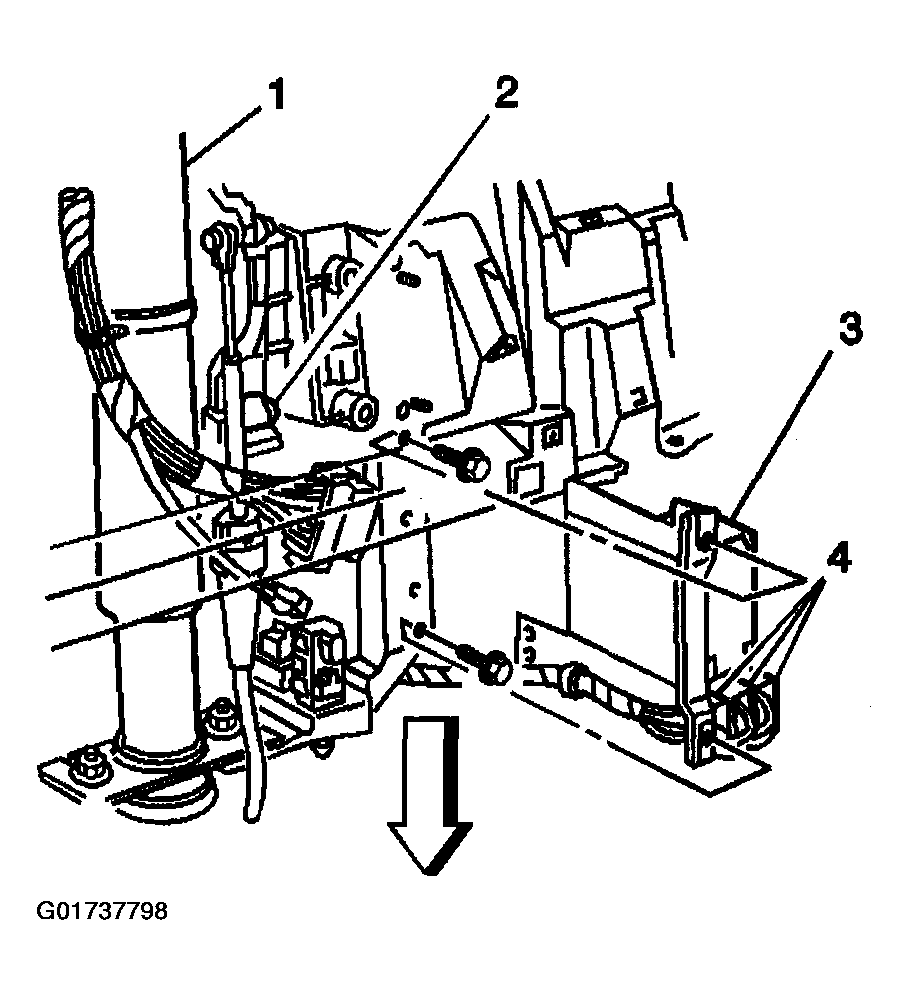

    Fig 1: Junction Block
    G01737798Courtesy of GENERAL MOTORS CORP.
  6. If necessary remove the junction block from the bracket assembly.
