Vehicle Speed Sensor: Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply Transmission Assembly Lubricant (J-36850) to the VSS "O" ring.

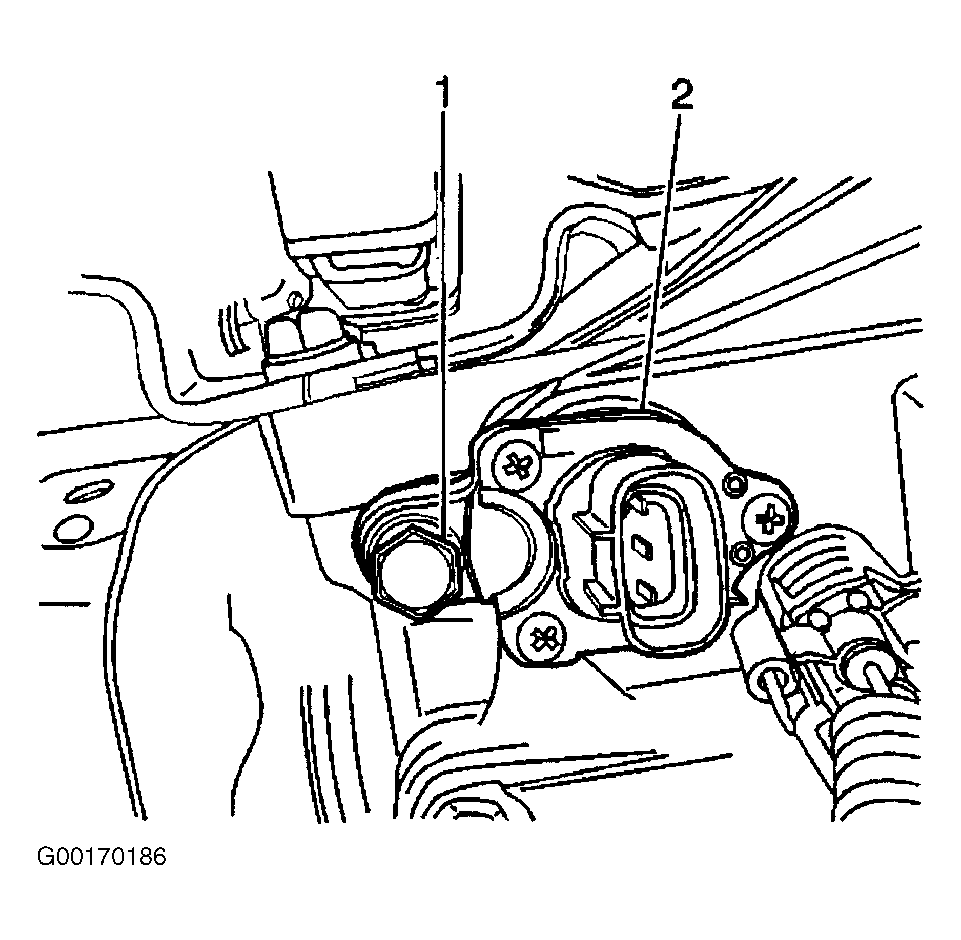

  2. Install the VSS into the transaxle case. Secure the VSS (2) with the retaining bolt (1). See Figure . Tighten bolt to specification. See TORQUE SPECIFICATIONS  .
  3. Connect the VSS electrical connector. See Figure .
  4. Connect the negative (-) battery cable.
