Wheels/Vehicle Underbody Component Views

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

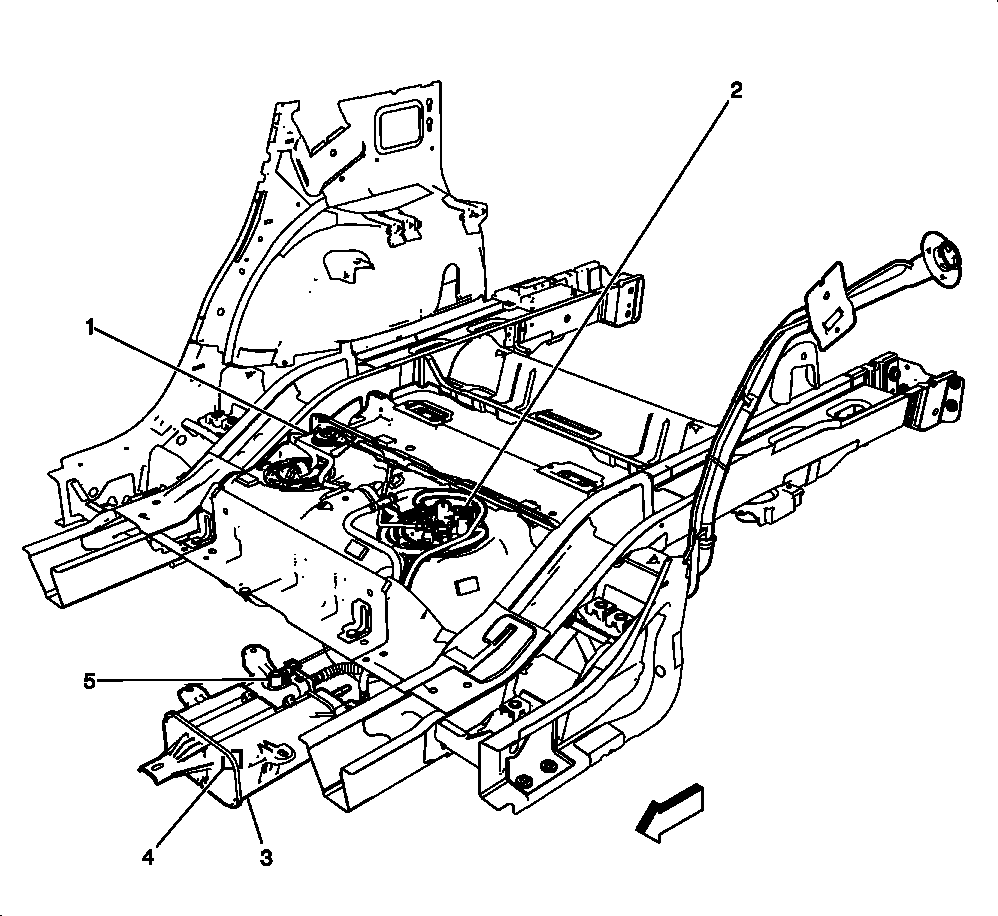

Fig 1: Evaporative Emissions (EVAP) Canister Vent Solenoid Valve

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank
2	Evaporative Emissions (EVAP) Canister
3	Fuel Tank Pressure Sensor
4	Evaporative Emissions (EVAP) Canister Vent Solenoid Valve

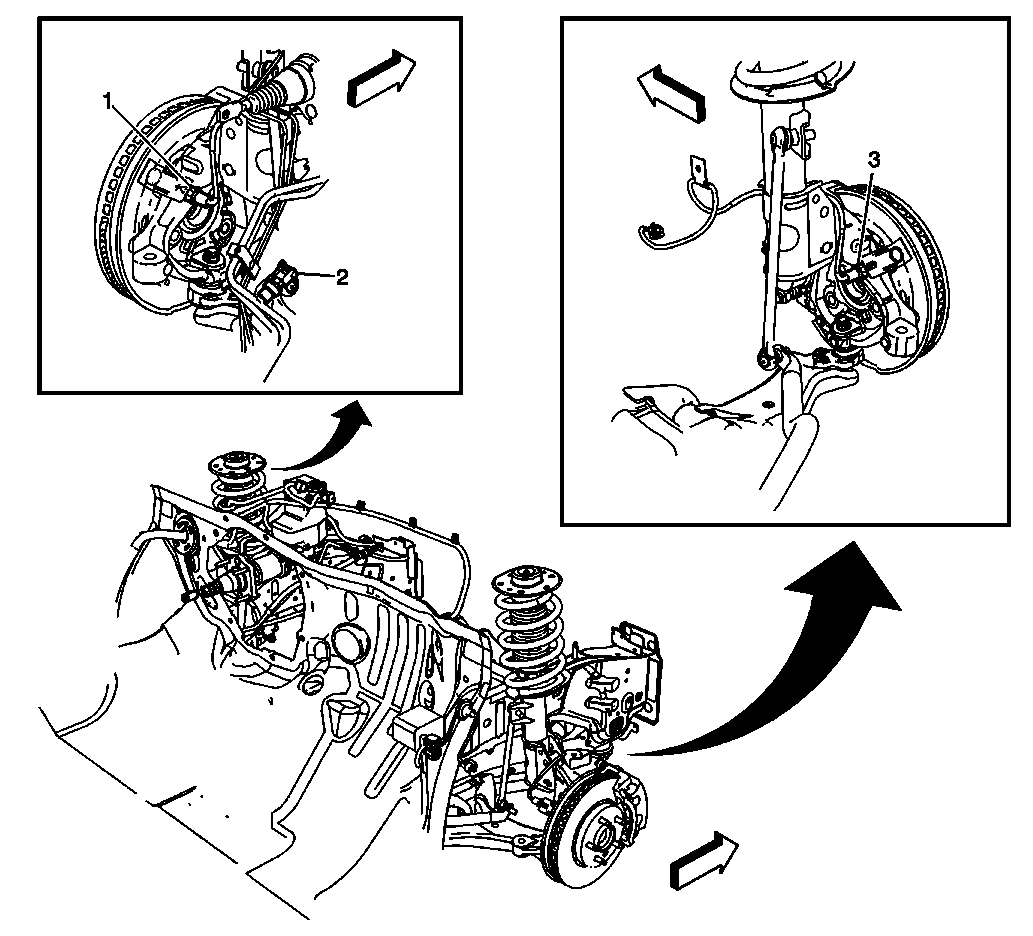

Fig 2: Front Wheel Speed Sensors And Fuel Line Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - Left Front
2	Fuel Pressure Sensor
3	Wheel Speed Sensor (WSS) - Right Front

Fig 3: Fuel Tank - Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Level Sensor - Secondary
2	Fuel Pump
3	Fuel Level Sensor - Primary/Fuel Pump Motor
4	Fuel Sender Assembly - Secondary
5	Fuel Pump and Sender Assembly - Primary

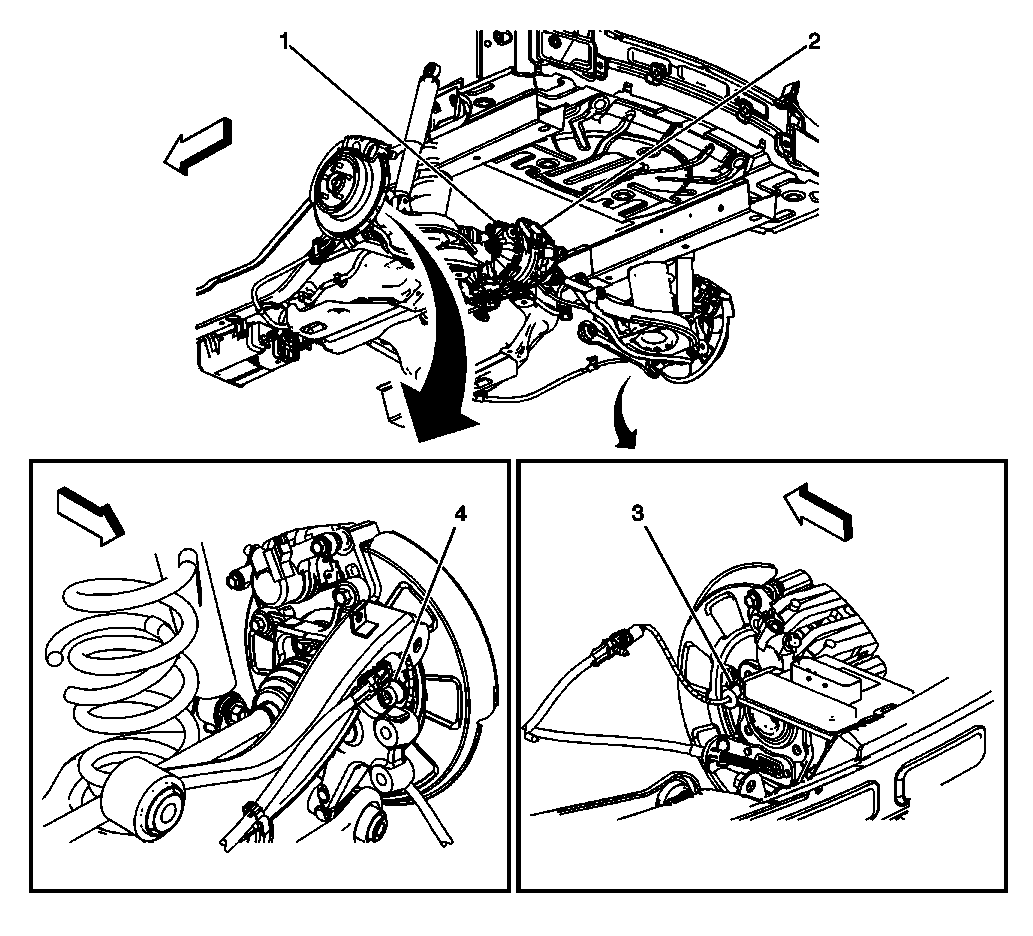

Fig 4: Rear Frame And Underbody Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Wheel Drive Module Clutch (AWD)
2	Rear Differential Clutch Control Module (AWD)
3	Wheel Speed Sensor (WSS) - Right Rear
4	Wheel Speed Sensor (WSS) - Left Rear
