Instrument Panel/Center Console Component Views

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

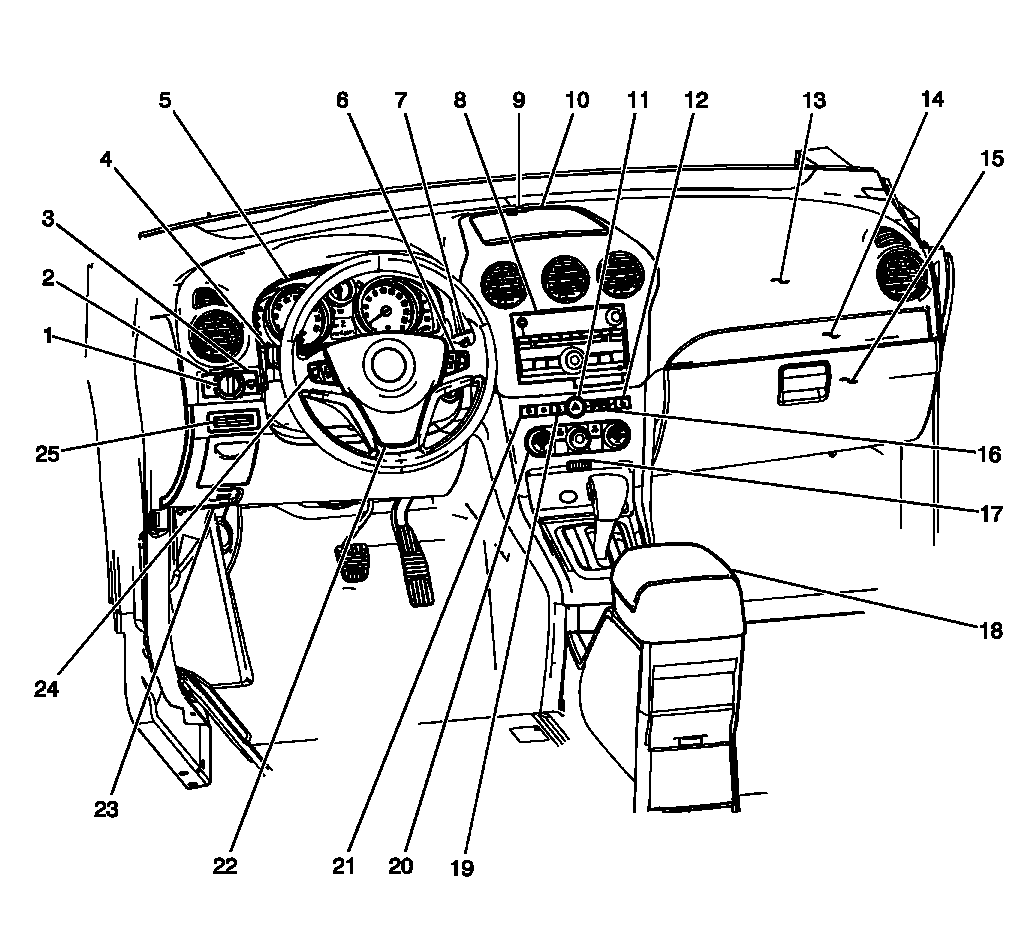

Fig 1: Instrument Panel Overview

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Fog Lamp Switch (T37/T96)
3	I/P Dimmer Switch
4	Turn Signal/Multifunction Switch
5	Instrument Panel Cluster (IPC)
6	Steering Wheel Control Switch - Right (UK3)
7	Windshield Wiper/Washer Switch - Front
8	Radio
9	Ambient Light Sensor/Sunload Sensor (C68)
10	Speaker - Center (U61)
11	Hazard Warning Switch, Part of Multifunction Switch I/P
12	Inflatable Restraint Passenger Presence Indicator, Part of Multifunction Switch I/P
13	Inflatable Restraint I/P Module
14	I/P Compartment Lamp
15	I/P Compartment Lamp Switch
16	Security Indicator Lamp, Part of Multifunction Switch I/P
17	Air Temperature Sensor Assembly - Inside (C68)
18	Floor Console
19	Traction Control Switch, Part of Multifunction Switch I/P
20	HVAC Control Module
21	Windshield Wiper/Washer Switch - Rear, Part of Multifunction Switch I/P
22	Inflatable Restraint Steering Wheel Module
23	Data Link Connector (DLC)
24	Steering Wheel Control Switch - Left ( UK3)
25	Driver Information Center (DIC) Switch

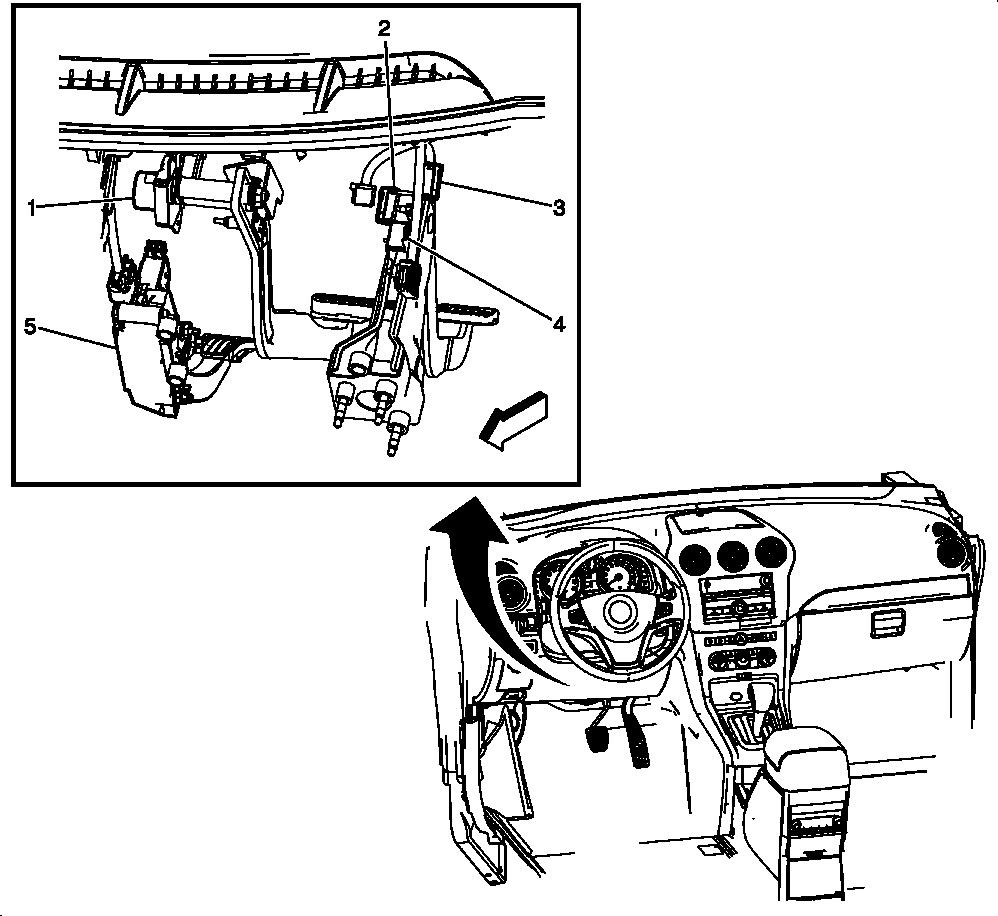

Fig 2: Lower Left Side Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch
2	Accelerator Pedal Position (APP) Sensor

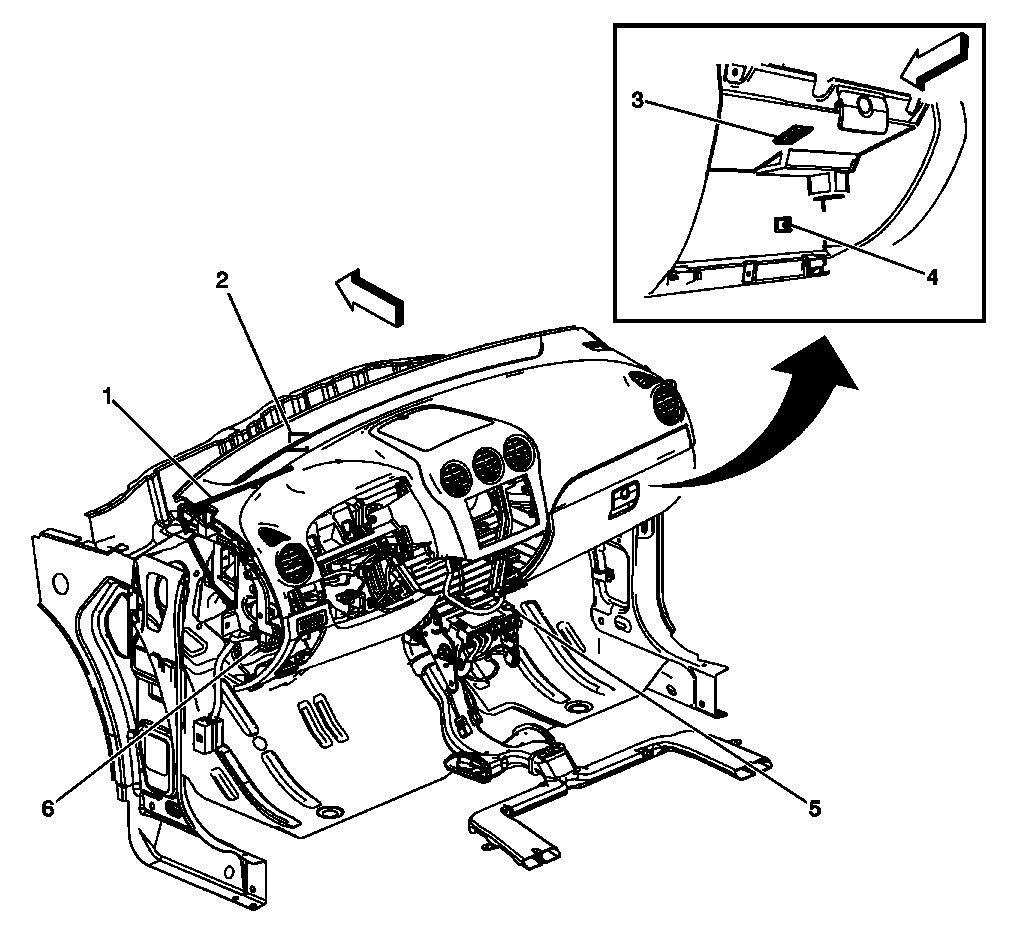

Fig 3: Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR) Antenna - Extended Range (AP3)
2	GPS Navigational Antenna - Radio
3	I/P Compartment Lamp
4	I/P Compartment Lamp Switch
5	Body Control Module (BCM)
6	Remote Control Door Lock Receiver (RCDLR) (AP3)

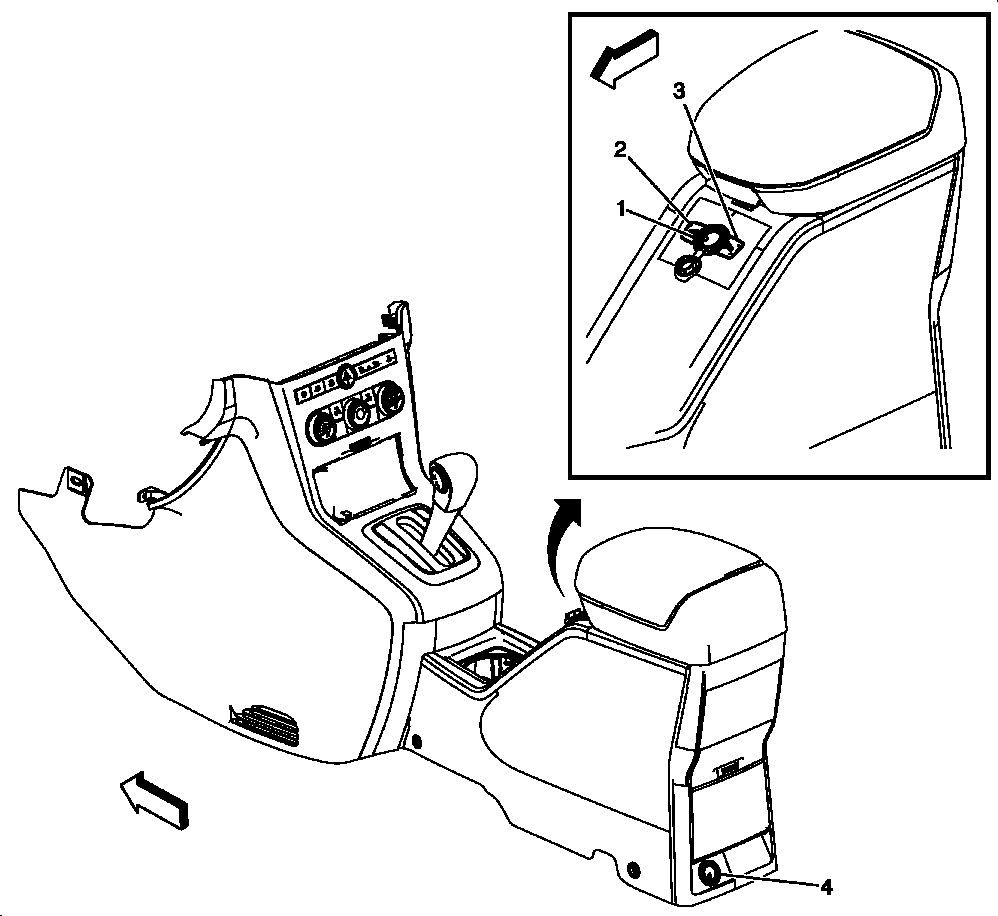

Fig 4: Floor Console Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accessory Power Outlet - Front
2	Heated Seat Switch - Passenger ( KA1)
3	Heated Seat Switch - Driver ( KA1)
4	Rear Seat Audio IR Module (UUC)
5	Audio/Video Adapter (UUC)
6	Accessory Power Outlet - Center Console

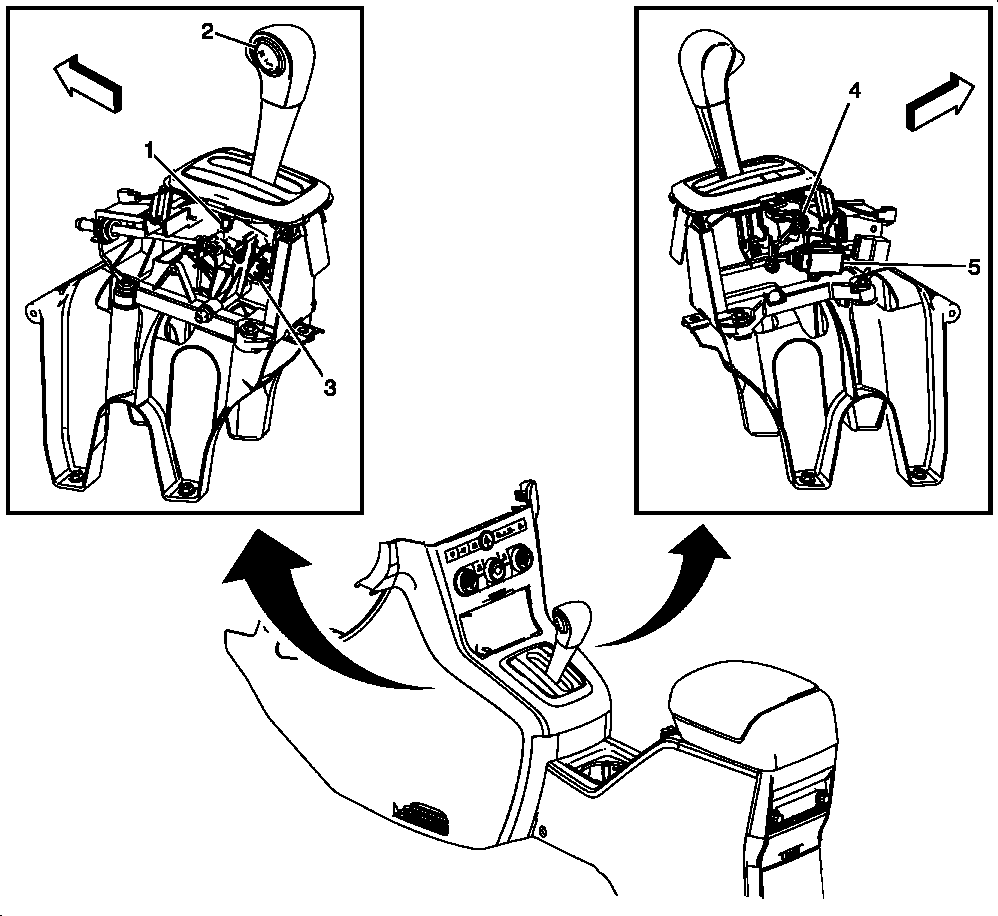

Fig 5: A/T Floor Shift Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Shift Lever Position Indicator
2	Automatic Transmission Manual Shift Switch (TapDown)
3	Automatic Transmission Shift Lock Control Solenoid

Fig 6: HVAC Module Components (C67)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Air Plenum
3	Evaporator Temperature Sensor
4	Mode Actuator (Side View)
5	Air Temperature Actuator
6	Recirculation Actuator
7	Blower Motor
8	Blower Module
9	X202

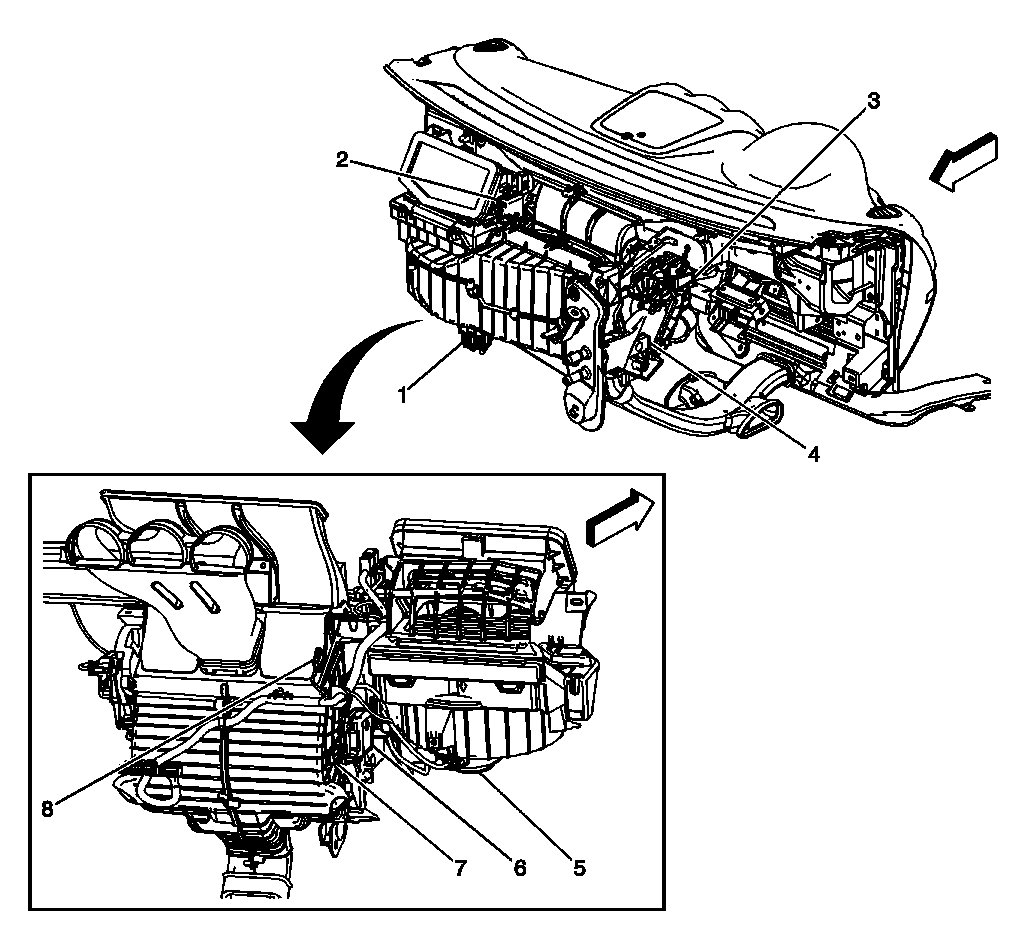

Fig 7: HVAC Module Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Control Module
2	Recirculation Actuator
3	Mode Actuator
4	Evaporator Temperature Sensor
5	Blower Motor
6	Air Temperature Actuator
7	Air Temperature Sensor - Lower ( C68)
8	Air Temperature Sensor - Upper ( C68)

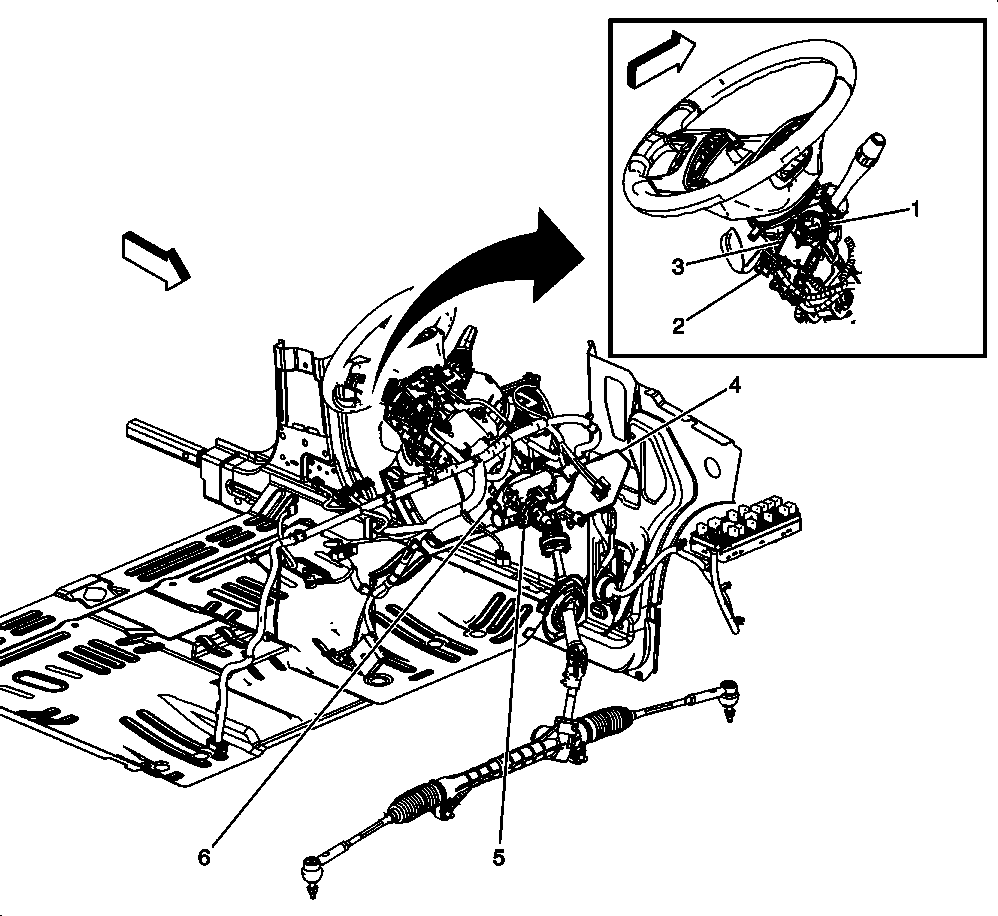

Fig 8: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch and Lamp
2	Ignition Lock Cylinder Control Solenoid (LAT or LE5 or LE9)
3	Theft Deterrent Module (TDM)
4	Electric Power Steering (EPS) Module (LAT or LE5 or LE9)
5	Steering Angle Sensor (LY7/LZ4)
6	Steering Shaft Torque Sensor (LAT or LE5 or LE9)
7	Ignition Switch and Lamp

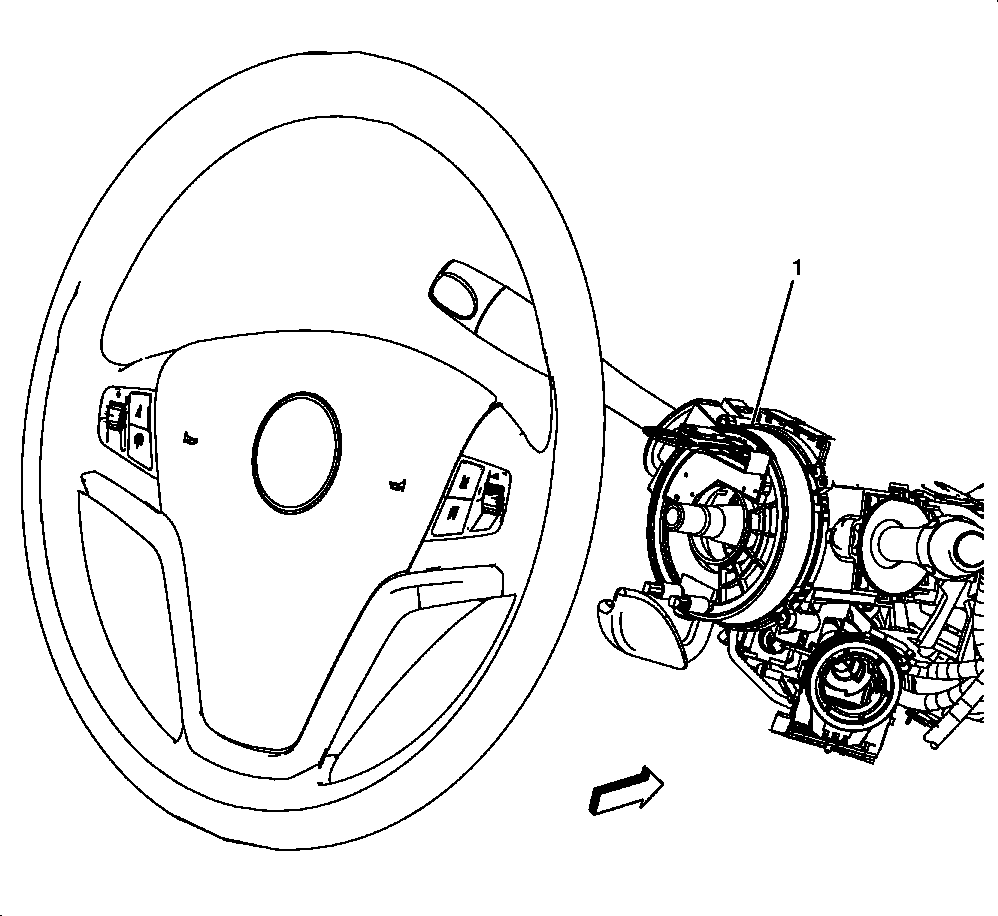

Fig 9: Steering Column Component

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Coil
