Exhaust Manifold Installation - Left Side

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

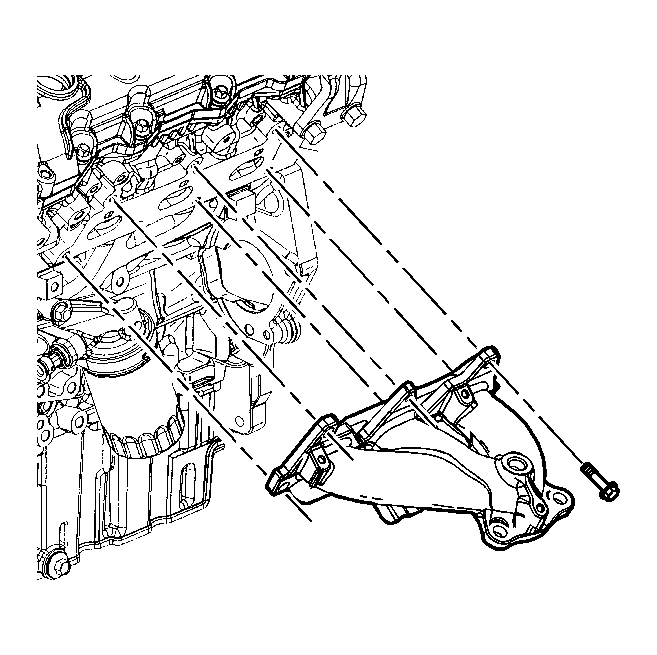

    Fig 1: Left Exhaust Manifold
    GM1866809Courtesy of GENERAL MOTORS CORP.
  1. Position a NEW exhaust manifold gasket onto the left exhaust manifold.
  2. Install the exhaust manifold bolts into the left exhaust manifold.
  3. Place the left exhaust manifold, exhaust manifold gasket and bolts as an assembly in position on the left cylinder head.
    4. CAUTION: Refer to Fastener Caution .
  4. Install the exhaust manifold bolts into the left cylinder head and tighten to 25 N.m (18 lb ft).

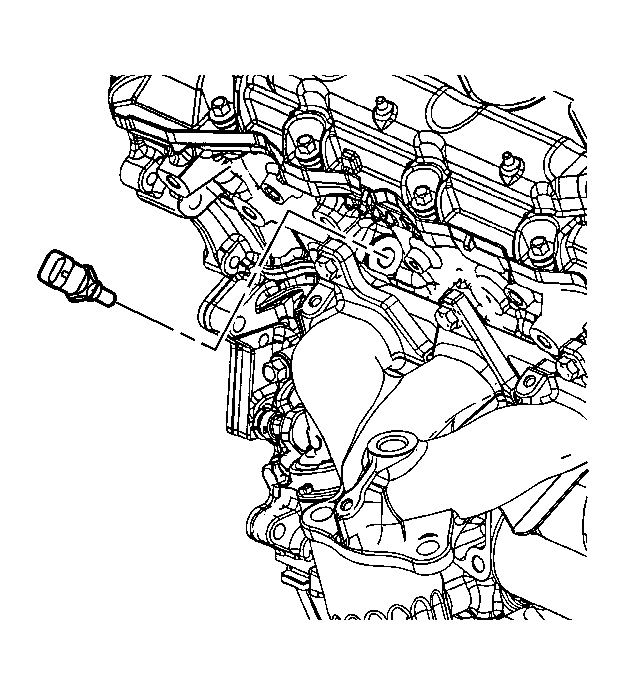

    5. Fig 2: Engine Coolant Temperature Sensor
    GM1866807Courtesy of GENERAL MOTORS CORP.
  5. Install the engine coolant temperature (ECT) sensor and tighten to 30 N.m (22 lb ft).

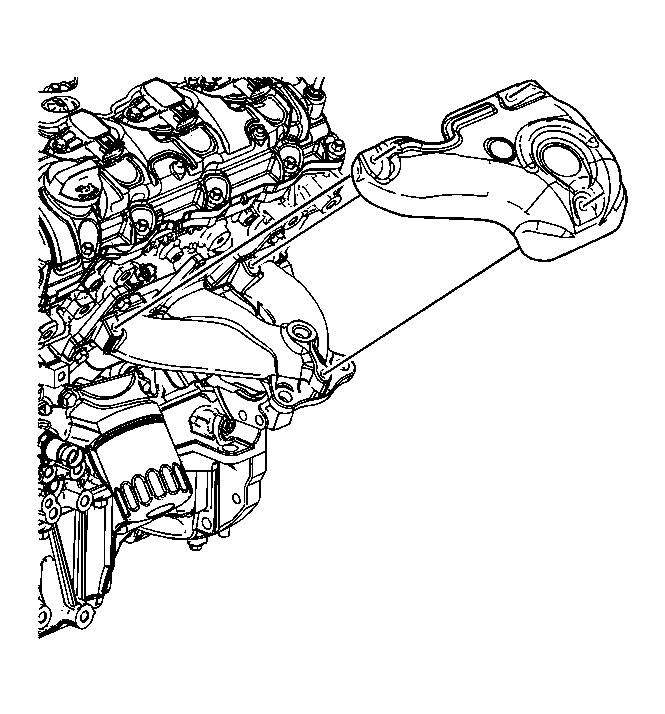

    6. Fig 3: Left Exhaust Manifold Heat Shield
    GM1938702Courtesy of GENERAL MOTORS CORP.
  6. Place the left exhaust manifold heat shield in position.

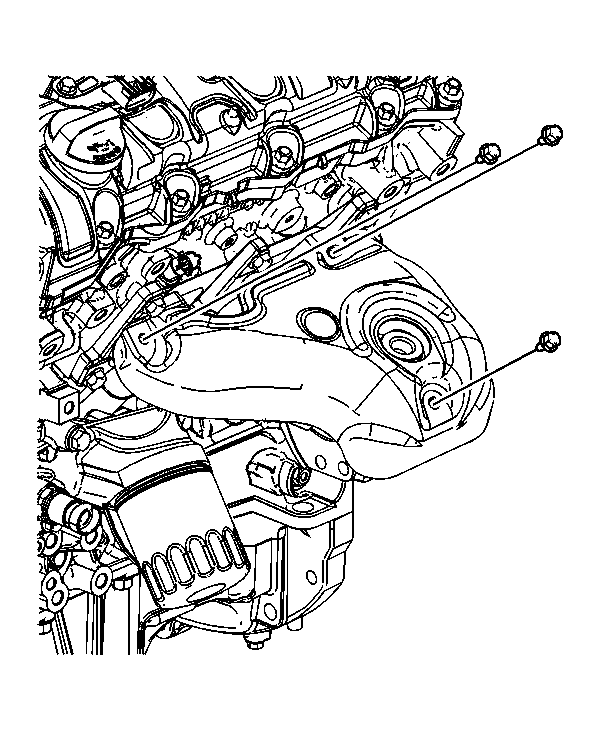

    7. Fig 4: Left Exhaust Manifold Heat Shield Bolts
    GM1938706Courtesy of GENERAL MOTORS CORP.
  7. Install the left exhaust manifold heat shield bolts and tighten to 10 N.m (89 lb in).

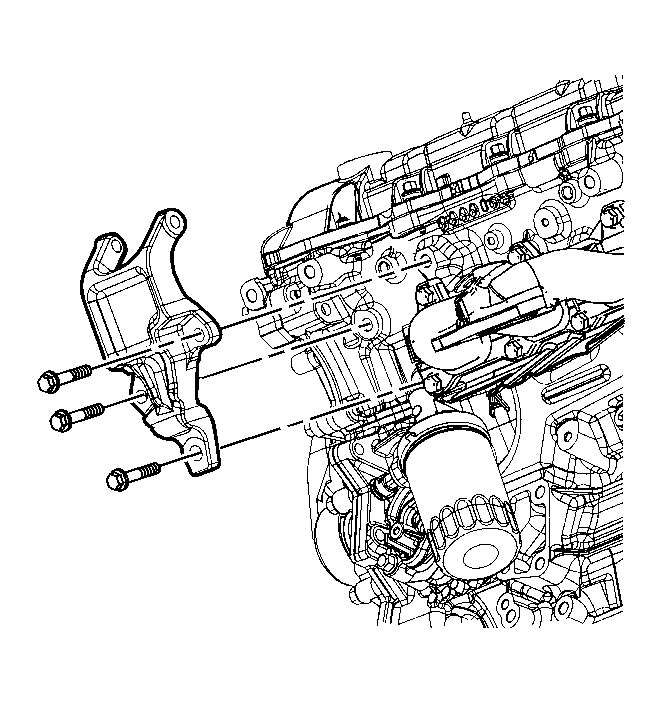

    8. Fig 5: Left Torque Strut Bracket
    GM1866805Courtesy of GENERAL MOTORS CORP.
  8. Install the left torque strut bracket.
  9. Install the left torque strut bracket bolts and tighten to 50 N.m (37 lb ft).
