Camshaft Cover Installation - Right Side: Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Spark Plug Tubes
    GM1836418Courtesy of GENERAL MOTORS CORP.
  1. Install the EN 46101:  guide onto the spark plug tubes of the right cylinder head.
    2. Fig 2: View Of Right Camshaft Cover Bolt Grommets
    GM1836419Courtesy of GENERAL MOTORS CORP.
  2. Install the NEW camshaft cover bolt grommets prior to installing the camshaft cover bolts.
  3. Wipe the camshaft cover sealing surface on the right cylinder head with a clean, lint-free cloth.
    4. Fig 3: Identifying Engine Front Cover Split Lines
    GM1836422Courtesy of GENERAL MOTORS CORP.
  4. Place a bead 8 mm (0.3150 in) in diameter by 4 mm (0.1575 in) in height of RTV sealant, GM P/N 12378521 (Canadian P/N 88901148) or equivalent, on the engine front cover split lines (1).
    5. Fig 4: View Of Right Camshaft Cover
    GM1836426Courtesy of GENERAL MOTORS CORP.
  5. Place the right camshaft cover into position onto the right cylinder head.

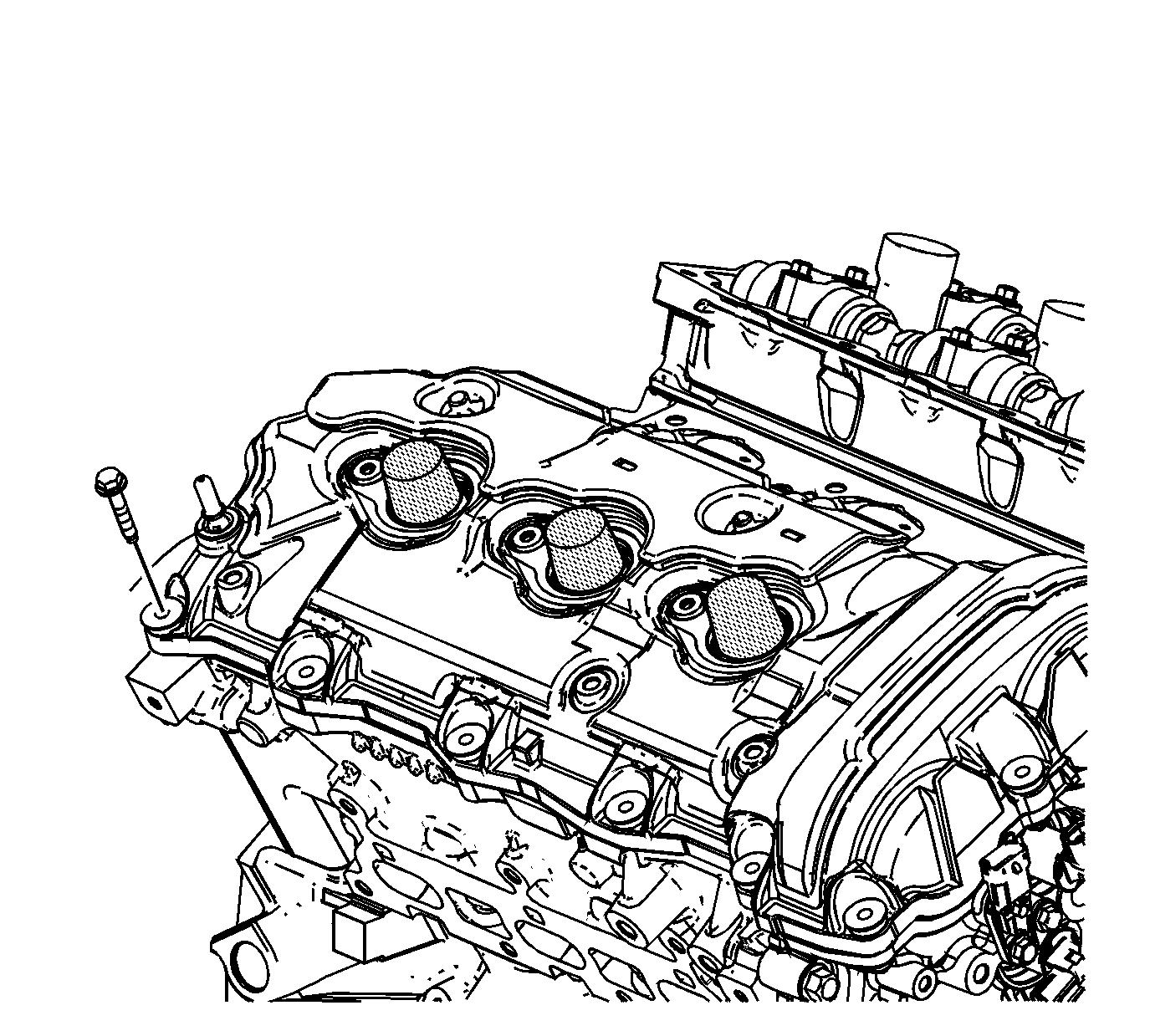

    6. Fig 5: View Of Right Camshaft Cover Bolts
    GM1864544Courtesy of GENERAL MOTORS CORP.
  6. Loosely install the right camshaft cover bolts.

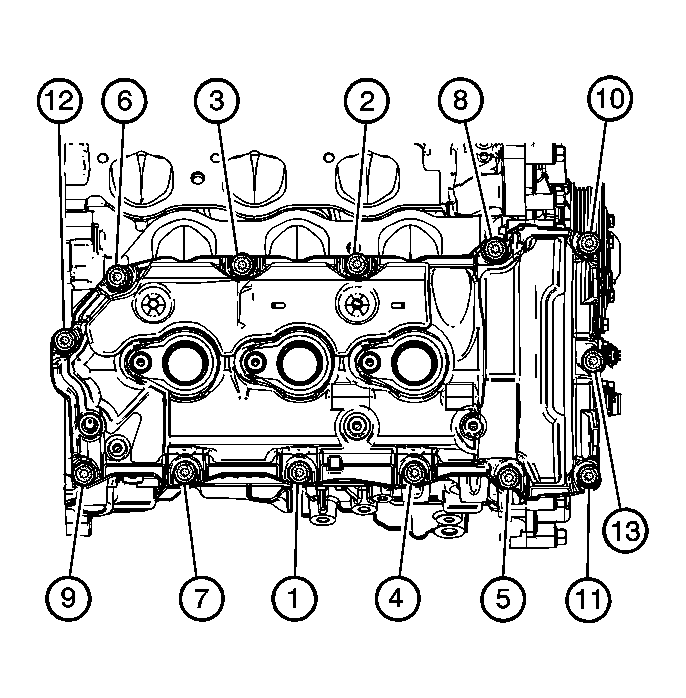

    7. Fig 6: View Of Right Camshaft Cover (Bolt Tightening Sequence)
    GM1864545Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  7. Tighten the right camshaft cover bolts in the sequence shown and tighten to 10 N.m (89 lb in).

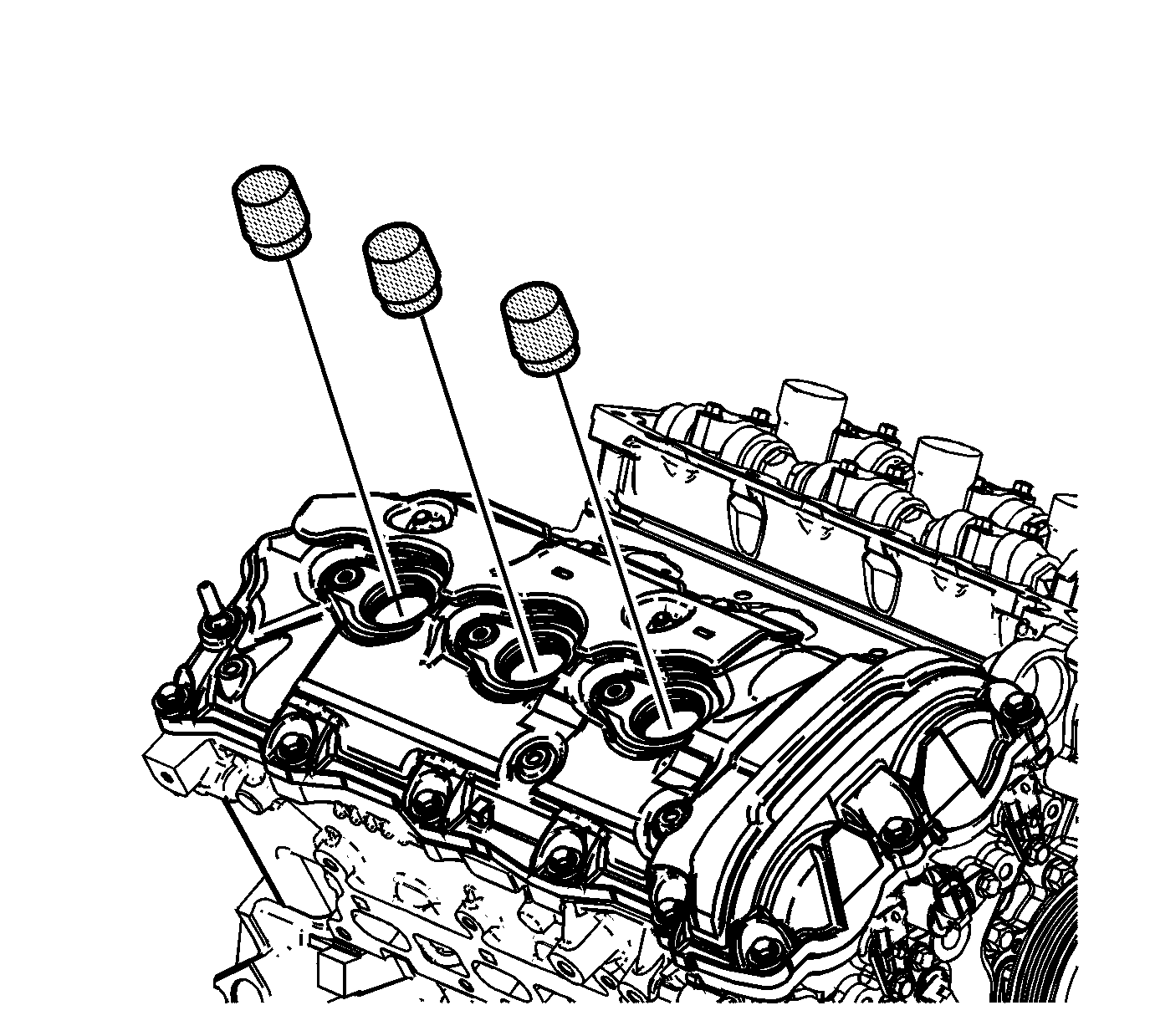

    8. Fig 7: View Of Spark Plug Tubes On Right Cylinder Head
    GM1864548Courtesy of GENERAL MOTORS CORP.
  8. Remove the EN 46101:  guide from the spark plug tubes of the right cylinder head.

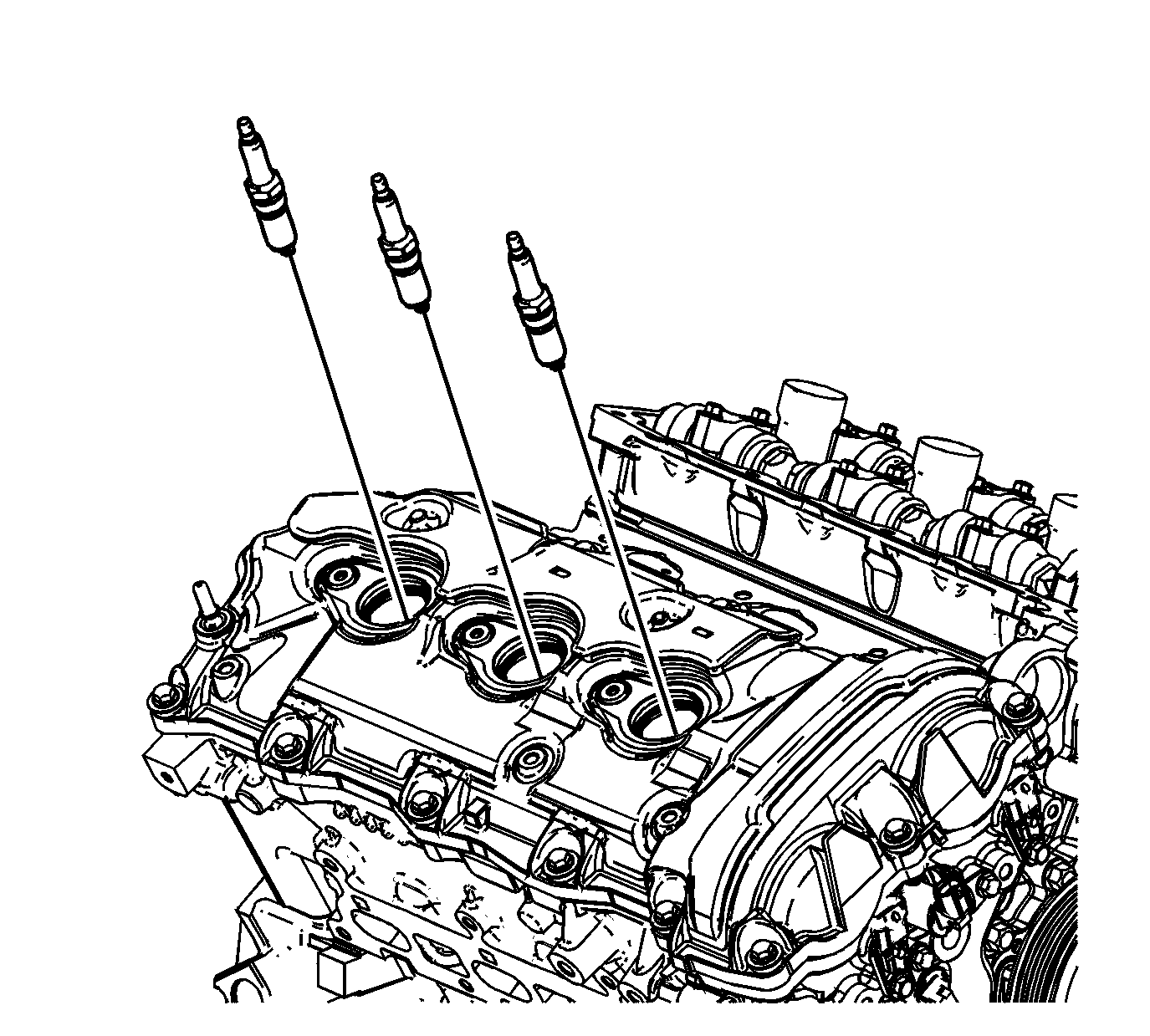

    9. Fig 8: View Of Spark Plugs In Right Cylinder Head
    GM1864427Courtesy of GENERAL MOTORS CORP.
  9. Install the NEW spark plugs into the right cylinder head and tighten to 20 N.m (15 lb ft).

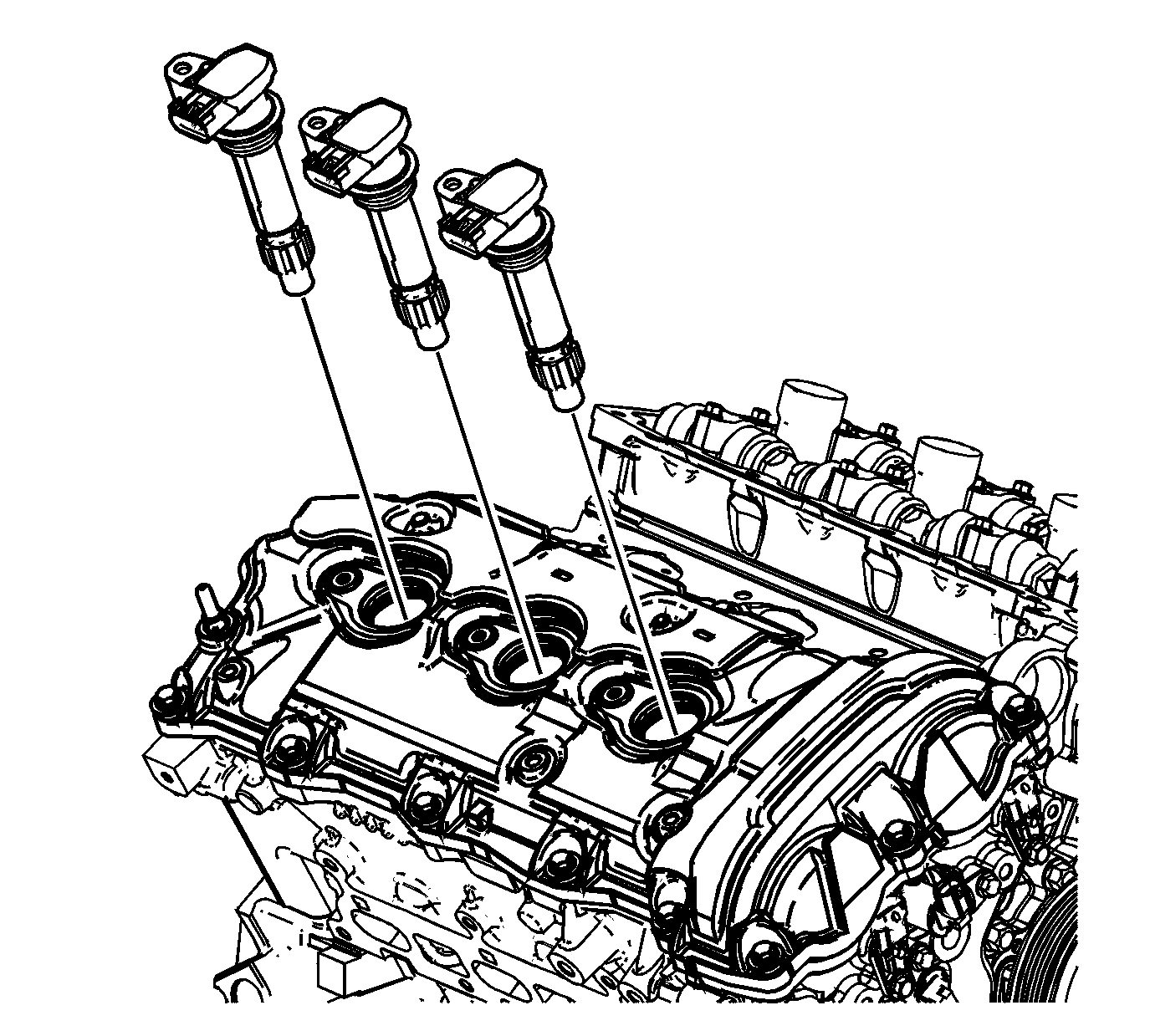

    10. Fig 9: View Of Ignition Coils
    GM1864424Courtesy of GENERAL MOTORS CORP.
  10. Install the ignition coils.

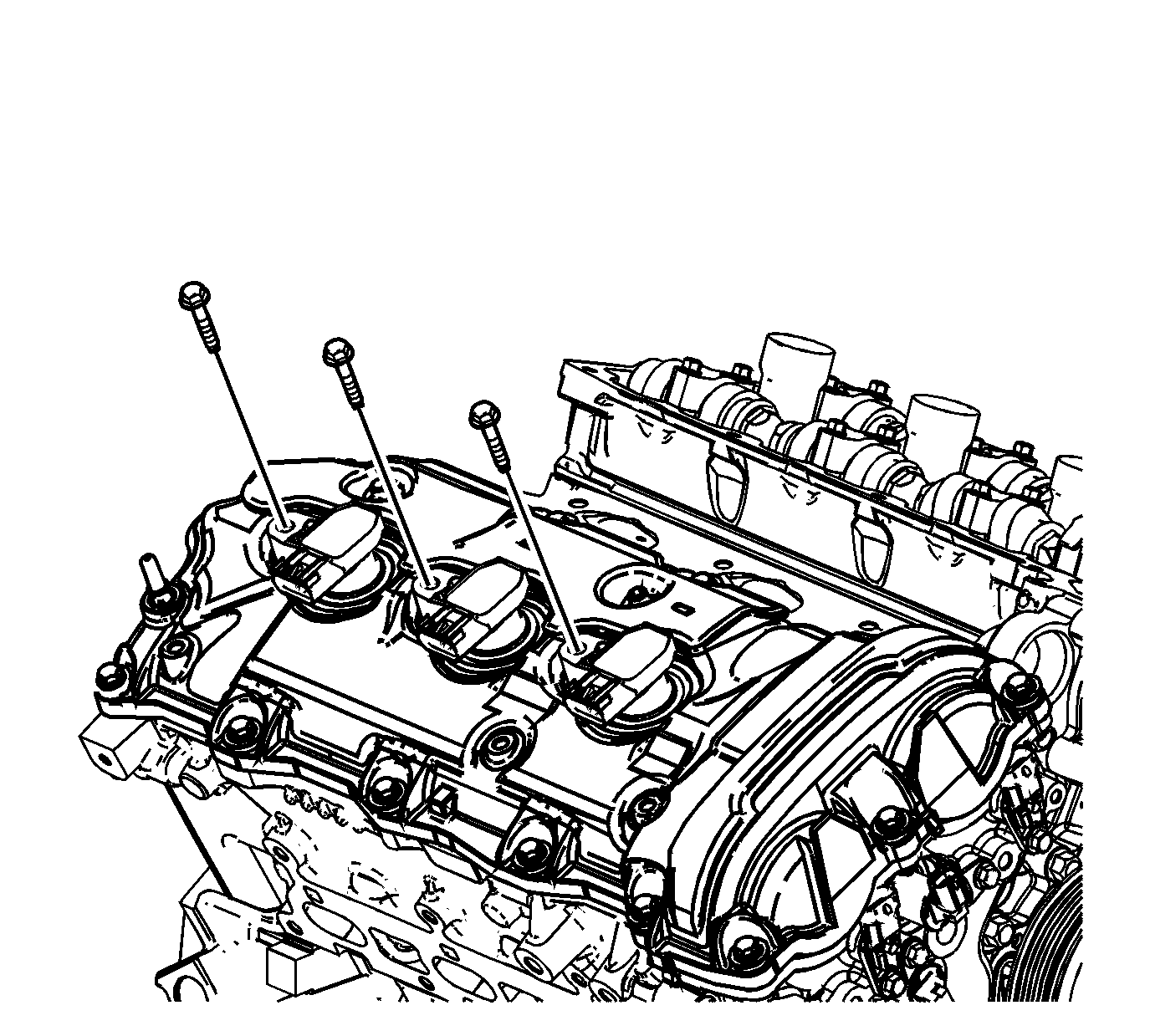

    11. Fig 10: View Of Ignition Coil Bolts
    GM1864421Courtesy of GENERAL MOTORS CORP.
  11. Install the ignition coil bolts and tighten to 10 N.m (89 lb in).
