X260 Inflatable Restraint I/P Module Jumper Harness to Body Harness (SIR)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS CORP.

Courtesy of GENERAL MOTORS CORP.

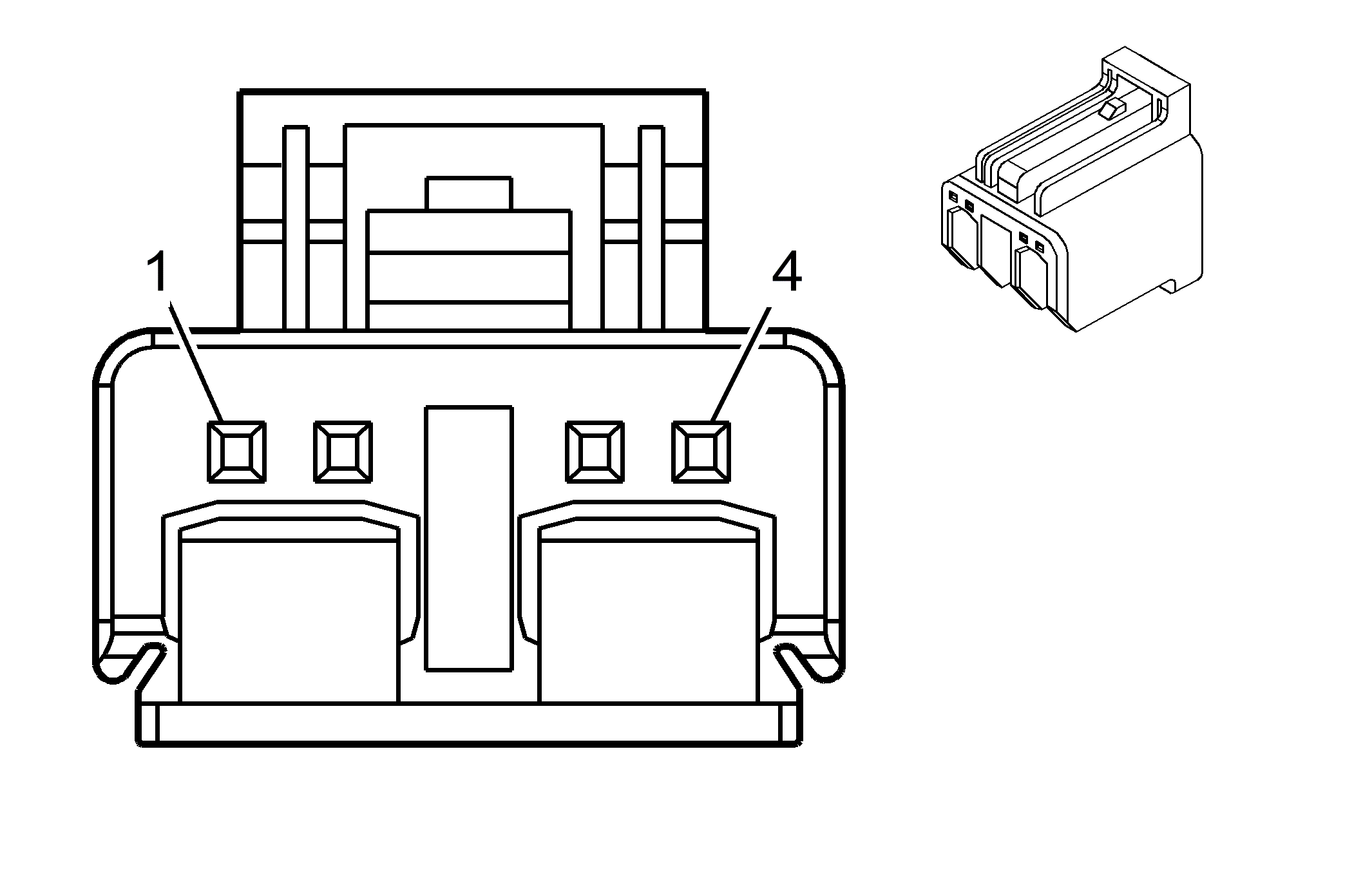

Connector Part Information OEM: 13579293 Service: See Catalog Description: 4-Way F (YE)	Connector Part Information OEM: 13592114 Service: 19178177 Description: 4-Way M (YE)
Terminal Part Information Terminal/Tray: 1411560-2/25 Core/Insulation Crimp: E/C Release Tool/Test Probe: 12094429/J-35616-64B (L-BU)	Terminal Part Information Terminal/Tray: See Terminal Repair Kit Core/Insulation Crimp: See Terminal Repair Kit Release Tool/Test Probe: See Terminal Repair Kit

X260 Inflatable Restraint I/P Module Jumper Harness to Body Harness (SIR)

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	0.5 GY	3027	I/P Module - Stage 2 - High Control	1	0.5 GY	3027	I/P Module - Stage 2 - High Control
2	0.5 PU	3026	I/P Module - Stage 2 - Low Control	2	0.5 PU	3026	I/P Module - Stage 2 - Low Control
3	0.5 YE	3025	I/P Module - Stage 1 - High Control	3	0.5 YE	3025	I/P Module - Stage 1 - High Control
4	0.5 OG	3024	I/P Module - Stage 1 - Low Control	4	0.5 OG	3024	I/P Module - Stage 1 - Low Control
