Thread Repair Specifications

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Left Cylinder Head Camshaft Cover Face (LY7)
GM915922Courtesy of GENERAL MOTORS CORP.
Left Cylinder Head Camshaft Cover Face (LY7)

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 22.5 0.8858 18.0 0.7087
2 M6 x 1.0 201 202 N/A 203 204 205 THRU THRU
3 M6 x 1.0 701 N/A N/A 203 204 205 28.5 1.1220 24.0 0.9449
4 M20 x 1.5 715 716 N/A 717 718 719 25.0 0.9842 17.0 0.6693

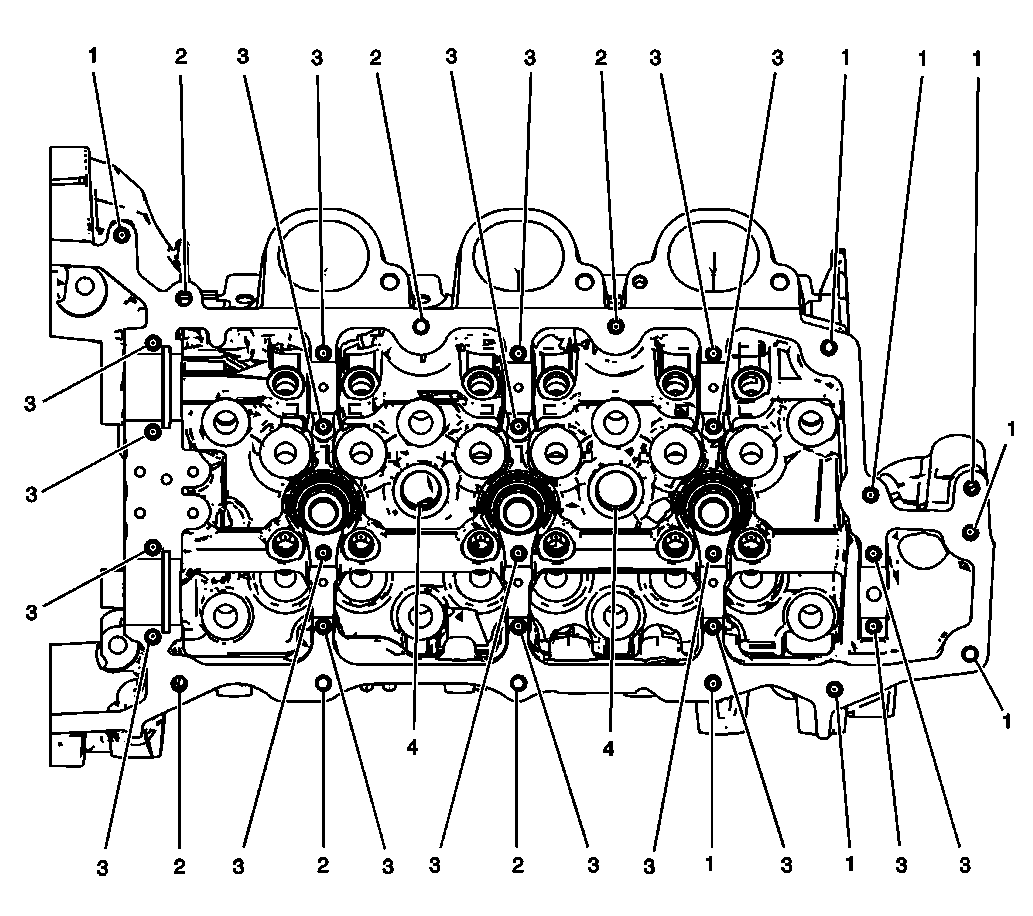

Fig 2: Left Cylinder Head Camshaft Cover Face (LCS)
GM2091250Courtesy of GENERAL MOTORS CORP.
Left Cylinder Head Camshaft Cover Face (LCS)

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 22.5 0.8858 18.0 0.7087
2 M6 x 1.0 201 202 N/A 203 204 205 THRU THRU
3 M6 x 1.0 701 N/A N/A 203 204 205 28.5 1.1220 24.0 0.9449
4 M20 x 1.5 715 716 N/A 717 718 719 25.0 0.9842 17.0 0.6693
Fig 3: Left Cylinder Head Front Face
GM915924Courtesy of GENERAL MOTORS CORP.
Left Cylinder Head Front Face

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M8 x 1.25 206 207 N/A 208 209 210 THRU THRU
2 M12 x 1.75 856 857 N/A 858 859 416 40.0 1.5748 32.5 1.2795
3 M8 x 1.25 206 207 N/A 208 209 210 18.0 0.7087 22.5 0.8858
Fig 4: Left Cylinder Head Intake Face
GM915927Courtesy of GENERAL MOTORS CORP.
Left Cylinder Head Intake Face (LY7)

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055

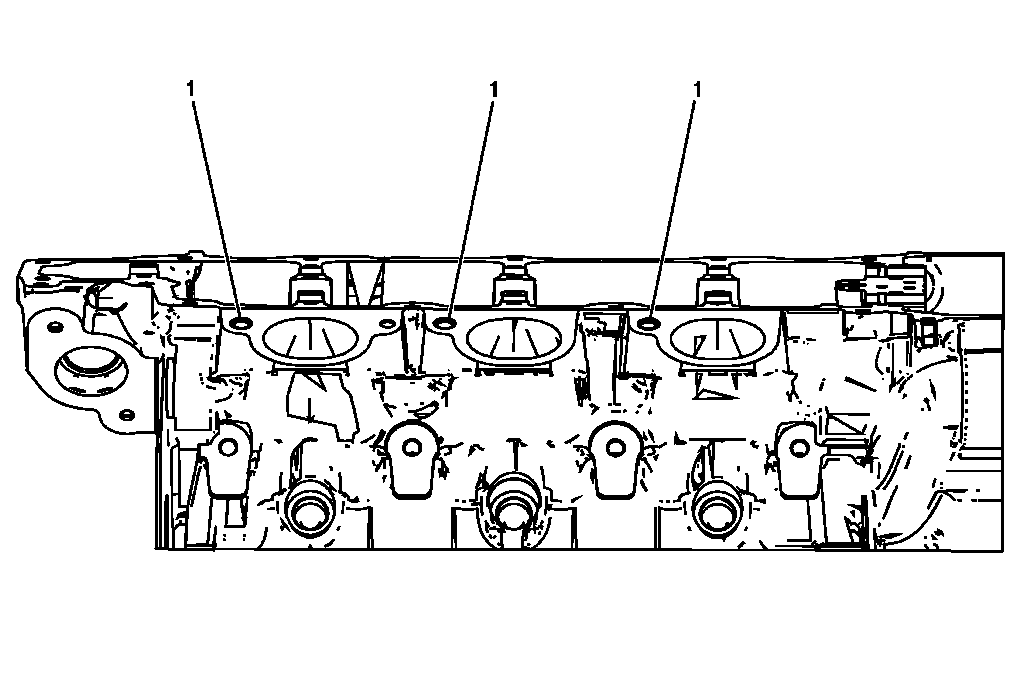

Fig 5: Left Cylinder Head Intake Face (LCS)
GM2091293Courtesy of GENERAL MOTORS CORP.
Left Cylinder Head Intake Face (LCS)

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055
Fig 6: Left Cylinder Head Exhaust Face
GM915932Courtesy of GENERAL MOTORS CORP.
Left Cylinder Head Exhaust Face (LY7)

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M10 x 1.5 211 212 N/A 213 214 215 33.5 1.3189 27.0 1.0630
2 M12 x 1.5 705 706 N/A 707 708 709 27.5 1.0827 13.0 0.5118
3 M6 x 1.0 201 202 N/A 203 204 205 22.5 0.8858 18.0 0.0000
4 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055

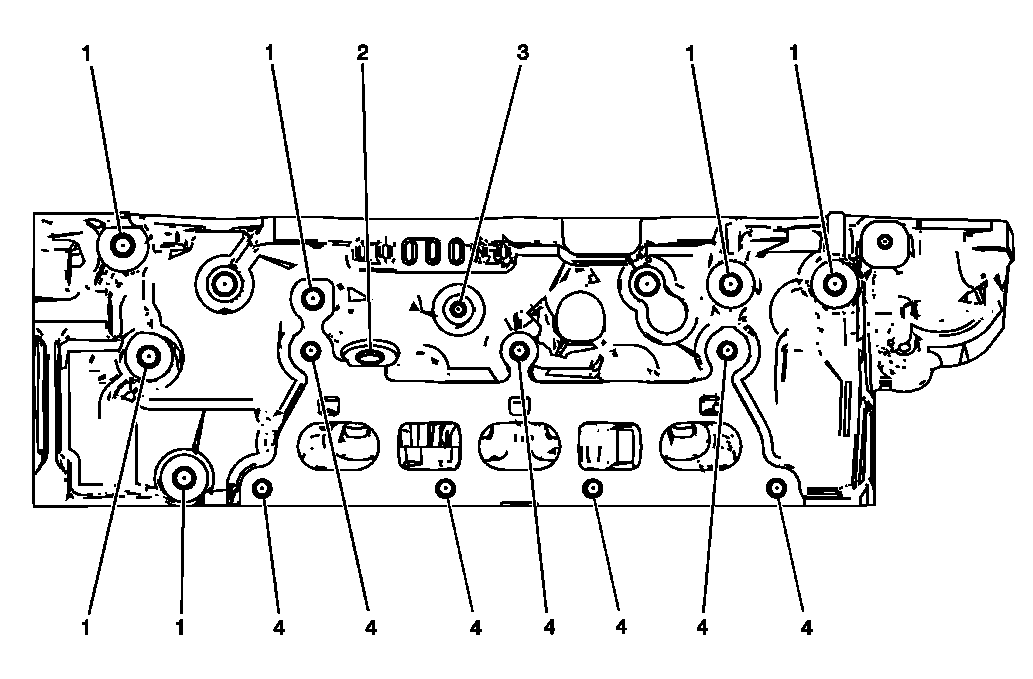

Fig 7: Left Cylinder Head Exhaust Face (LCS)
GM2091299Courtesy of GENERAL MOTORS CORP.
Left Cylinder Head Exhaust Face (LCS)

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M10 x 1.5 211 212 N/A 213 214 215 33.5 1.3189 27.0 1.0630
2 M12 x 1.5 705 706 N/A 707 708 709 27.5 1.0827 13.0 0.5118
3 M6 x 1.0 201 202 N/A 203 204 205 22.5 0.8858 18.0 0.0000
4 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055
Fig 8: Left Cylinder Head Rear Face
GM915951Courtesy of GENERAL MOTORS CORP.
Left Cylinder Head Rear Face (LY7)

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M10 x 1.5 211 212 N/A 213 214 215 33.5 1.3189 27.0 1.0630
Fig 9: Left Cylinder Head Rear Face (LCS)
GM2091310Courtesy of GENERAL MOTORS CORP.
Left Cylinder Head Rear Face (LCS)

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M10 x 1.5 211 212 N/A 213 214 215 33.5 1.3189 27.0 1.0630
Fig 10: Right Cylinder Head Camshaft Cover Face
GM915963Courtesy of GENERAL MOTORS CORP.
Right Cylinder Head Camshaft Cover Face

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 THRU THRU
2 M6 x 1.0 701 N/A N/A 203 204 205 28.5 1.1220 24.0 0.9449
3 M20 x 1.5 715 716 N/A 717 718 719 25.0 0.9842 17.0 0.6693
4 M6 x 1.0 201 202 N/A 203 204 205 22.5 0.8858 18.0 0.7087
Fig 11: Right Cylinder Head Front Face
GM915968Courtesy of GENERAL MOTORS CORP.
Right Cylinder Head Front Face

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M8 x 1.25 206 207 N/A 208 209 210 THRU THRU
2 M6 x 1.0 201 202 N/A 203 204 205 22.5 0.8880 18.0 0.7087
3 M6 x 1.0 201 202 N/A 203 204 205 THRU THRU
4 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055
5 M12 x 1.75 856 857 N/A 858 859 416 40.0 1.5748 32.5 1.2795
Fig 12: Right Cylinder Head Intake Face
GM915974Courtesy of GENERAL MOTORS CORP.
Right Cylinder Head Intake Face

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055
Fig 13: Right Cylinder Head Exhaust Face
GM915998Courtesy of GENERAL MOTORS CORP.
Right Cylinder Head Exhaust Face

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 22.5 0.8858 18.0 0.0000
2 M10 x 1.5 211 212 N/A 213 214 215 33.5 1.3189 27.0 1.0630
3 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055
Fig 14: Right Cylinder Head Rear Face
GM916091Courtesy of GENERAL MOTORS CORP.
Right Cylinder Head Rear Face

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M10 x 1.5 211 212 N/A 213 214 215 33.5 1.3189 27.0 1.0630

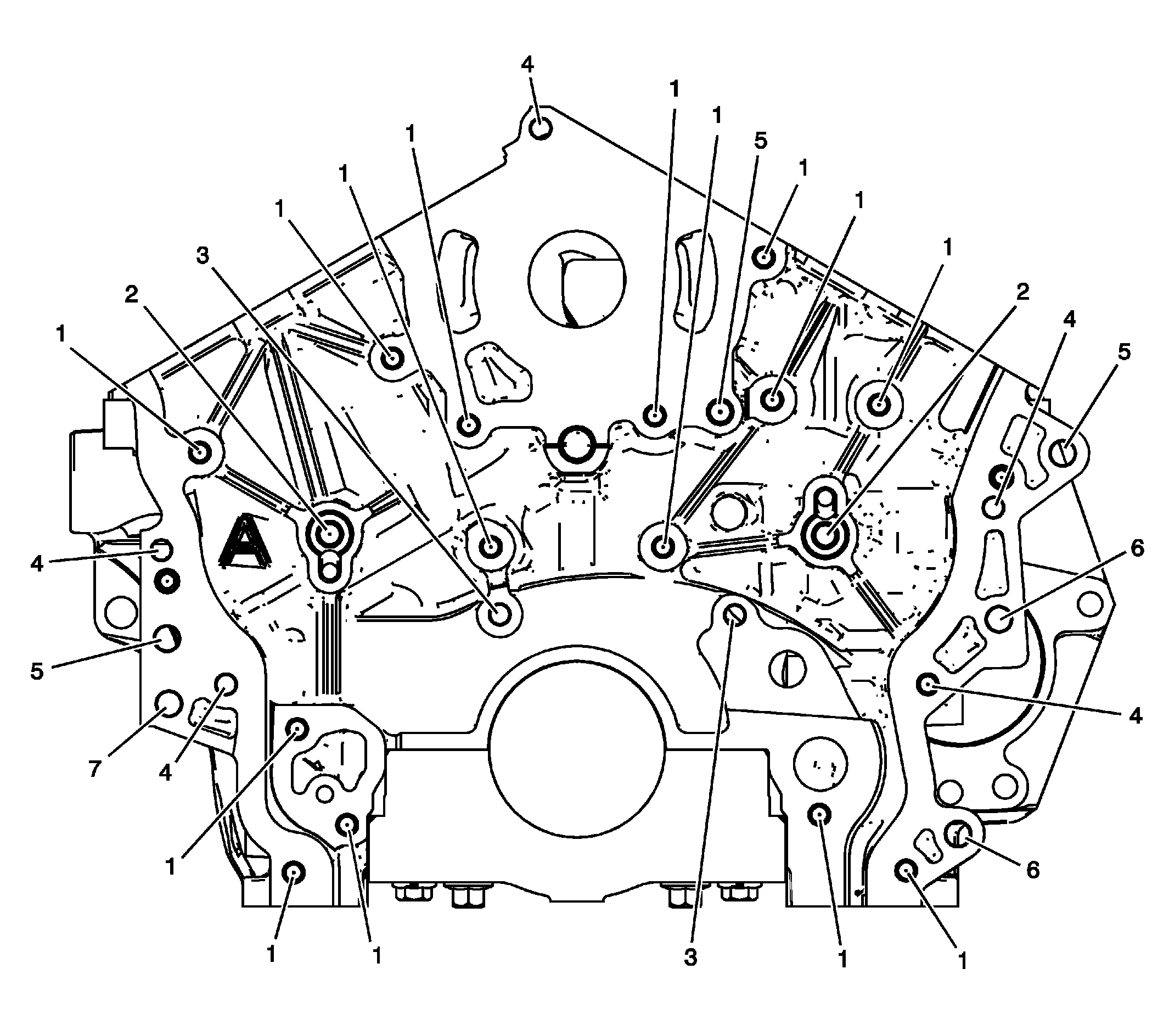

Fig 15: Engine Block Front Component View
GM1855078Courtesy of GENERAL MOTORS CORP.
Engine Block Front

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055
2 M10 x 1.5 211 212 N/A 213 214 215 33.5 1.3189 27.0 1.0630
3 M8 x 1.25 206 207 N/A 208 209 210 THRU 23.0 0.9055
4 M8 x 1.25 206 207 N/A 208 209 210 THRU THRU
5 M10 x 1.5 211 212 N/A 213 214 215 28.0 1.1024 28.0 1.1024
6 M10 x 1.5 211 212 N/A 213 214 215 THRU 20.0 0.7874
7 M10 x 1.5 211 212 N/A 213 214 215 THRU 28.0 1.1024
Fig 16: Engine Block Left Side
GM916127Courtesy of GENERAL MOTORS CORP.
Engine Block Left Side

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055
2 M20 x 1.5 715 716 N/A 717 718 719 30.0 1.1810 20.0 0.7874
3 M10 x 1.5 211 212 N/A 213 214 215 33.5 1.3190 27.0 1.0630
4 M14 x 1.5 409 410 N/A 411 412 735 THRU 15.0 0.5905
5 M8 x 1.25 206 207 N/A 208 209 415 16.5 0.6496 11.0 0.4331

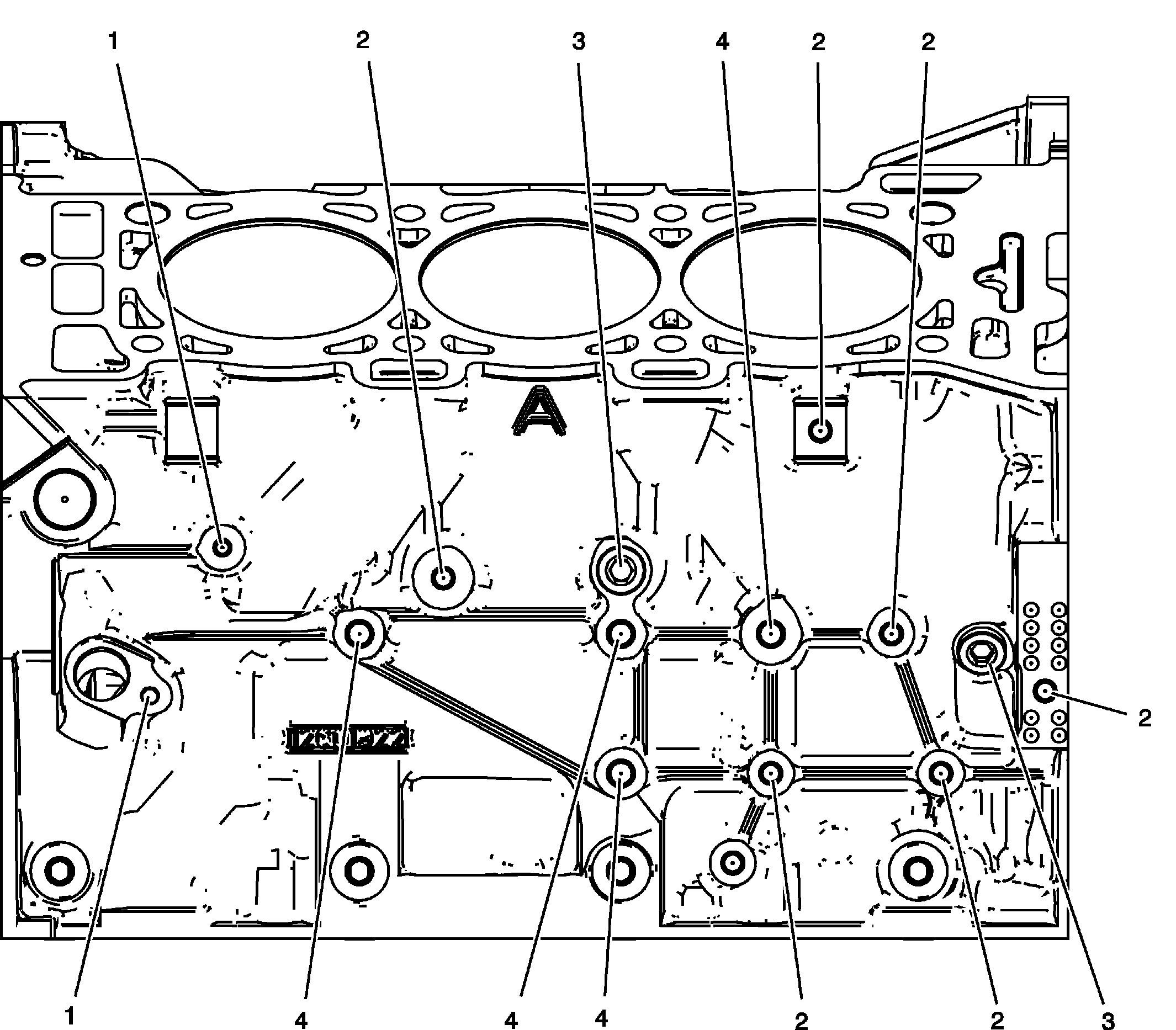

Fig 17: Engine Block Right Side Component View
GM1855079Courtesy of GENERAL MOTORS CORP.
Engine Block Right Side

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 22.5 0.8858 18.0 0.7087
2 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055
3 M14 x 1.5 409 410 N/A 411 412 735 THRU 15.0 0.5905
4 M10 x 1.5 211 212 N/A 213 214 215 33.5 1.3190 27.0 1.0630
Fig 18: Engine Block Rear
GM916134Courtesy of GENERAL MOTORS CORP.
Engine Block Rear

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M10 x 1.5 211 212 N/A 213 214 420 33.5 1.3190 27.0 1.0630
2 M6 x 1.0 201 202 N/A 203 204 205 22.5 0.8858 18.0 0.7087
3 M14 x 1.5 409 410 N/A 411 412 735 THRU 15.0 0.5905
4 M10 x 1.5 211 212 N/A 213 214 216 39.5 1.5551 33.0 1.2992
5 M10 x 1.5 211 212 N/A 213 214 420 THRU THRU
Fig 19: Engine Block Bottom
GM916146Courtesy of GENERAL MOTORS CORP.
Engine Block Bottom

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M10 x 2.0 720 N/A N/A 721 722 104 56.0 2.2047 49.0 1.9291
2 M8 x 1.25 702 N/A N/A 703 704 620 46.0 1.8110 40.5 1.5945
3 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055
4 M6 x 1.0 201 202 N/A 203 204 205 THRU THRU

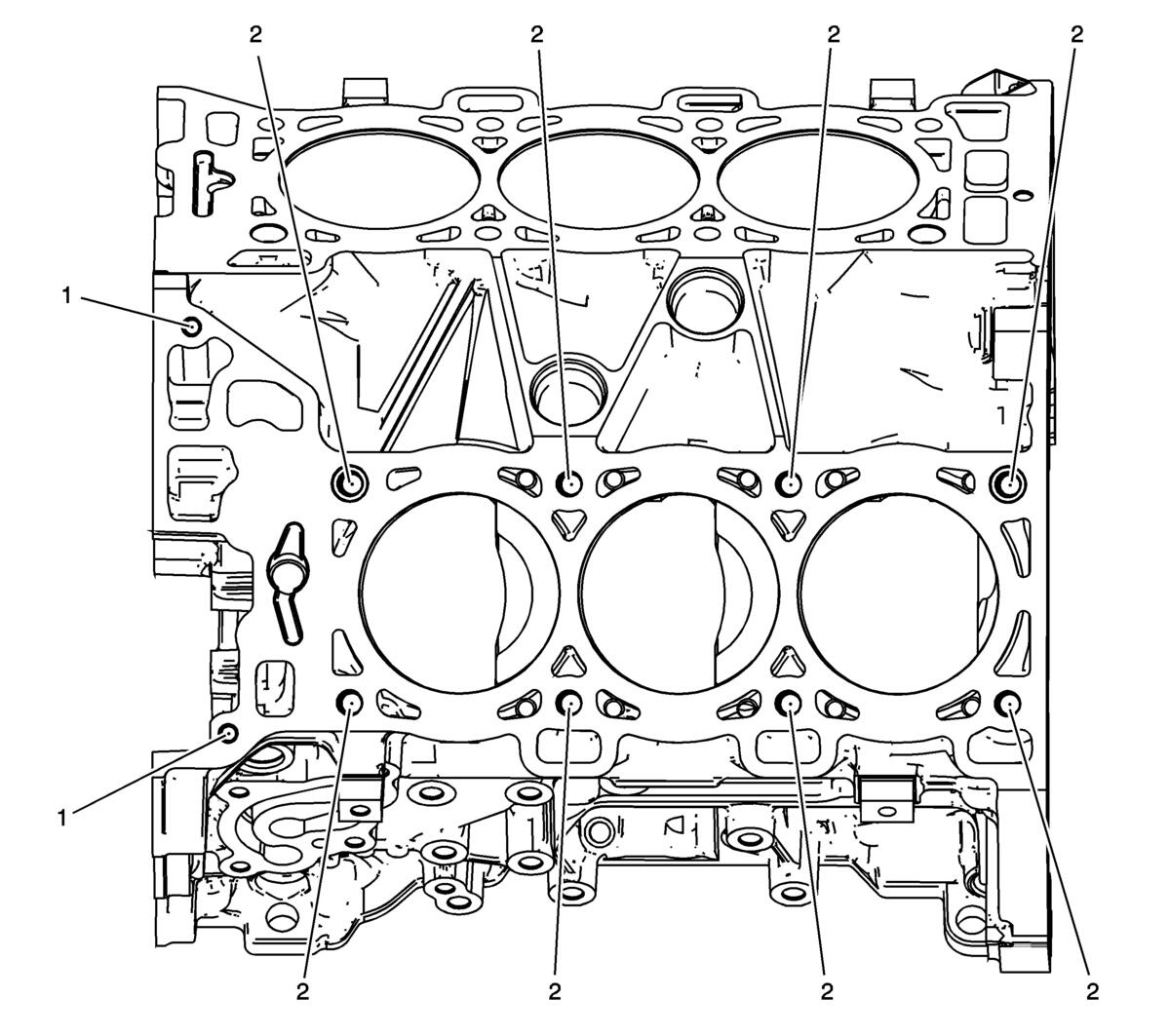

Fig 20: Engine Block Left Deck Face Component View
GM1855096Courtesy of GENERAL MOTORS CORP.
Engine Block Left Deck Face

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055
2 M11 x 2.0 723 N/A N/A 724 725 108 102.5 4.0354 94.0 3.7008

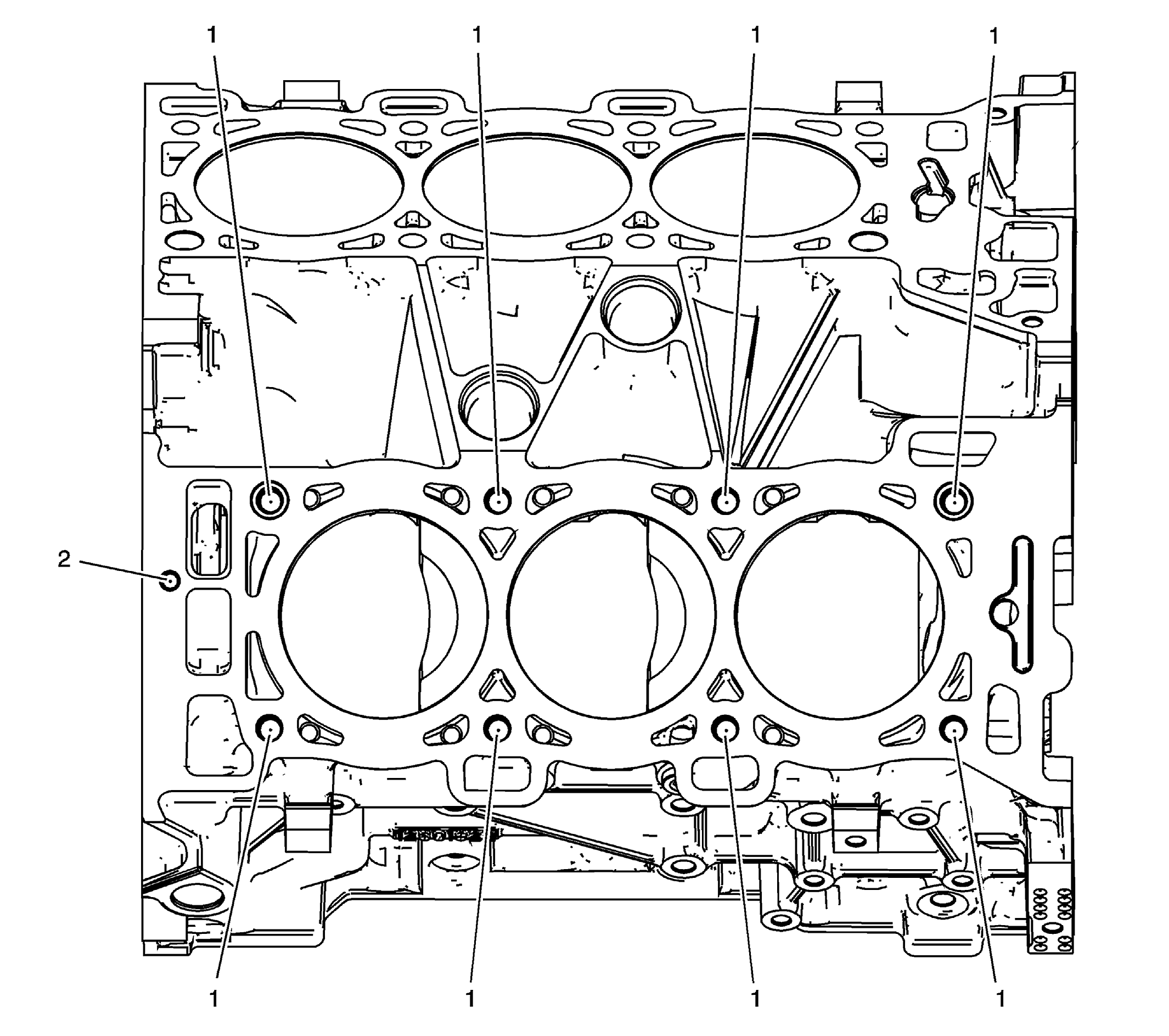

Fig 21: Engine Block Right Deck Face Component View
GM1855099Courtesy of GENERAL MOTORS CORP.
Engine Block Right Deck Face

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M11 x 2.0 723 N/A N/A 724 725 108 102.5 4.0354 94.0 3.7008
2 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055
Fig 22: Engine Front Cover
GM916649Courtesy of GENERAL MOTORS CORP.
Engine Front Cover

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 THRU THRU
2 M6 x 1.0 201 202 N/A 203 204 205 21.5 0.8465 18.0 0.7087
3 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055
4 M10 x 1.5 211 212 N/A 213 214 420 THRU THRU
5 M10 x 1.5 211 212 N/A 213 214 420 33.5 1.3189 27.0 1.0630
6 M8 x 1.25 206 207 N/A 208 209 210 27.5 1.0827 23.0 0.9055

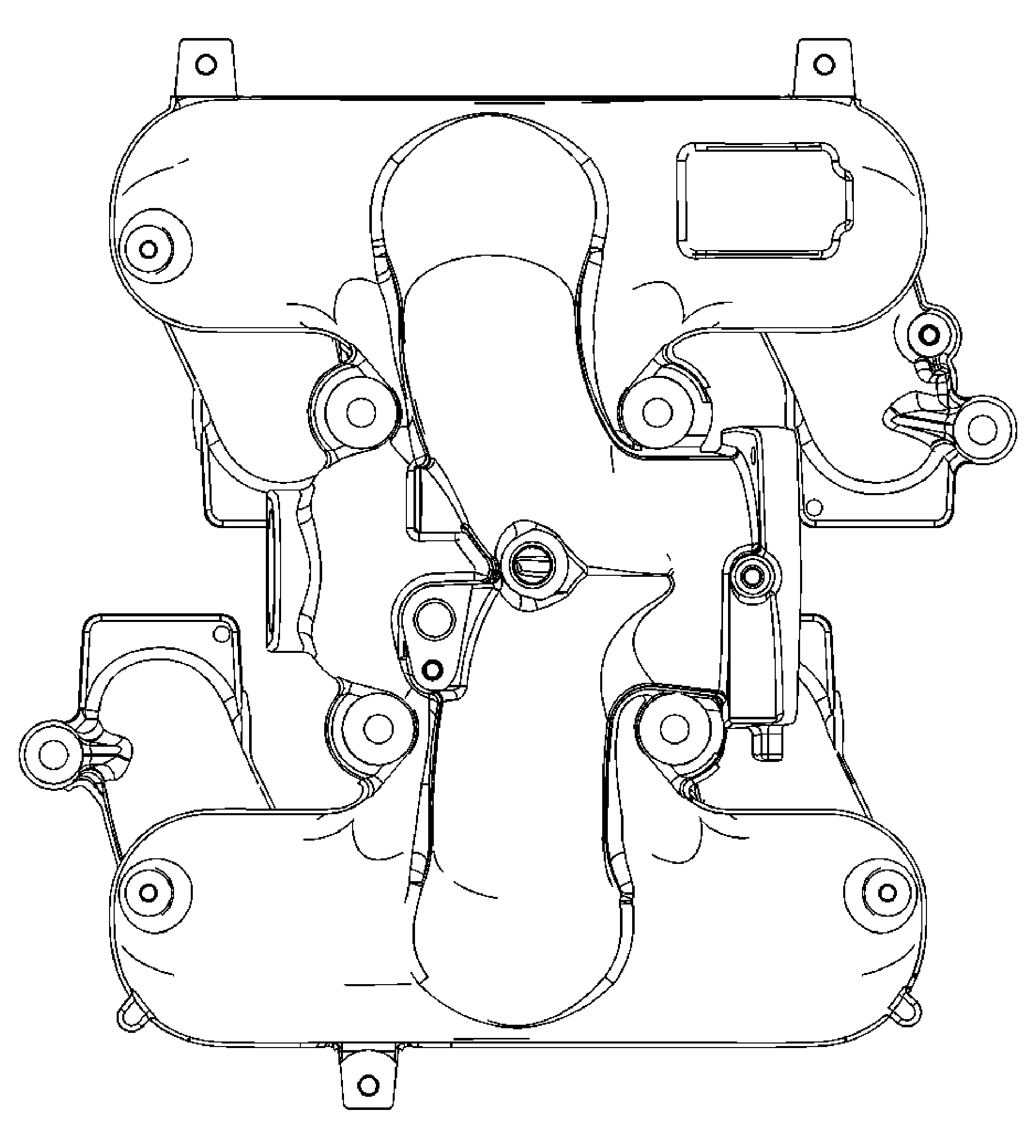

Fig 23: Upper Intake Manifold - Top
GM1866788Courtesy of GENERAL MOTORS CORP.
Upper Intake Manifold - Top (LY7)

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 THRU THRU

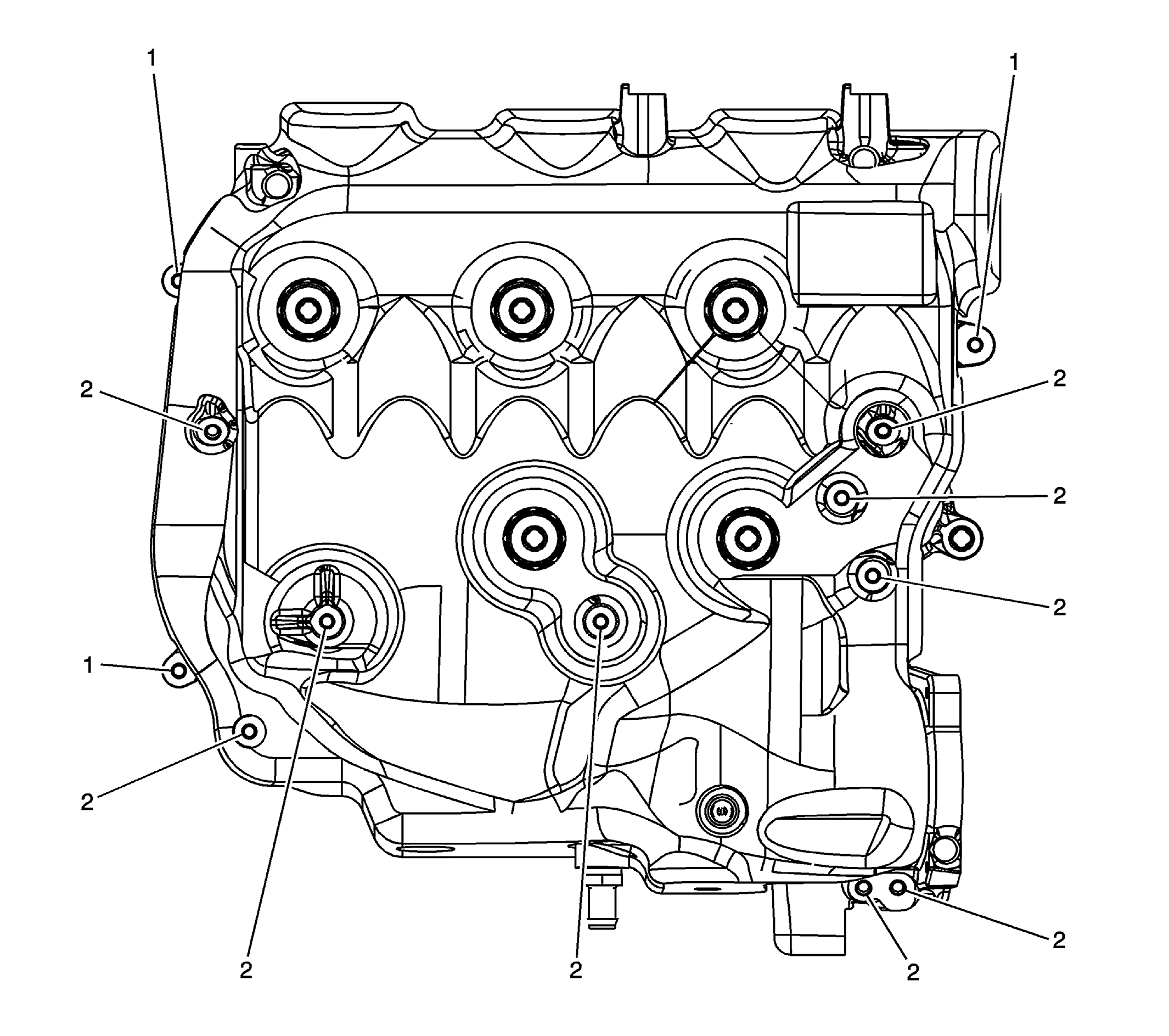

Fig 24: Upper Intake Manifold - Top (LCS)
GM2091313Courtesy of GENERAL MOTORS CORP.
Upper Intake Manifold - Top (LCS)

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 THRU THRU

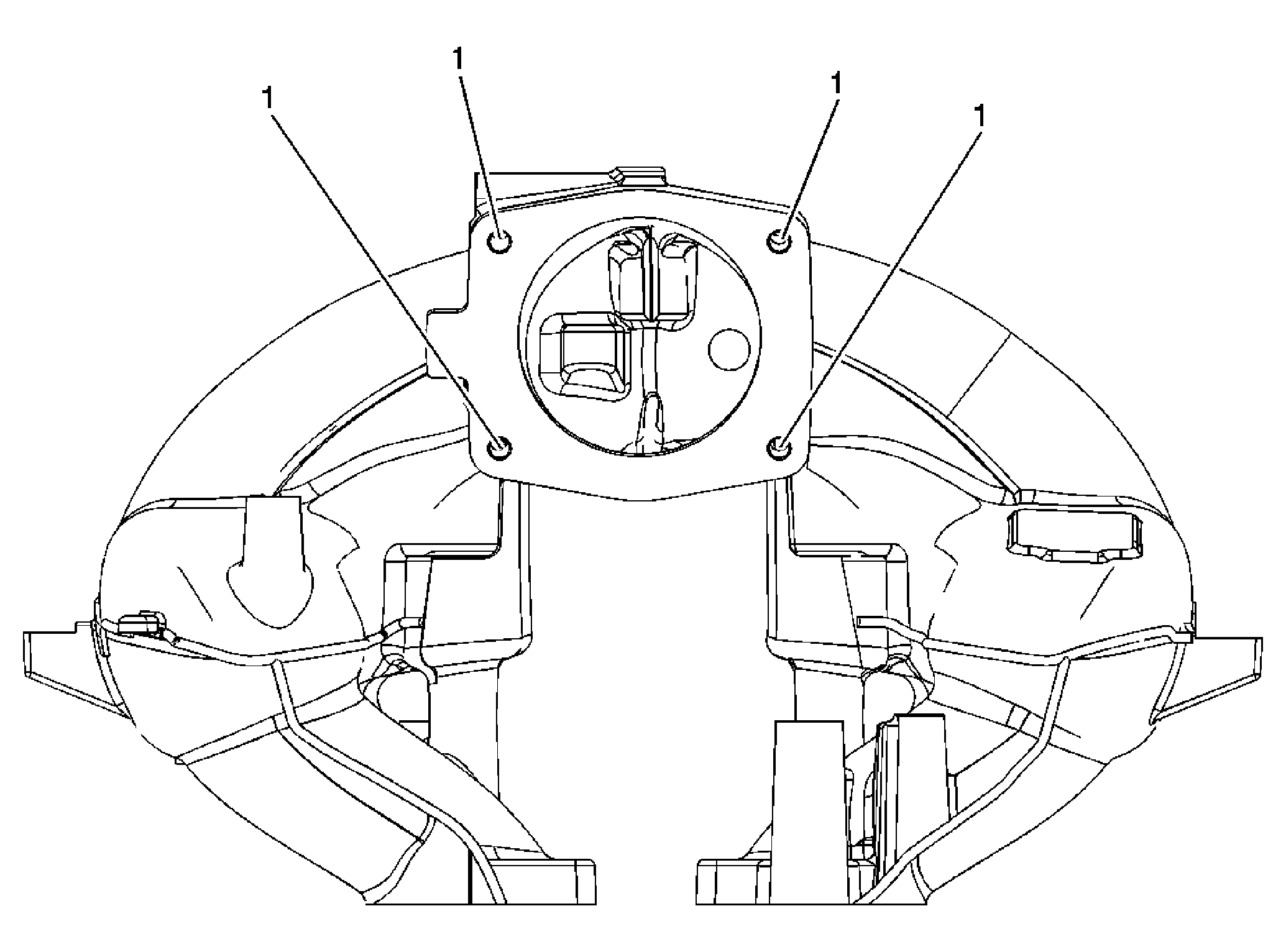

Fig 25: Upper Intake Manifold - Front
GM1866791Courtesy of GENERAL MOTORS CORP.
Upper Intake Manifold - Front (LY7)

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 THRU THRU

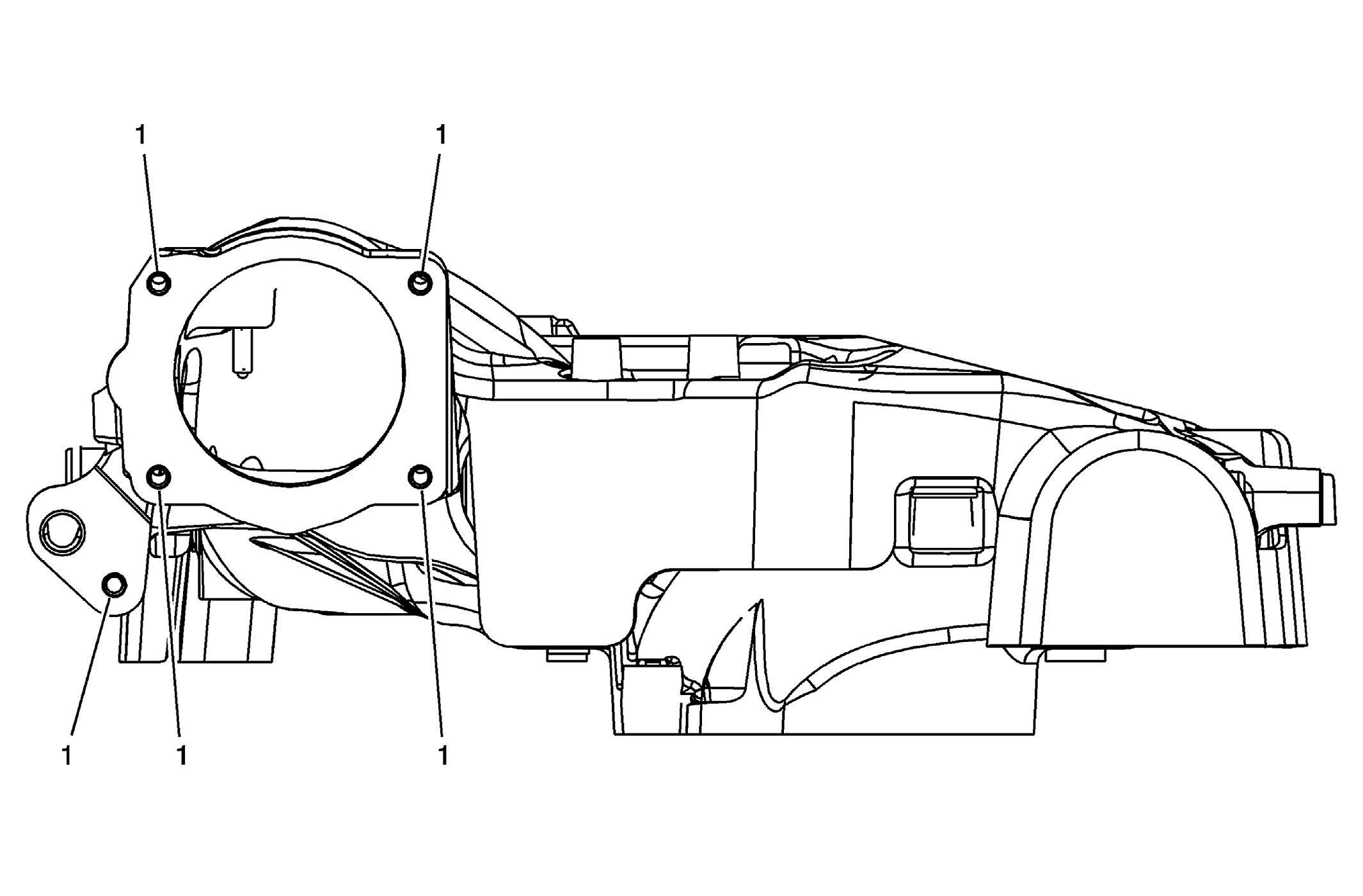

Fig 26: Upper Intake Manifold - Front (LCS)
GM2091319Courtesy of GENERAL MOTORS CORP.
Upper Intake Manifold - Front (LCS)

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 THRU THRU

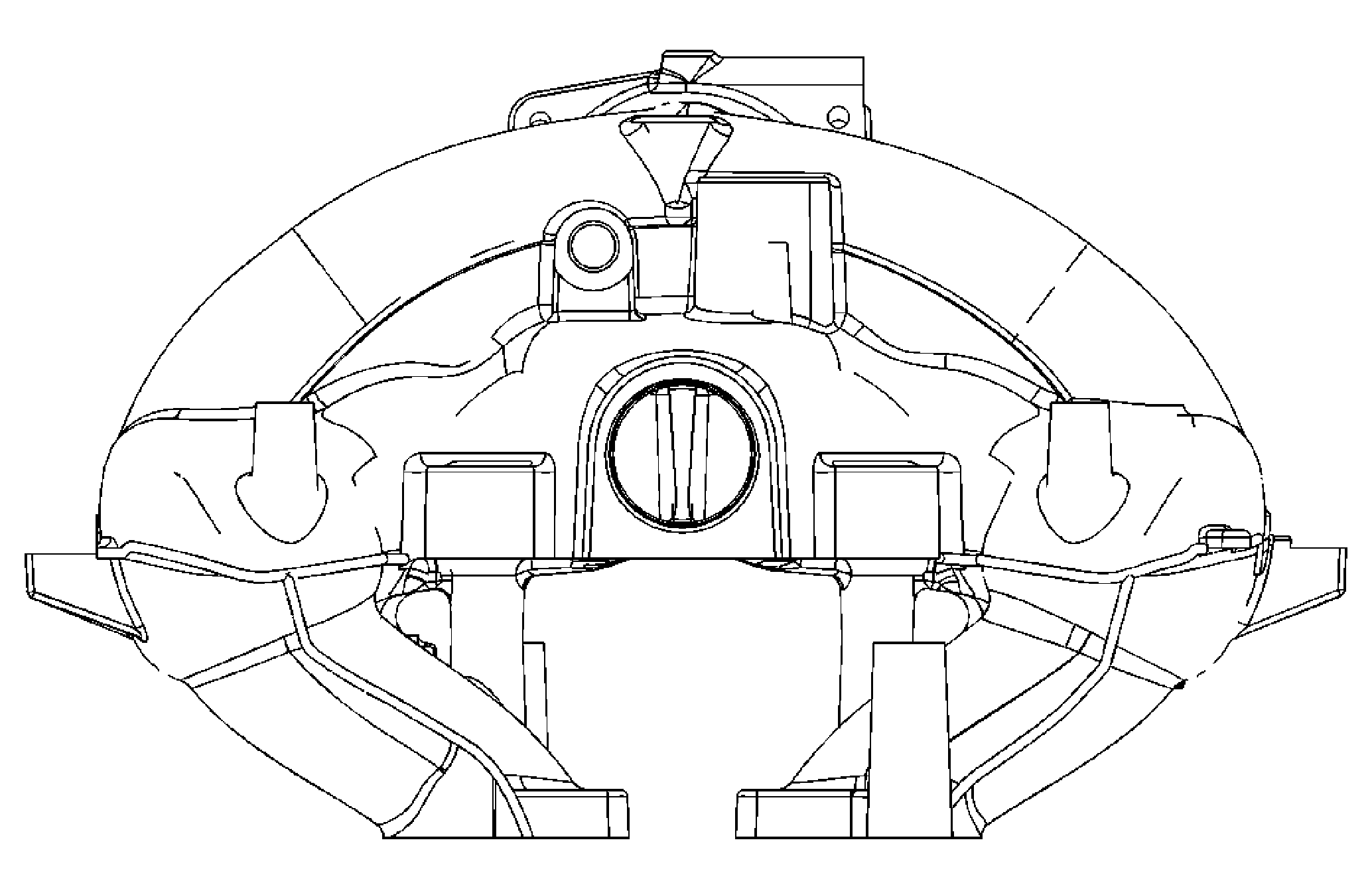

Fig 27: Upper Intake Manifold - Rear
GM1866792Courtesy of GENERAL MOTORS CORP.
Upper Intake Manifold - Rear

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 THRU THRU

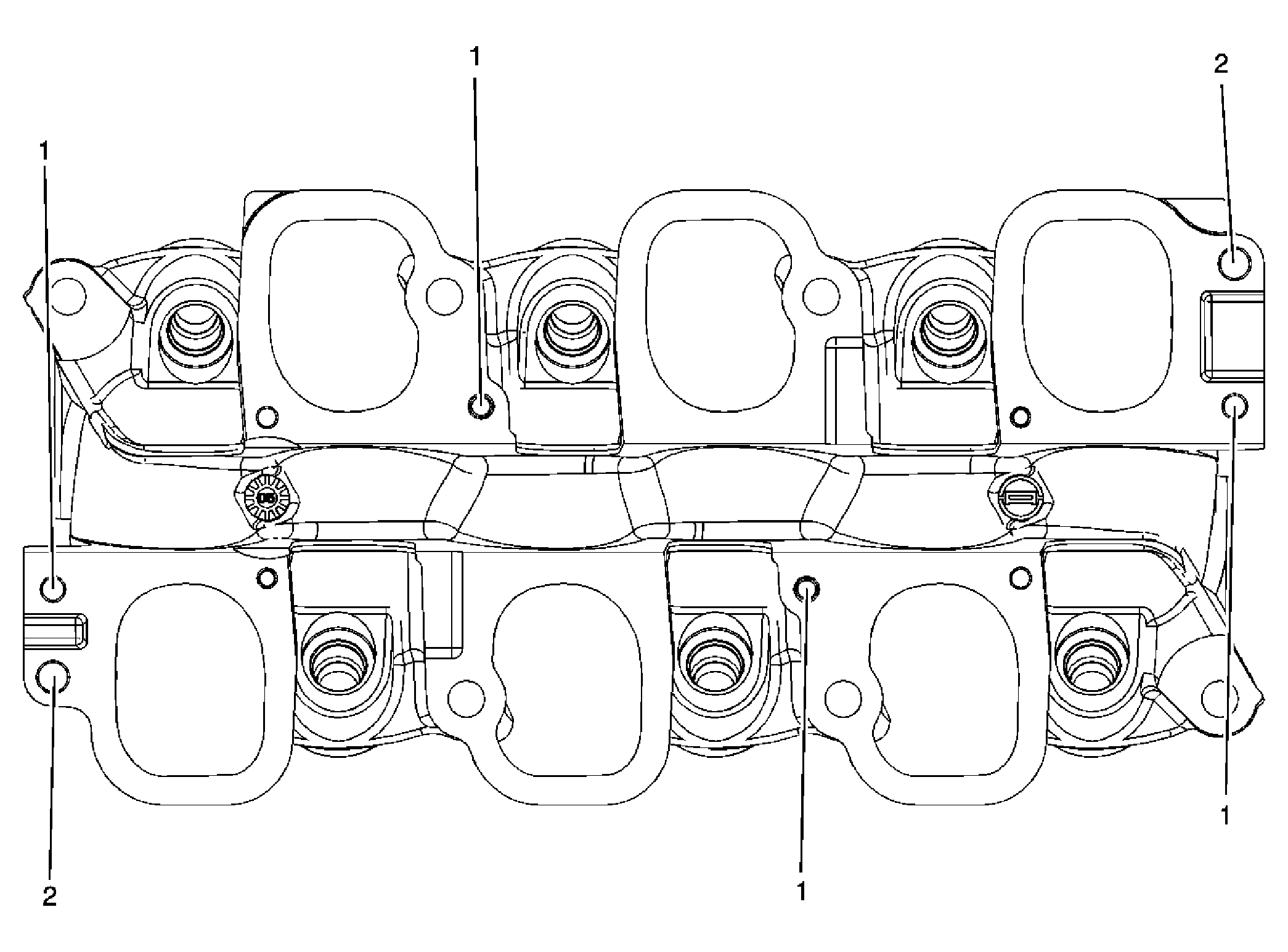

Fig 28: Lower Intake Manifold - Top
GM1866793Courtesy of GENERAL MOTORS CORP.
Lower Intake Manifold - Top

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 THRU THRU
2 M8 x 1.25 206 207 N/A 208 209 210 THRU THRU

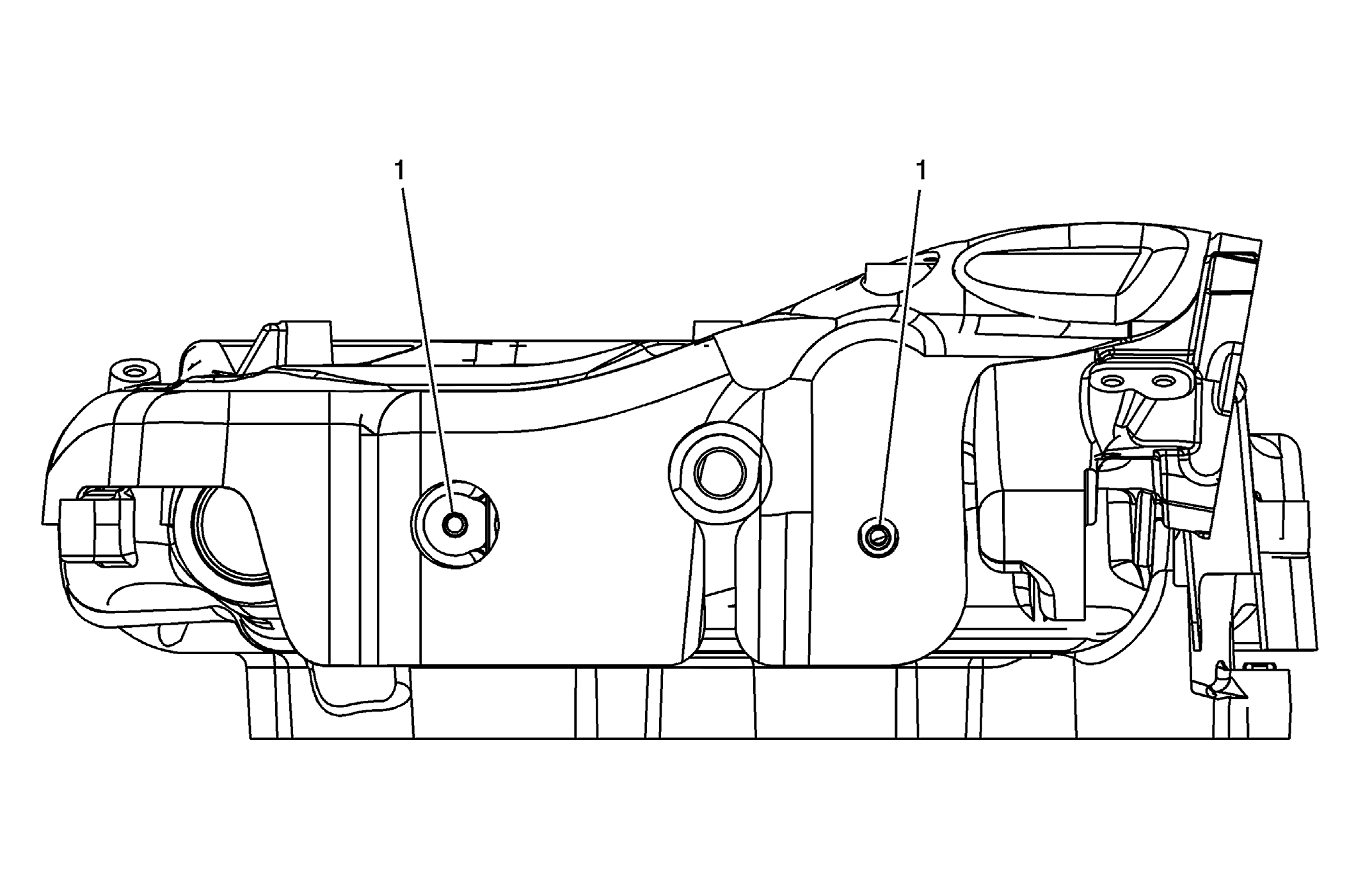

Fig 29: Intake Manifold - Left (LCS)
GM2091334Courtesy of GENERAL MOTORS CORP.
Intake Manifold - Left (LCS)

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 21.5 0.8465 18.0 0.7087

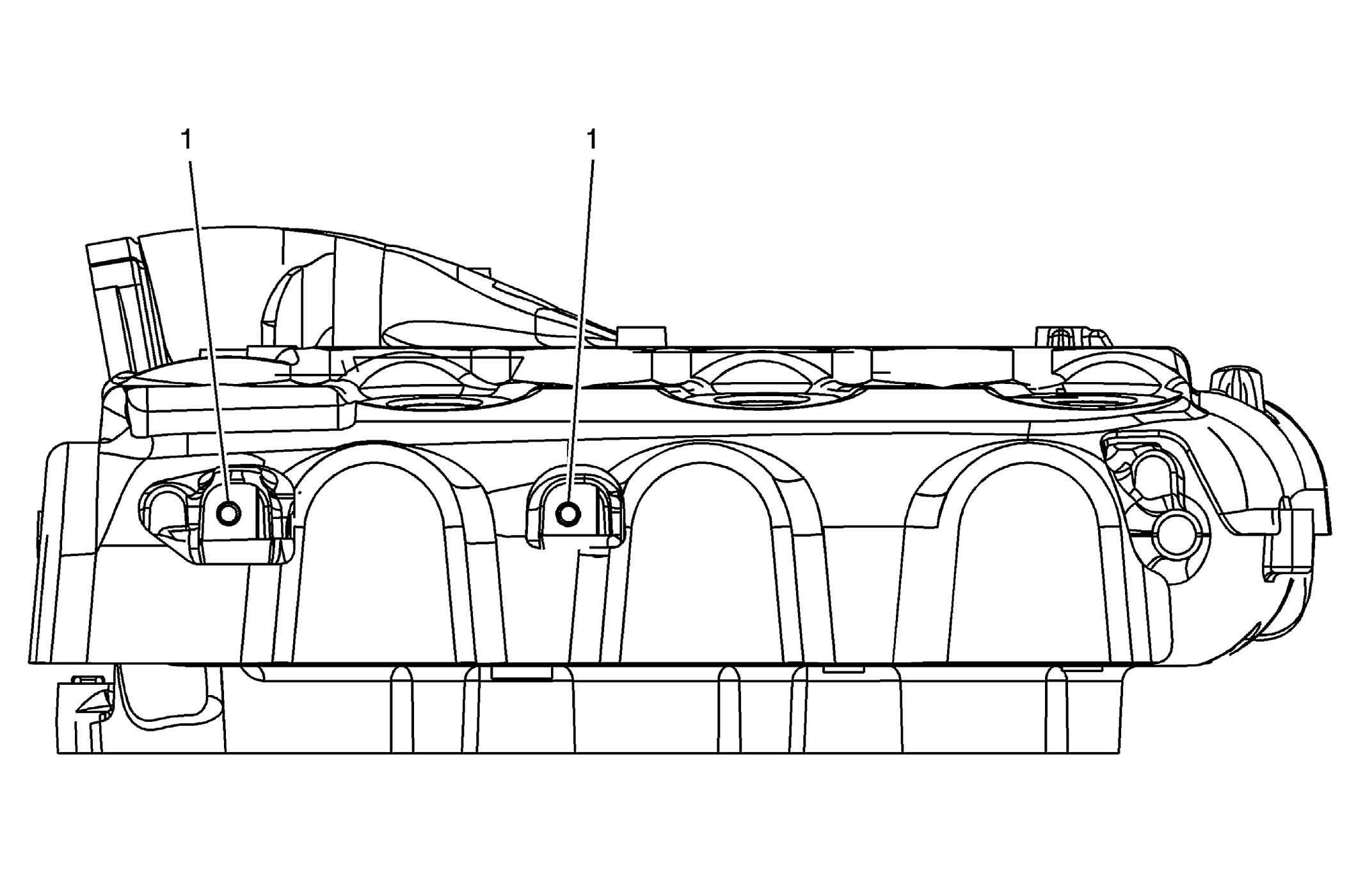

Fig 30: Intake Manifold - Right (LCS)
GM2091338Courtesy of GENERAL MOTORS CORP.
Intake Manifold - Right (LCS)

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M6 x 1.0 201 202 N/A 203 204 205 21.5 0.8465 18.0 0.7087

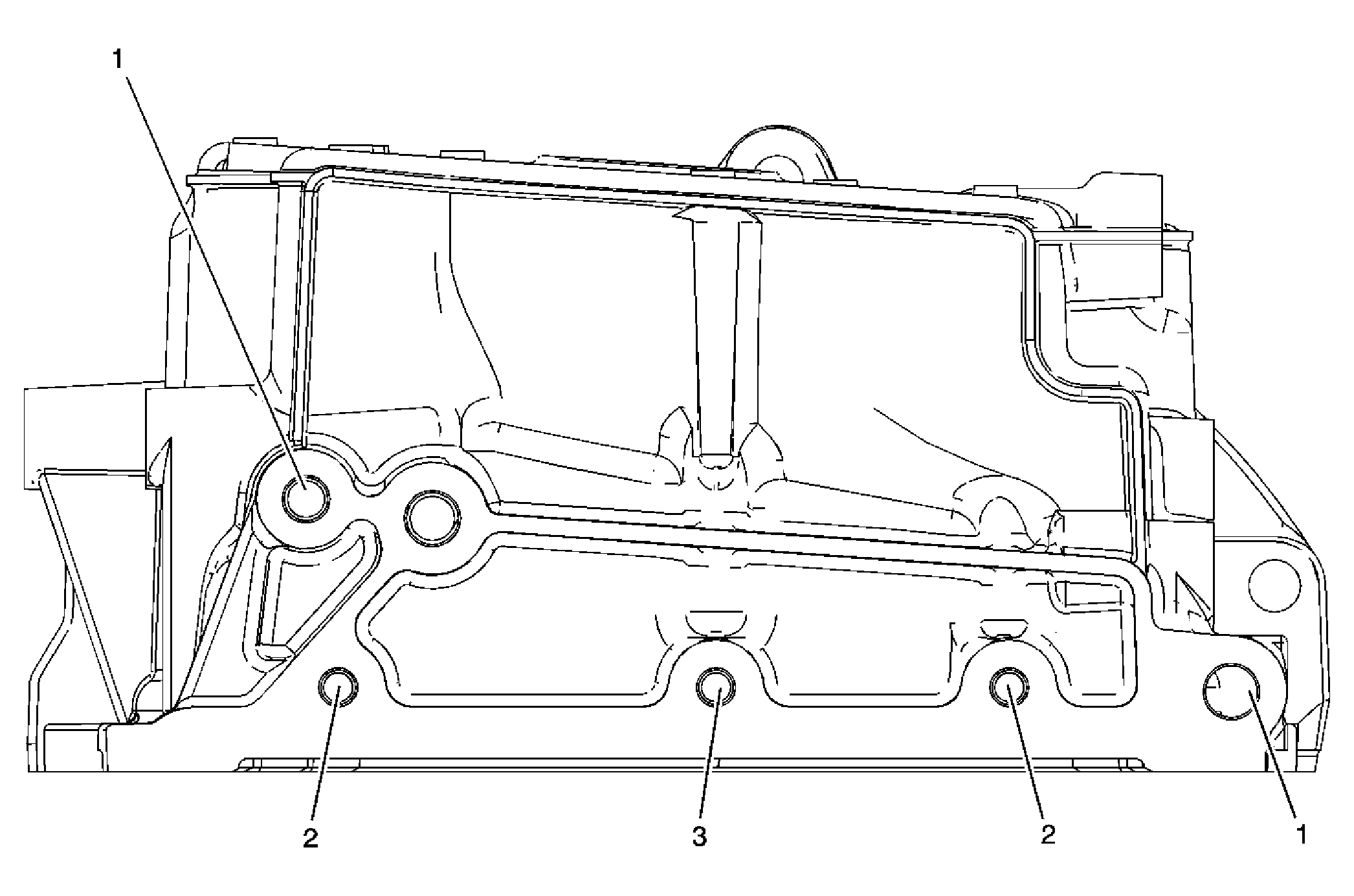

Fig 31: Oil Pan Front
GM1866794Courtesy of GENERAL MOTORS CORP.
Oil Pan Front

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M10 x 1.5 211 212 N/A 213 214 420 33.5 1.3189 27.0 1.0630
2 M8 x 1.25 206 207 N/A 208 209 210 28.5 1.1220 23.0 0.9055
3 M8 x 1.25 610 N/A N/A 208 209 620 37.5 1.4764 32.0 1.2598

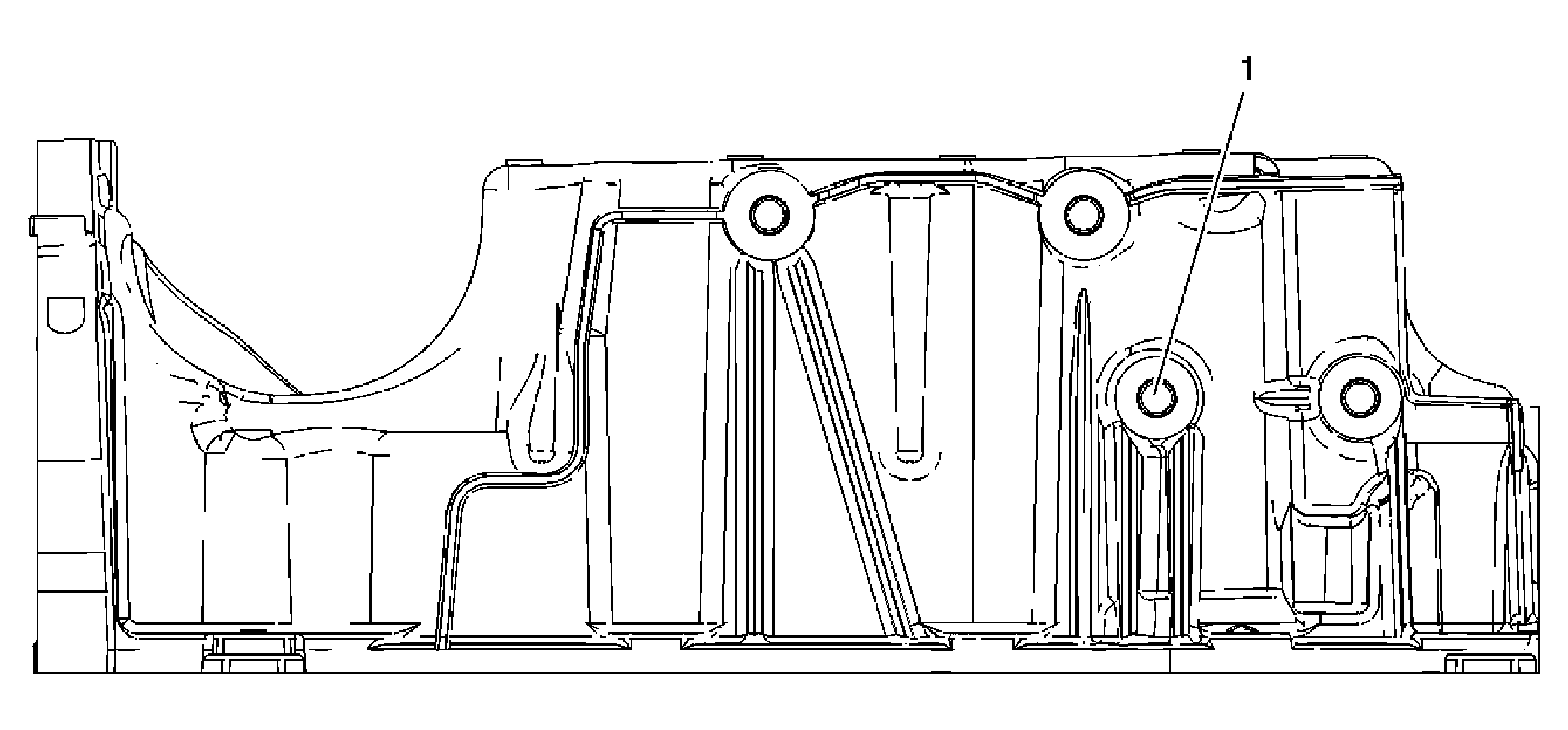

Fig 32: Oil Pan Left Side
GM1866795Courtesy of GENERAL MOTORS CORP.
Oil Pan Left Side

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M10 x 1.5 211 212 N/A 213 214 420 33.5 1.3189 27.0 1.0630

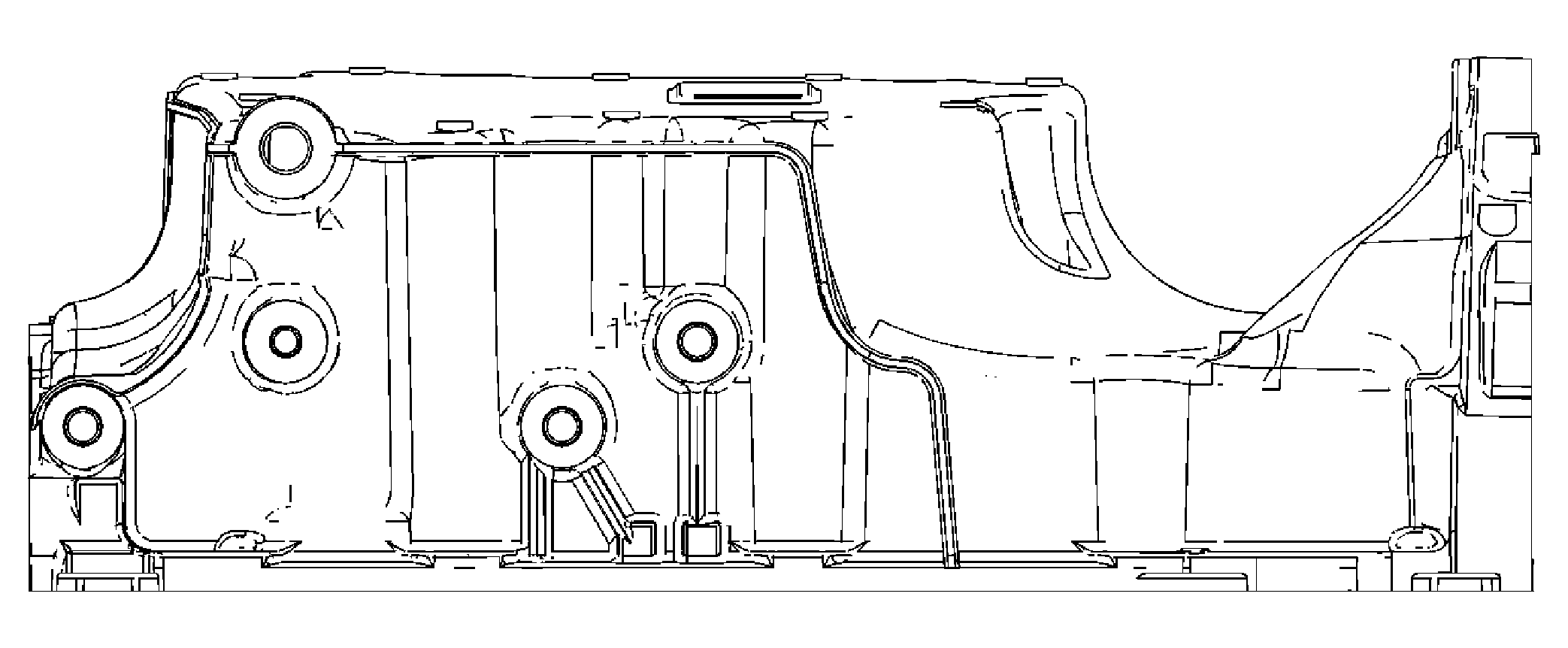

Fig 33: Oil Pan Right Side
GM1866796Courtesy of GENERAL MOTORS CORP.
Oil Pan Right Side

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M12 x 1.75 856 857 N/A 858 859 416 THRU THRU

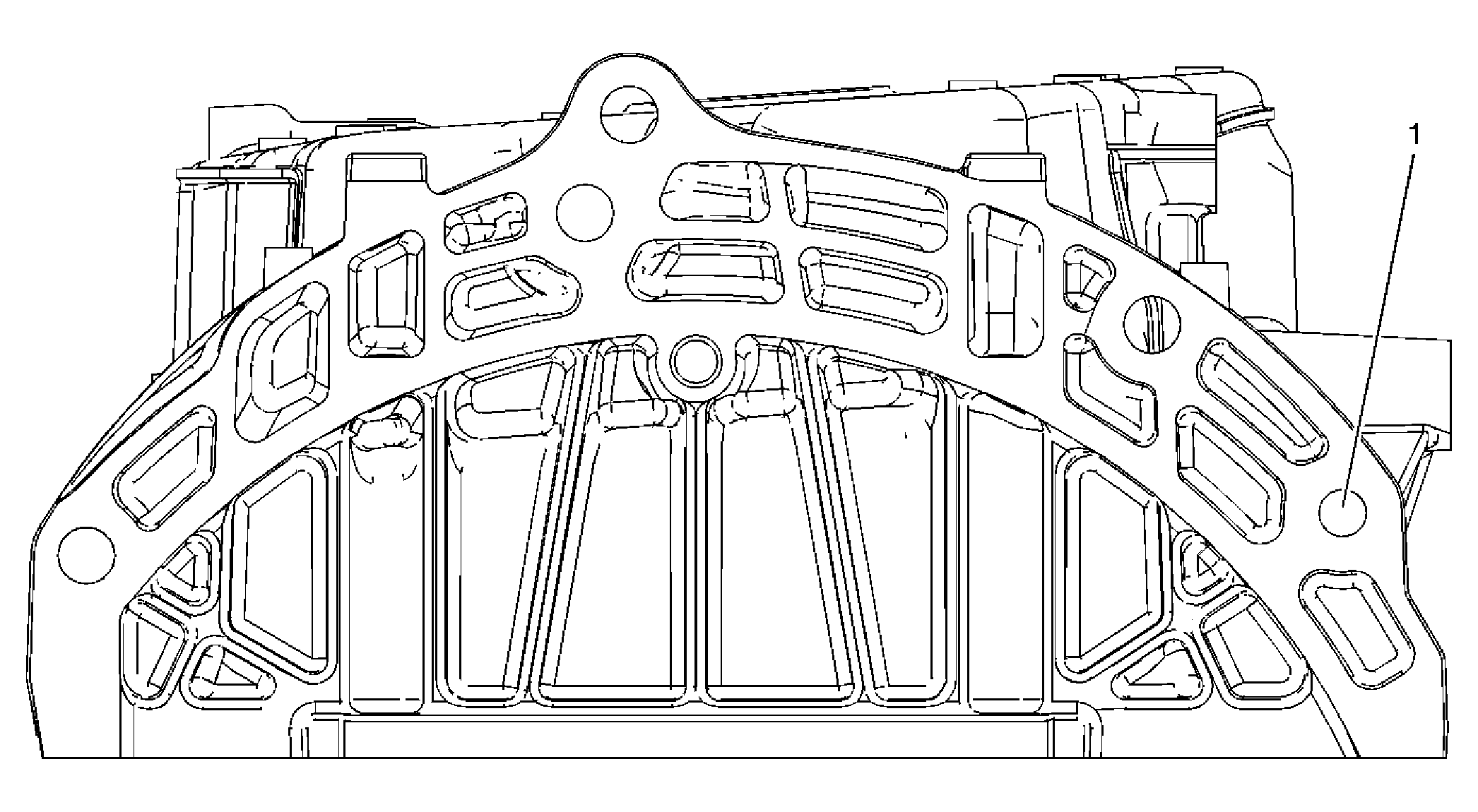

Fig 34: Oil Pan Rear
GM1866797Courtesy of GENERAL MOTORS CORP.
Oil Pan Rear

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M10 x 1.5 211 212 N/A 213 214 420 33.5 1.3189 27.0 1.0630

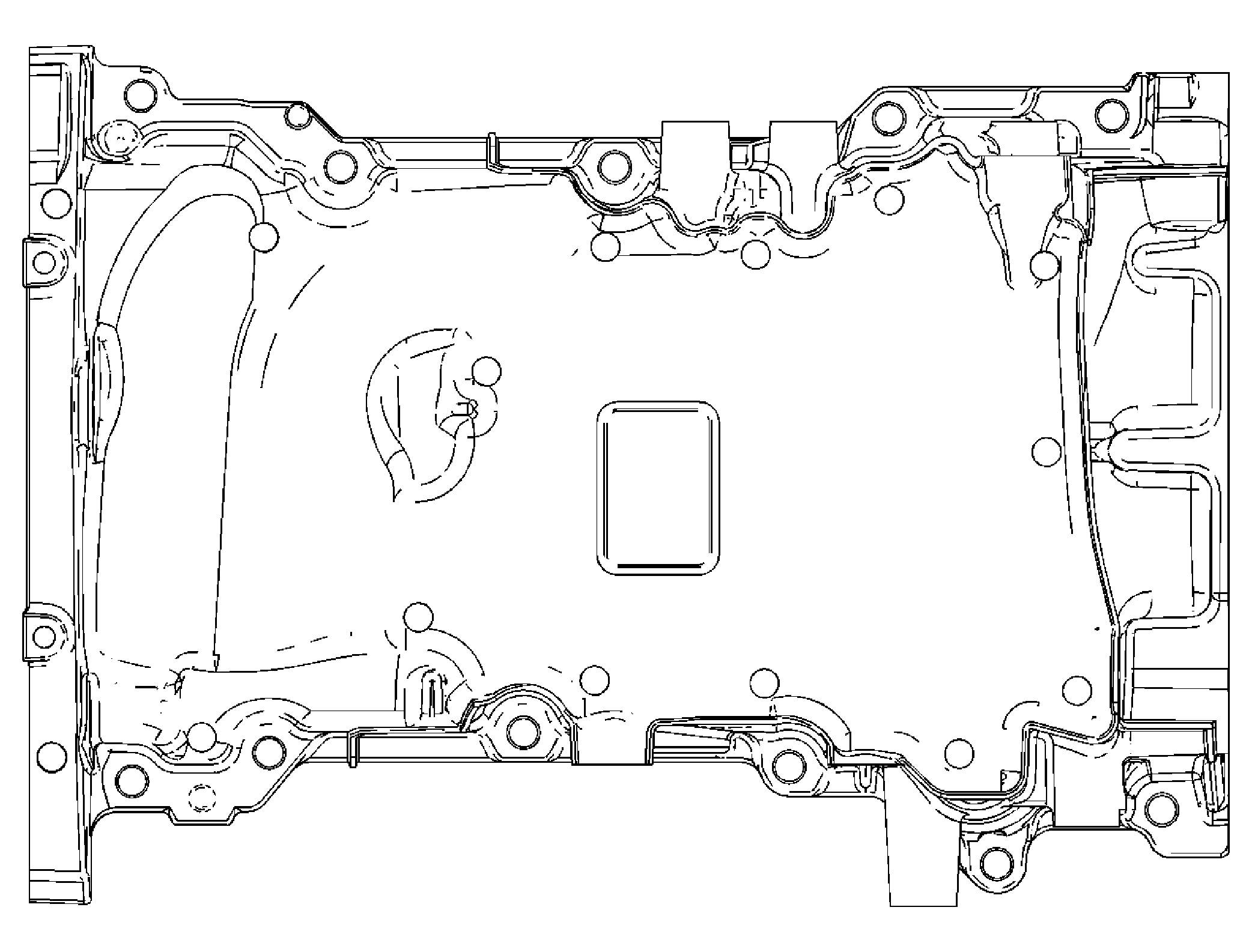

Fig 35: Oil Pan Bottom
GM1866798Courtesy of GENERAL MOTORS CORP.
Oil Pan Bottom

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M10 x 1.5 211 212 N/A 213 214 420 33.5 1.3189 27.0 1.0630

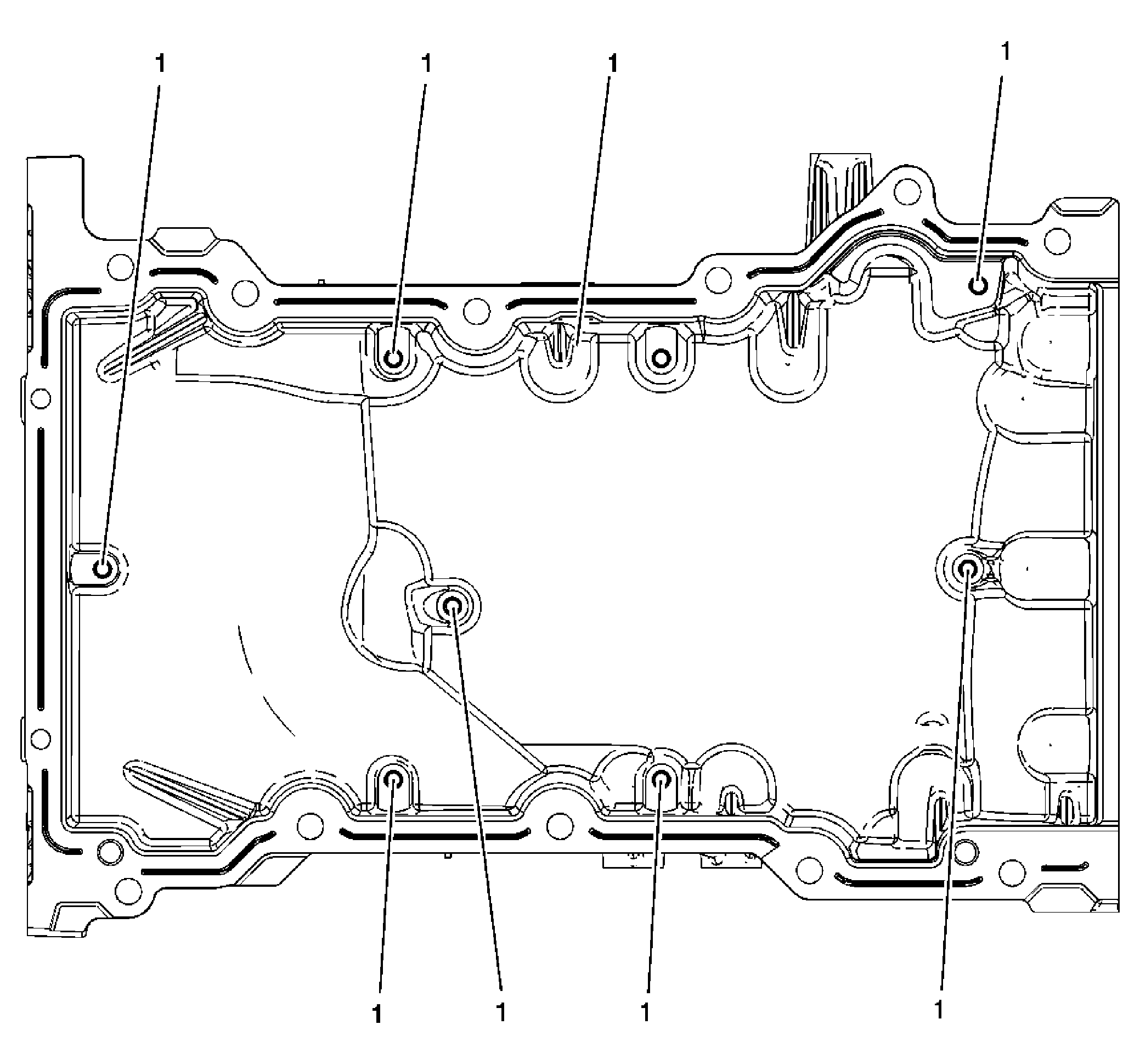

Fig 36: Oil Pan Top
GM1866799Courtesy of GENERAL MOTORS CORP.
Oil Pan Top

Hole Location Thread Size Drill Counter Bore Tool Stop Collar Tap Driver Insert Drill Depth (Maximum) Tap Depth (Minimum)
J 42385- MM (IN) MM (IN)
1 M6 x 1.0 701 N/A N/A 203 204 205 28.0 1.1024 23.5 0.9252
scientia non olet · About LEMON Manuals
