Hybrid Cooling Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

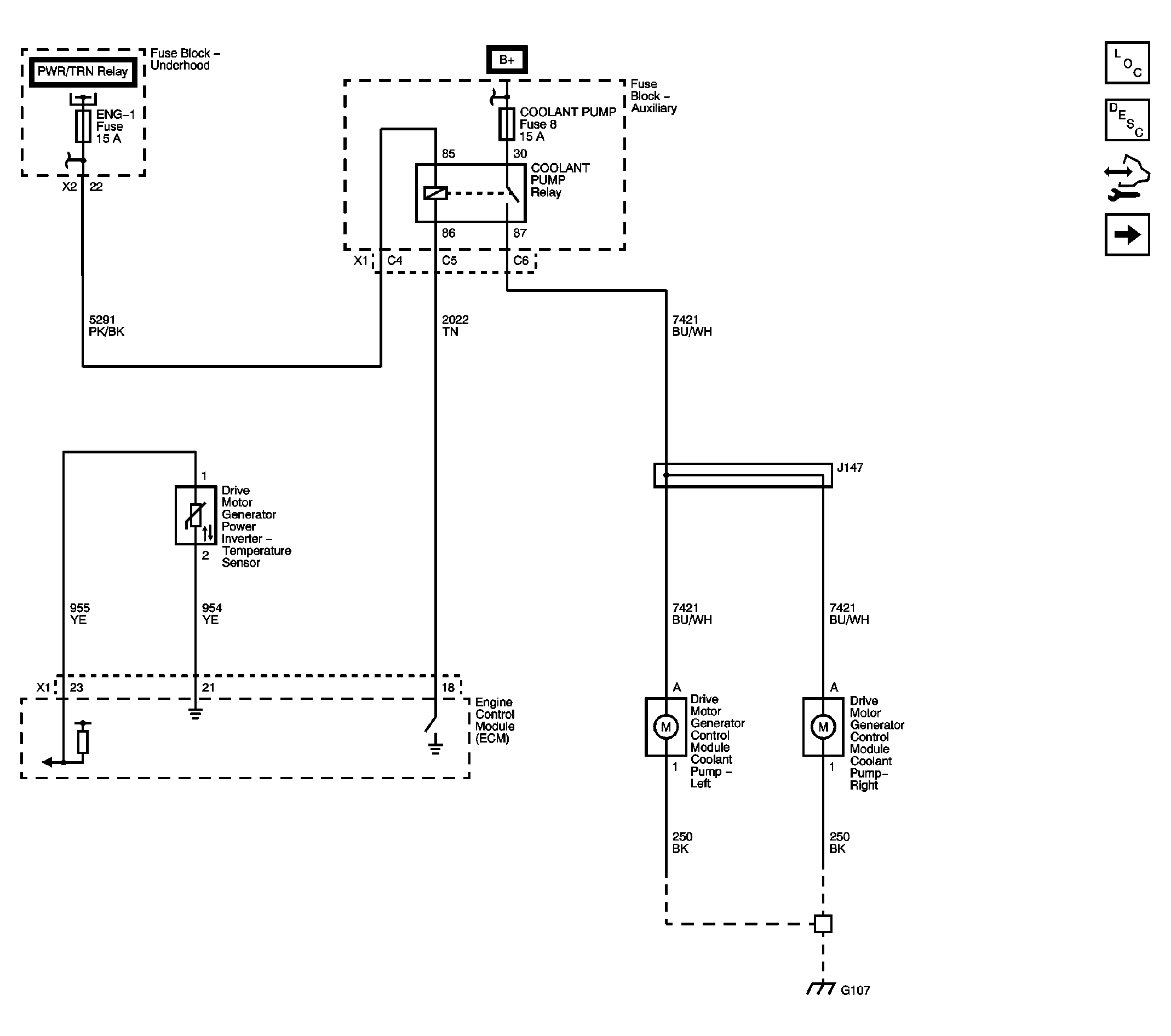

Fig 1: Drive Motor Generator Control Module Cooling Pumps
GM2148703Courtesy of GENERAL MOTORS CORP.

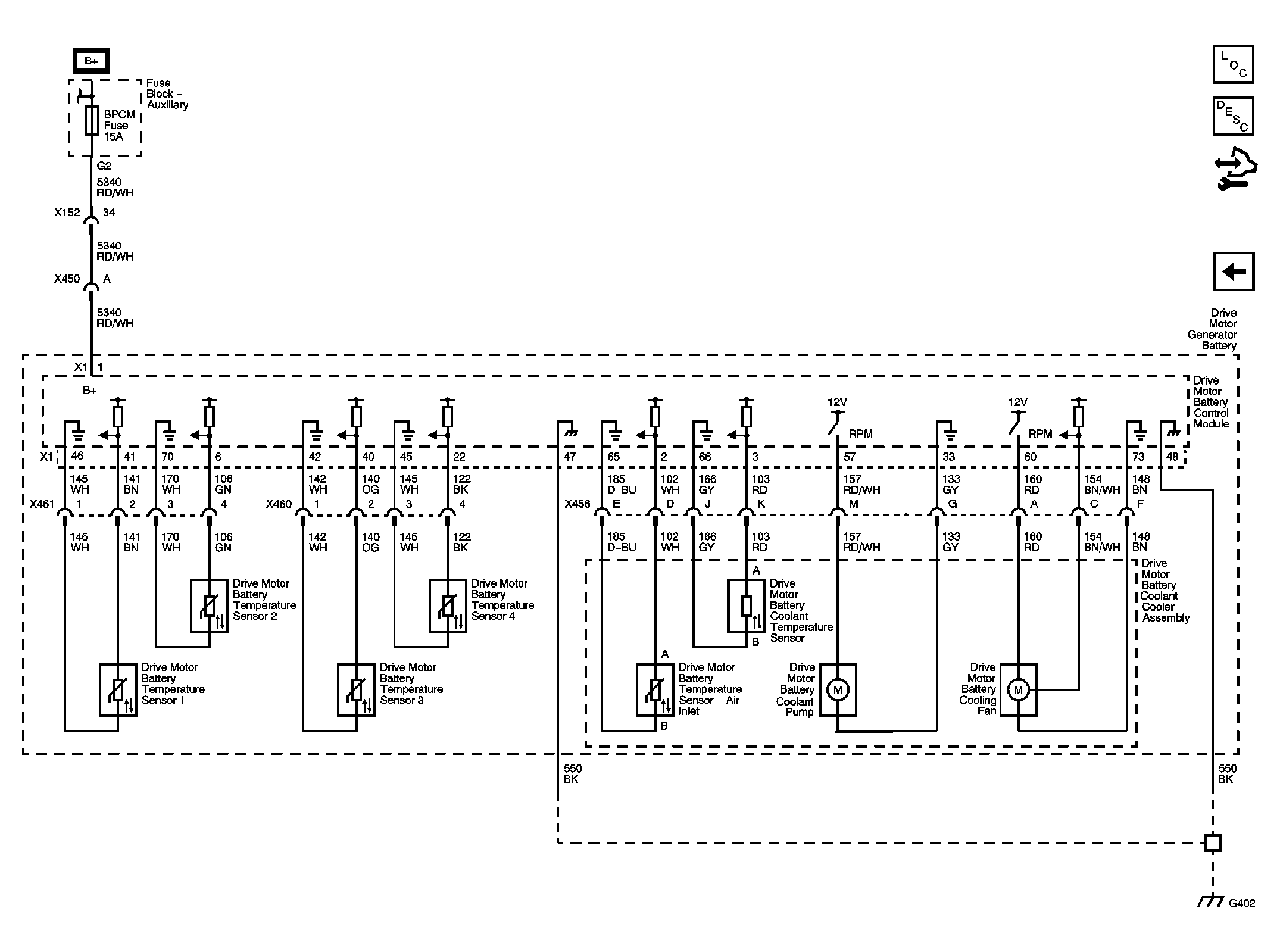

Fig 2: Drive Motor Battery Cooling Controls
GM2148709Courtesy of GENERAL MOTORS CORP.
