Radiator Surge Tank Air Separator Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

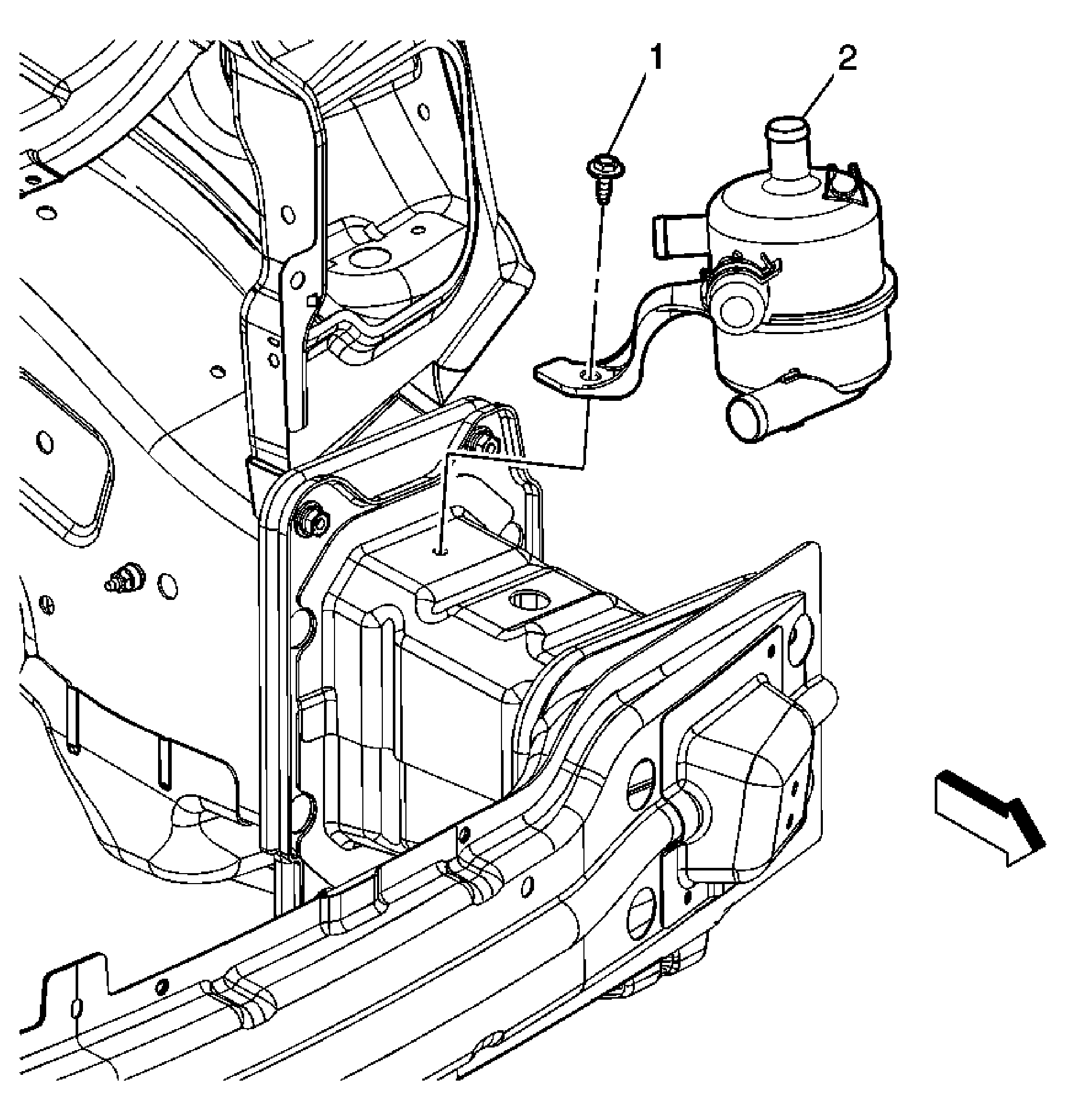

Fig 1: Radiator Surge Tank Air Separator Replacement
GM2075843Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove left headlamp. Refer to Headlamp Replacement
  2. Drain the generator control module cooling system. Refer to Generator Control Module Cooling System Draining and Filling
  3. Remove radiator surge tank outlet hose. Refer to Radiator Surge Tank Outlet Hose Replacement
  4. Remove generator control module coolant outlet hose. Refer to Generator Control Module Coolant Outlet Hose Replacement
  5. Remove generator control module coolant pump hose. Refer to Generator Control Module Coolant Pump Hose Replacement
1 Radiator Surge Tank Air Separator Fastener.
CAUTION: Refer to Fastener Caution .

Tighten:  7.5 N.m (66 lb in)
2 Radiator Surge Tank Air Separator.
