Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

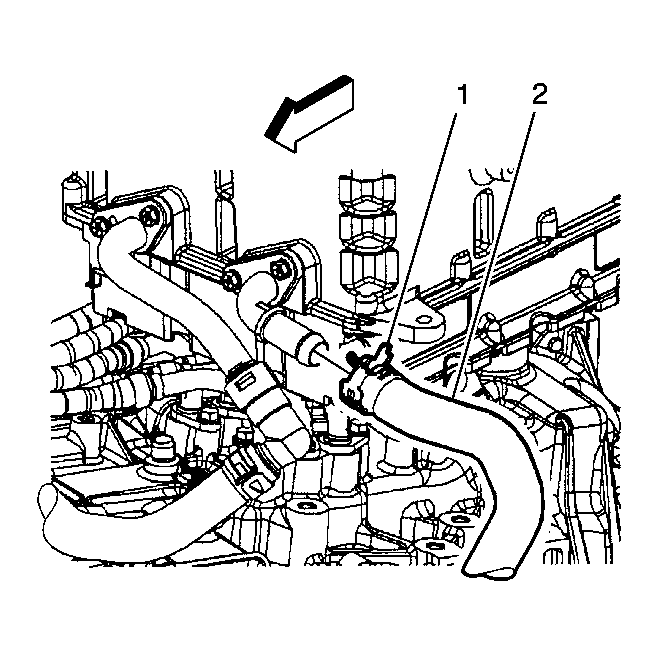

Fig 1: Generator Control Module Coolant Outlet Hose At Radiator Surge Tank Air Separator

Courtesy of GENERAL MOTORS CORP.

Install the generator control module coolant outlet hose to the vehicle.
Install the generator control module coolant outlet hose (2) to the radiator surge tank air separator.
Using J 38185: Hose Clamp Pliers reposition the generator control module coolant outlet hose clamp (1).

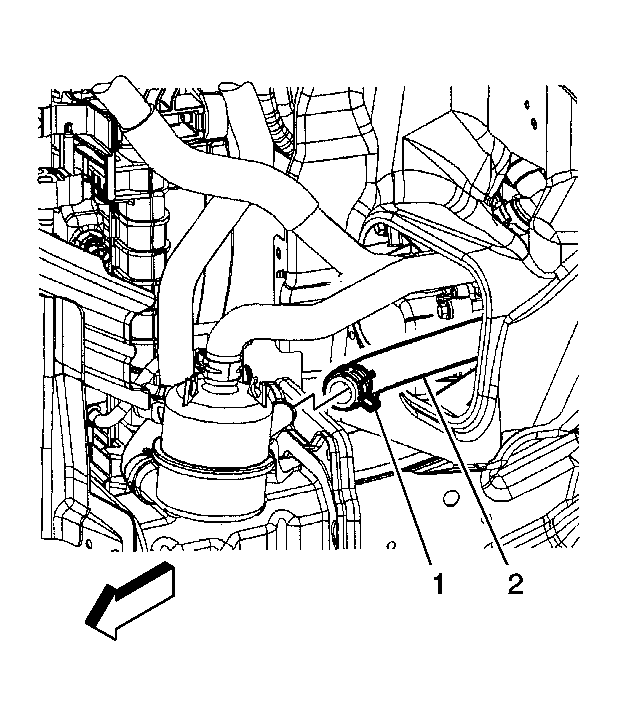

Fig 2: Generator Control Module Coolant Outlet Hose At Generator Control Module

Courtesy of GENERAL MOTORS CORP.

Install the generator control module coolant outlet hose (2) to the generator control module.
Using J 38185: Hose Clamp Pliers reposition the generator control module coolant outlet hose clamp (1).
Install the left headlamp. Refer to Headlamp Replacement
Install the drive motor power inverter module bracket. Refer to Generator Control Module Bracket Replacement
Fill the generator control module cooling system. Refer to Generator Control Module Cooling System Draining and Filling
