Accelerator Cable Adjustment: 2.0L

WARNING: This page is about a different car, the 2003 Chevrolet Tracker. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check accelerator pedal free play with throttle valve closed. Accelerator pedal free play clearance should be.08-.27" (2-7 mm). See Fig 1. To adjust accelerator pedal free play, loosen accelerator cable lock nut at throttle body bracket. See Fig 2. Turn accelerator cable adjusting nut until free play is within specification. Install and tighten accelerator cable lock nut to 17 ft. lbs. (23 N.m).
  2. Check clearance between throttle lever and throttle stop with accelerator pedal fully depressed. Accelerator cable end play clearance should be.02-.07" (0.5-2.0 mm) if equipped with manual transmission, or.03-.06" (0.8-1.5 mm) if equipped with automatic transmission. See Fig 3. To adjust accelerator cable end play, adjust height of accelerator pedal stop. See Fig 1.
Fig 1: Measuring Accelerator Pedal Free Play Clearance (2.0L & 2.5L)
G99I08043Courtesy of GENERAL MOTORS CORP.

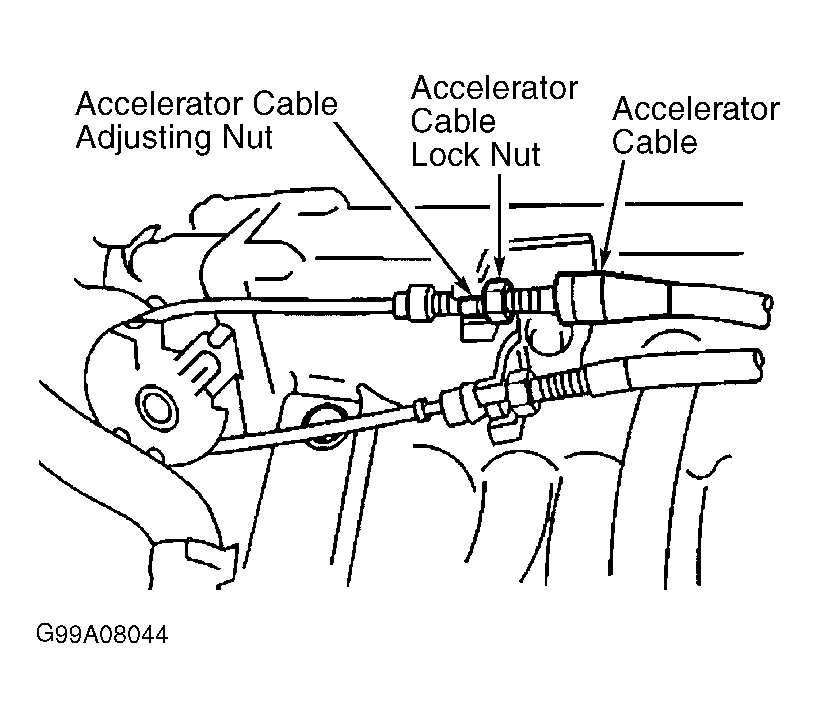

Fig 2: Adjusting Accelerator Pedal Free Play (2.0L)
G99A08044Courtesy of GENERAL MOTORS CORP.

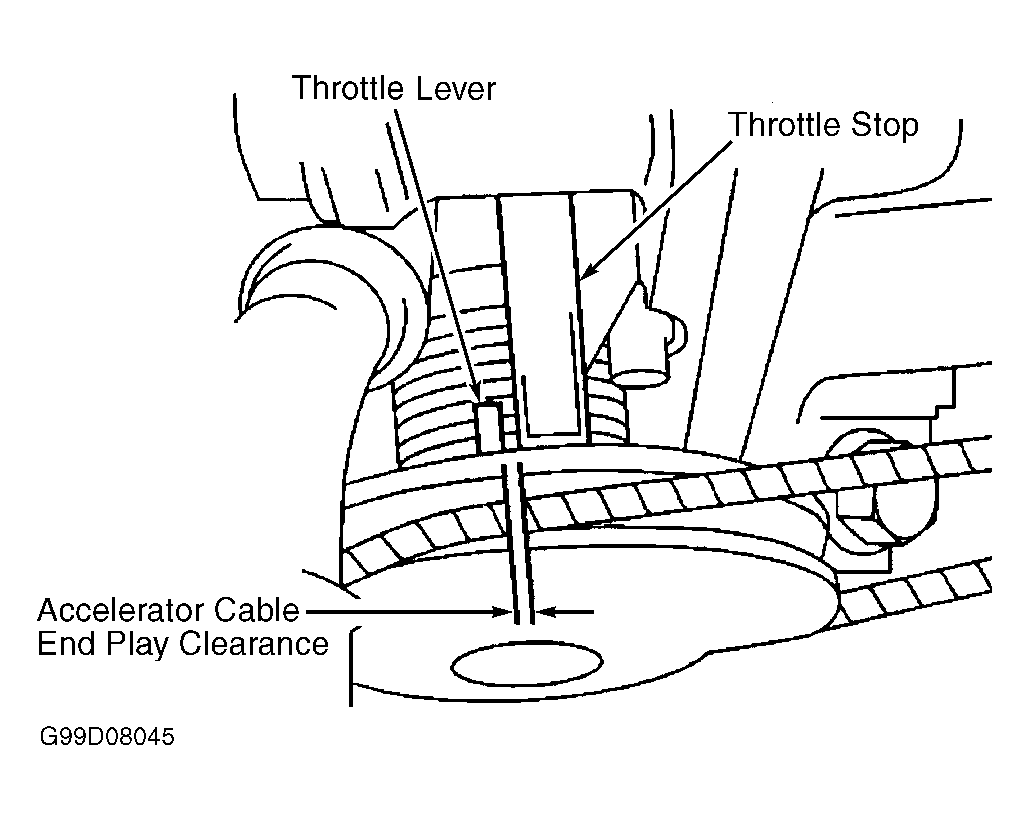

Fig 3: Measuring Accelerator Cable End Play Clearance (2.0L)
G99D08045Courtesy of GENERAL MOTORS CORP.
