PASSLOCK(tm) MODULE: Removal
WARNING: This page is about a different car, the 2002 GMC Savana, 2002 Chevrolet Chevy Express, 2001 GMC Savana, and 2001 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

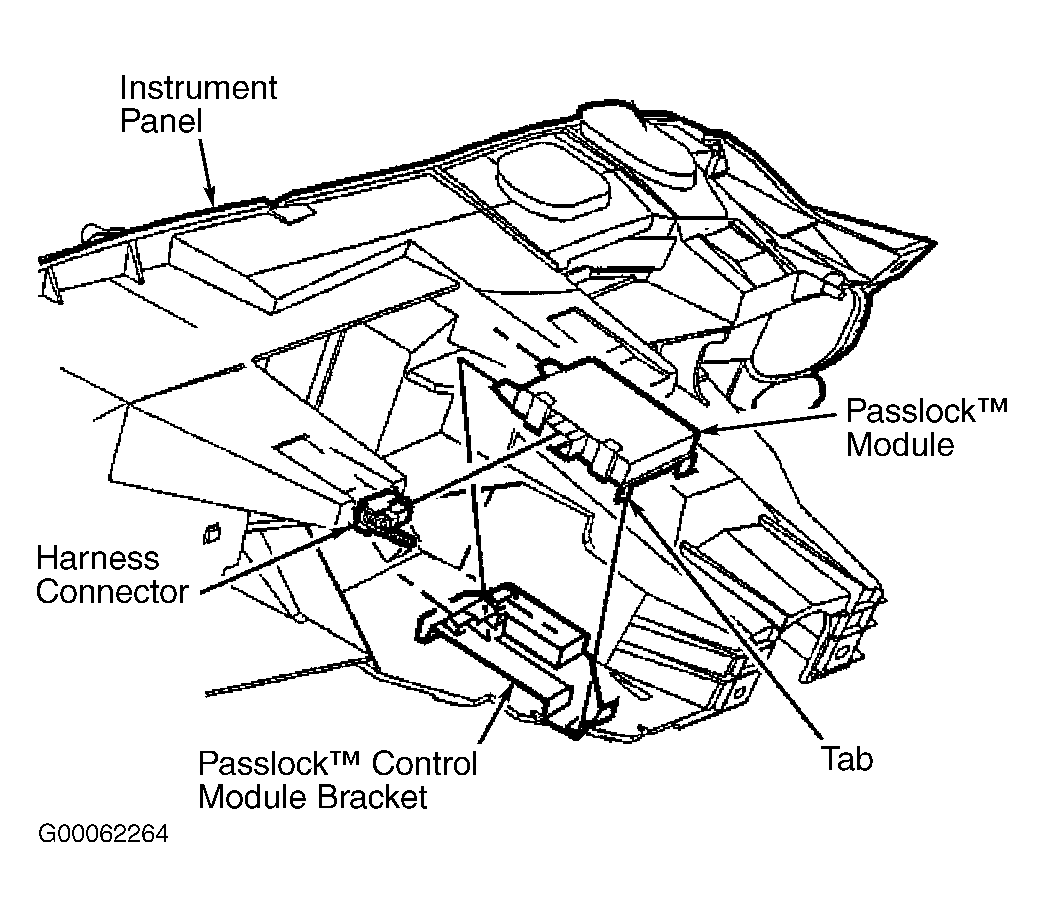

Push tab (3) at rear of passlock control module in order to release module from Passlock(tm) control module bracket (4). See Fig 1 . Slide Passlock(tm) control module (2) out of Passlock(tm) control module bracket (4). Disconnect electrical connector (5) from Passlock(tm) control module (2). Remove Passlock(tm) control module (2) from the vehicle.
