Rear Wheel Drive Module Clutch Housing Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

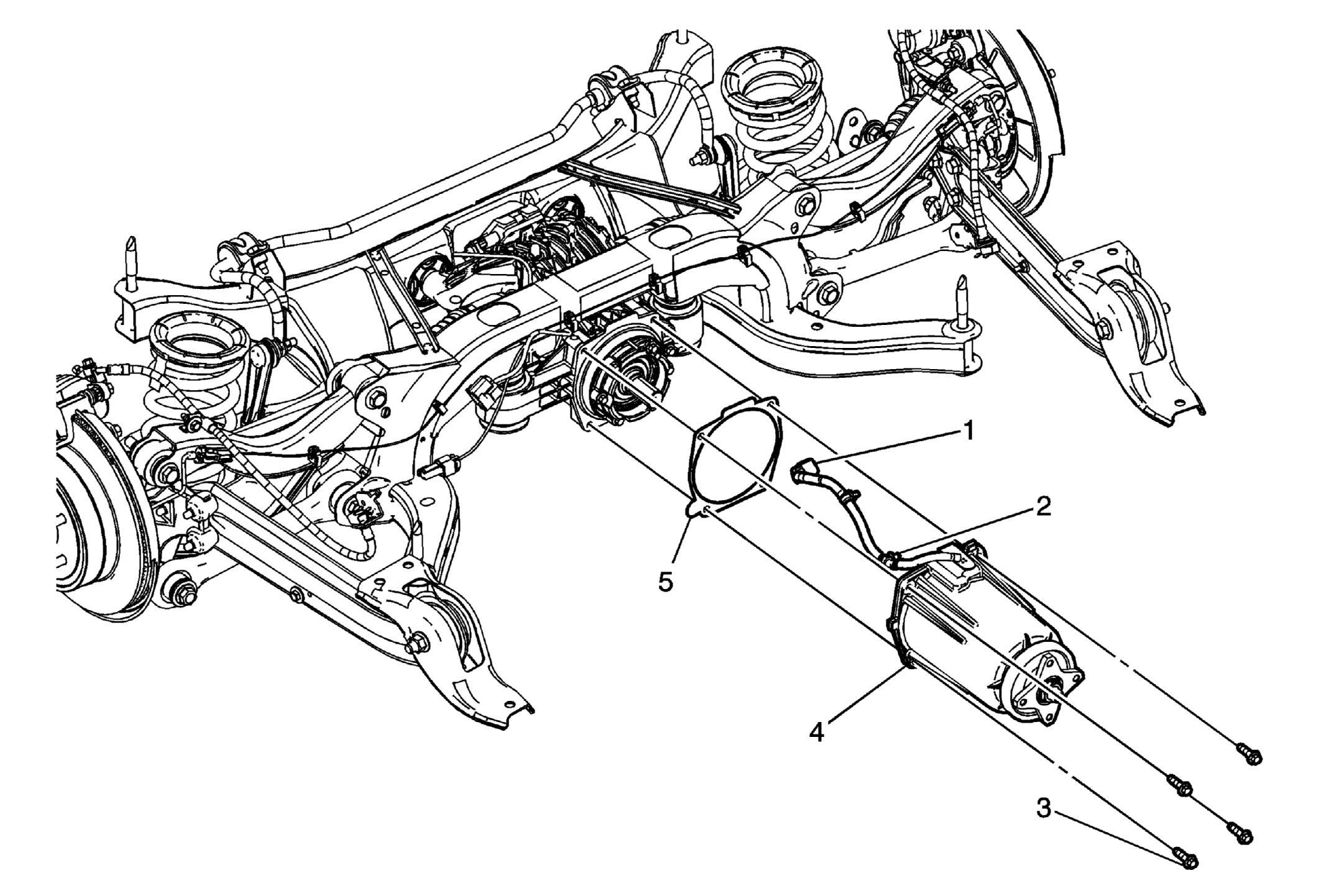

Fig 1: View Of Rear Wheel Drive Module Clutch Housing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the propeller shaft from the differential clutch drum assembly. Refer to Propeller Shaft Replacement .
1	Electrical Clutch Control Connector
2	Retaining Clip (Qty: 2)
3	Differential Clutch Drum Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tip: Relocate the rear portion of the propeller shaft to the side and support it with mechanics wire or equivalent. Tighten: 29 N.m (21 lb ft)
4	Differential Clutch Drum Procedure: Rear differential clutch control module recalibration, refer to Control Module References . Tip: The pinion flange, dust cover and pinion nut are serviced with the differential clutch drum assembly.
5	Differential Clutch Drum Gasket Tip: Apply a small amount of grease to the gasket to hold it in place.
