Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the rear differential assembly. Refer to Differential Replacement .

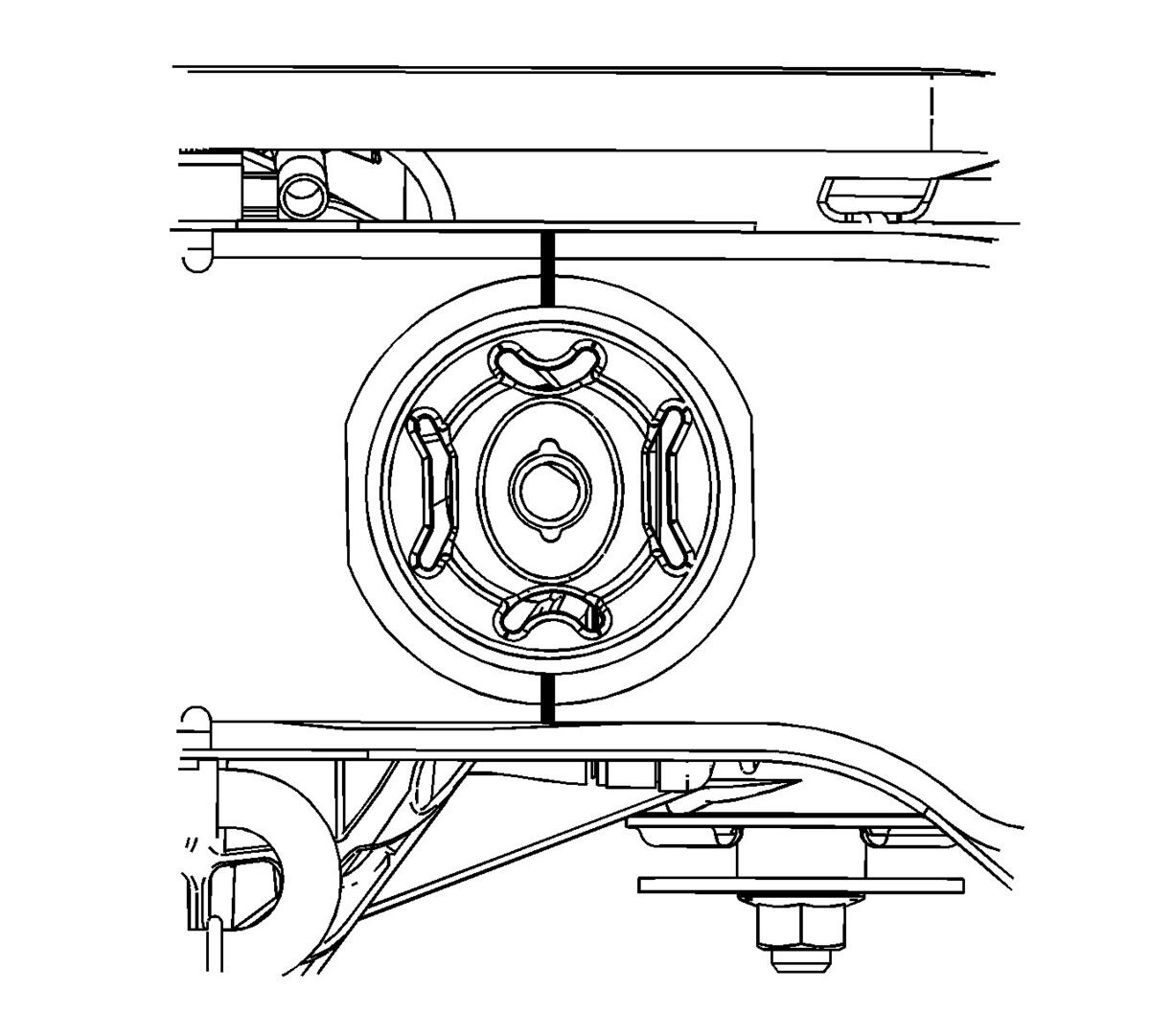

    3. Fig 1: Identifying Reference Point On Frame
    GM1827320Courtesy of GENERAL MOTORS CORP.
  3. Mark a reference point on the frame and old bushing at the 12 and 6 o'clock position to use to alignment the new bushing.

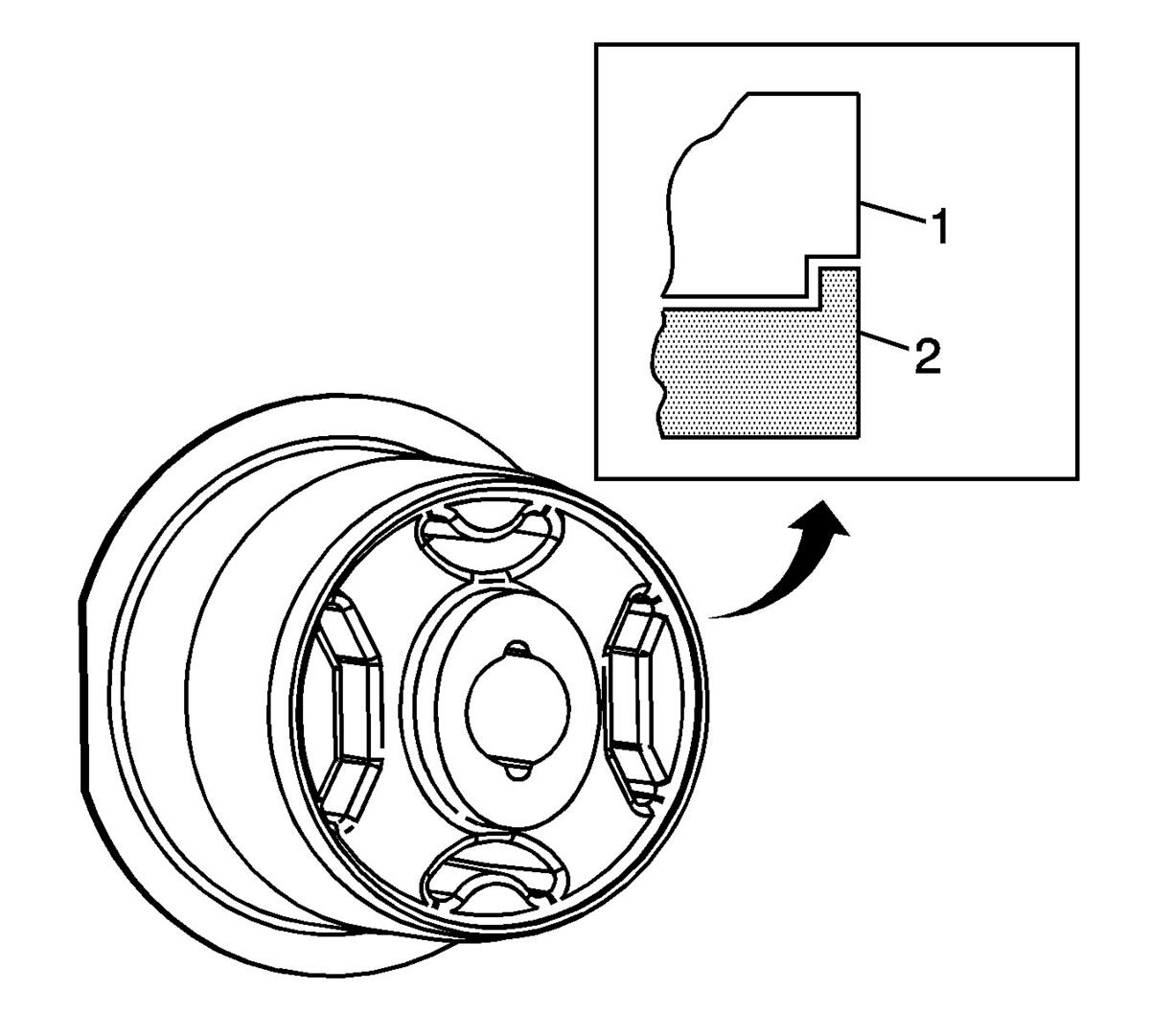

    4. Fig 2: View Of J-45725-2A & Bushing
    GM1827150Courtesy of GENERAL MOTORS CORP.
  4. Position the J-45725-1A (1) on the bushing (2).
  5. Position the J-45725-2A (1) on the frame.
    6. IMPORTANT: Apply a small amount of grease on the threaded rod to lubricate the nuts when turning the nuts.
  6. Install the threaded rod, bearing and washers.

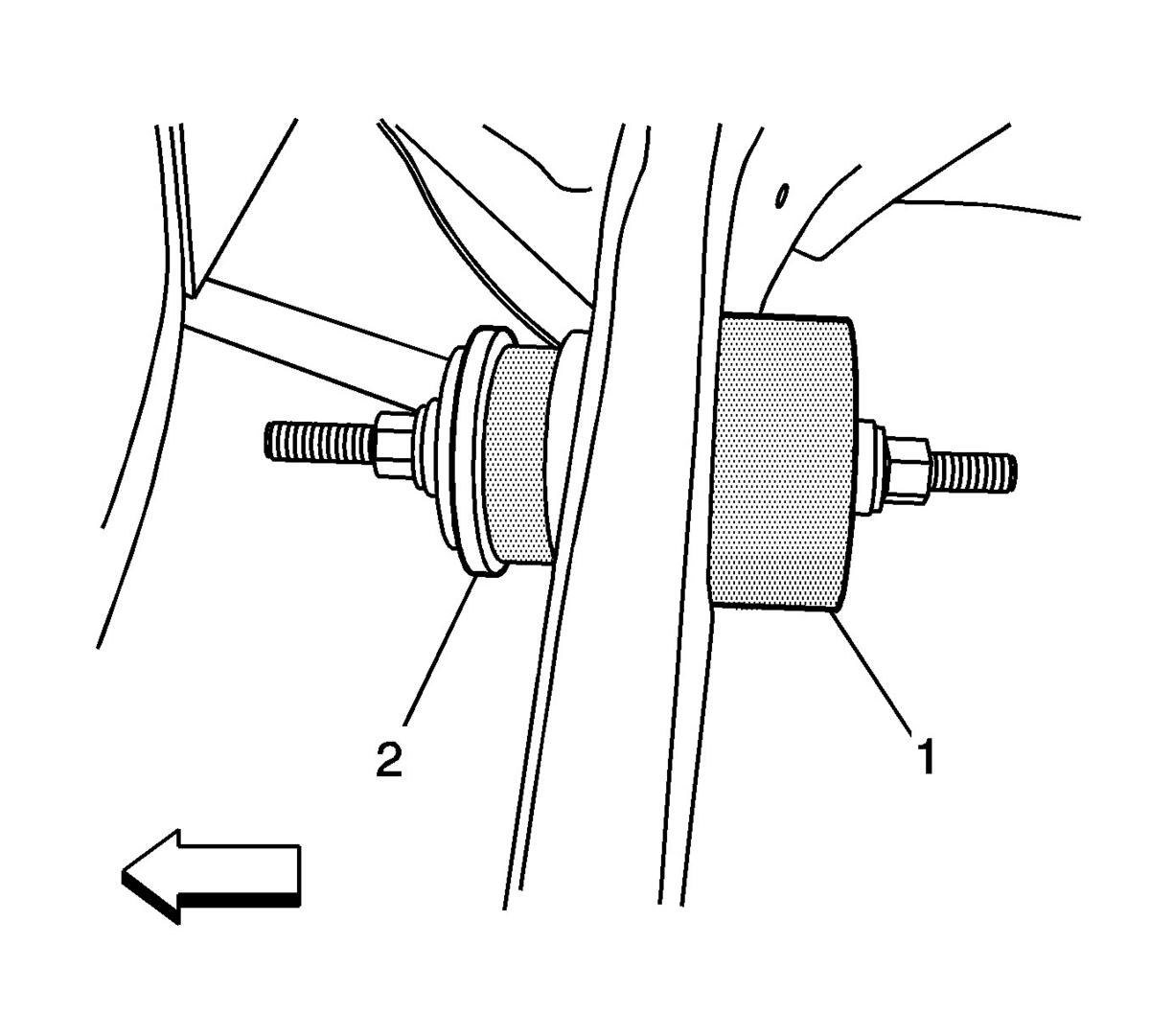

    7. Fig 3: Identifying Special Tools - J-45725-1A And J-45725-2A
    GM1827447Courtesy of GENERAL MOTORS CORP.
  7. Adjust the nuts so that they are touching the J-45725-1A (2) and the J-45725-2A (1).
  8. Install the proper size wrenches on the nuts.

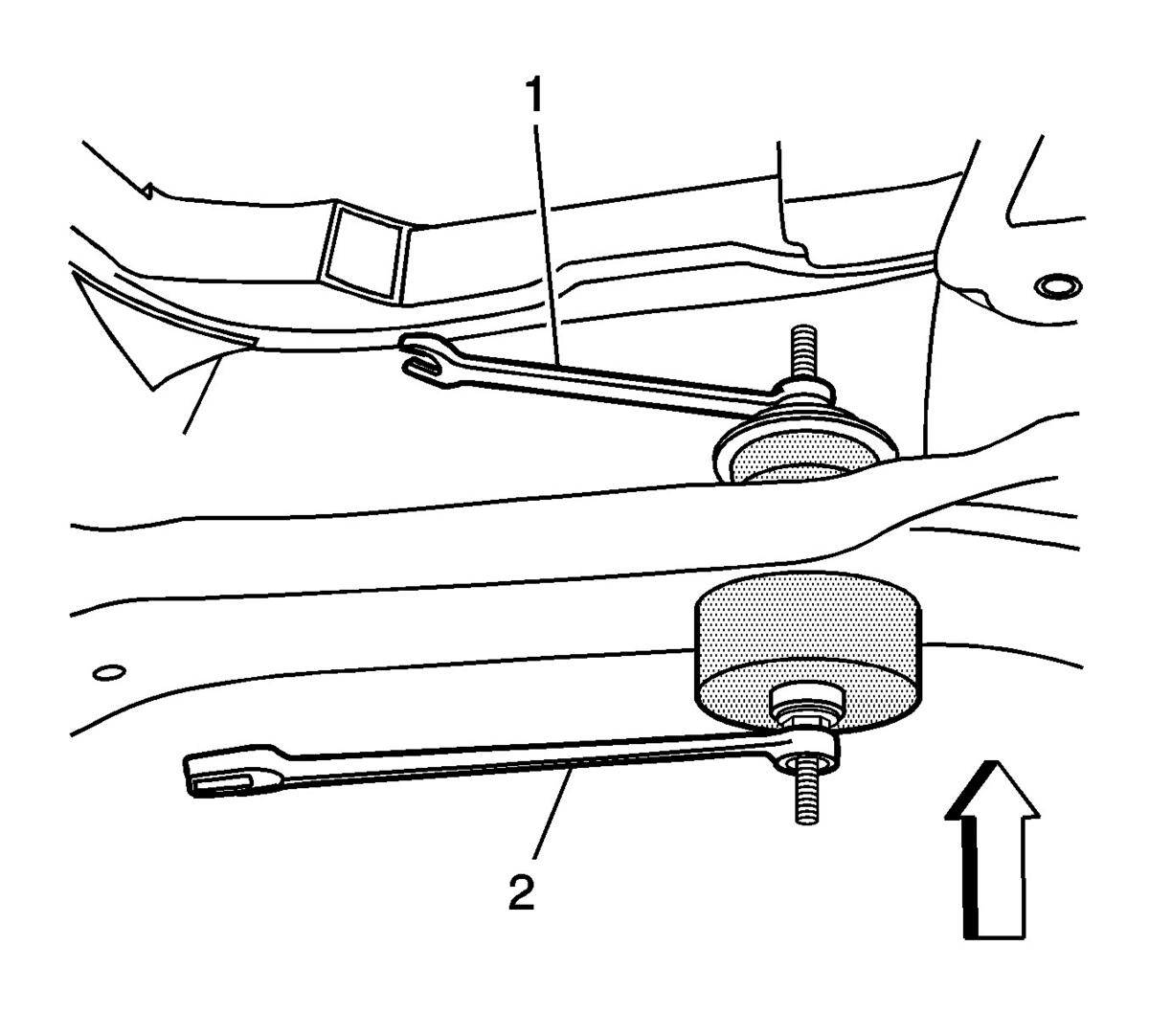

    9. Fig 4: Removing Busing
    GM1827454Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: In the following service procedure, use only HAND TOOLS when using the J-45725.
  9. While holding the front wrench (1) rotate the rear wrench (2) to remove the bushing.
  10. Remove the special tools.

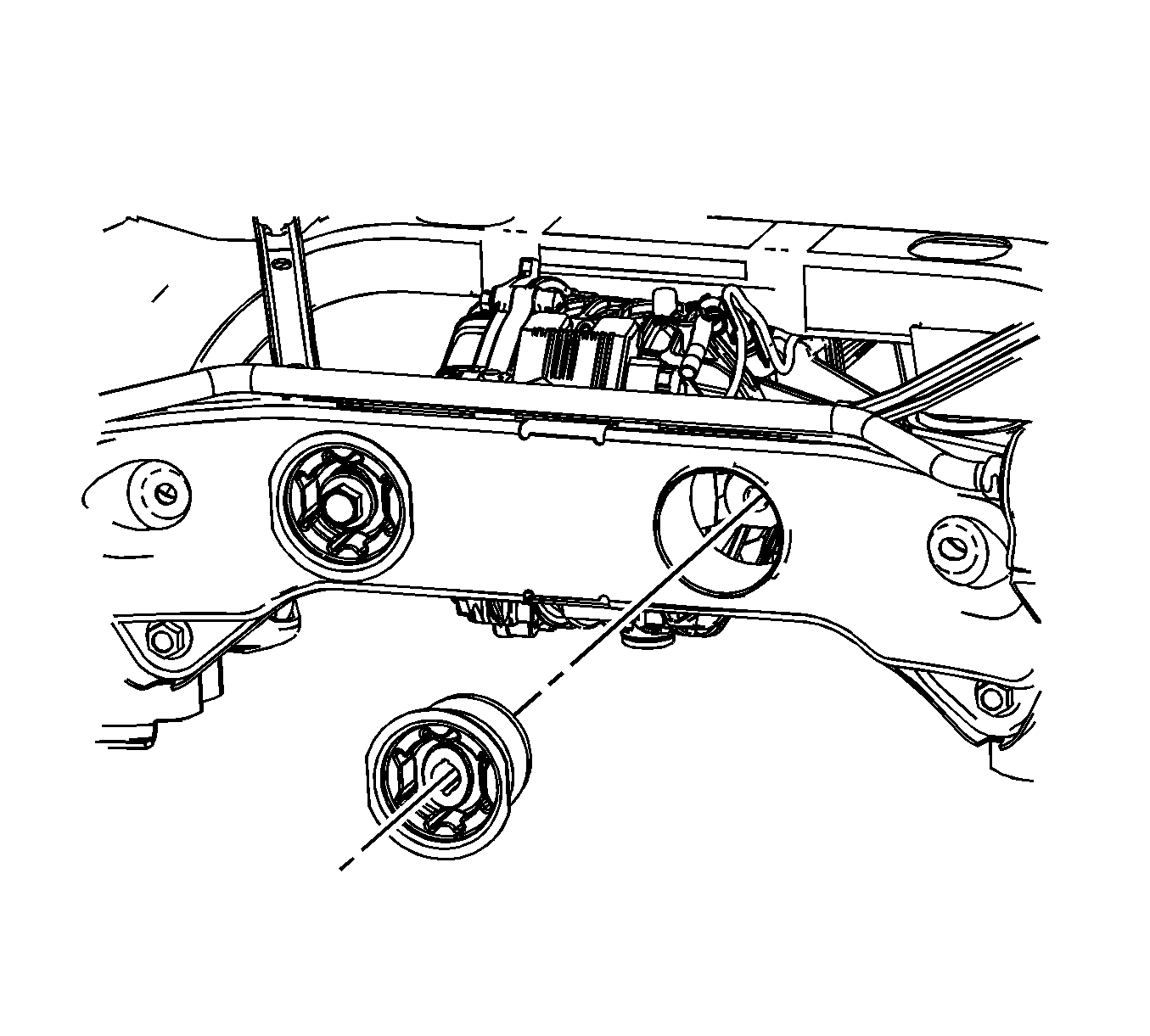

    11. Fig 5: Vire Of Bushing & Frame
    GM1827500Courtesy of GENERAL MOTORS CORP.
  11. Remove the bushing from the frame.
