Differential Carrier Assembly Mount Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

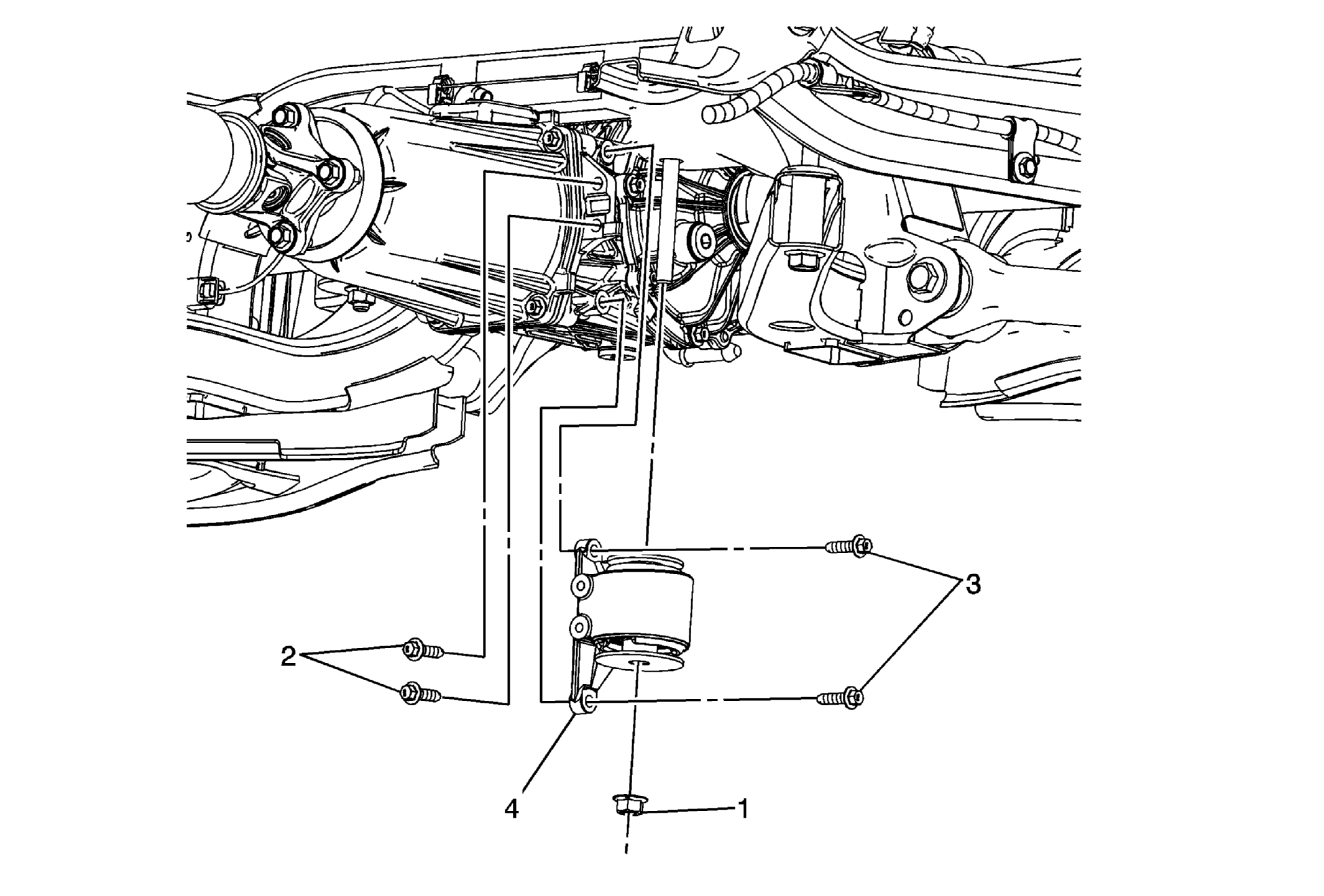

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Left Rear Differential Mount Nut
CAUTION:
Refer to Fastener Caution
. Tip: Support the rear differential with a jack stand. Tighten: 122 N.m (90 lb ft) |
| 2 | Left Rear Differential Mount Bolt (Qty: 2) Tighten: 29 N.m (21 lb ft) |
| 3 | Left Rear Differential Mount Bolt (Qty: 2) Tighten: 29 N.m (21 lb ft) |
| 4 | Left Rear Differential Mount |
