Special Tools

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Illustration	Tool Number/Description

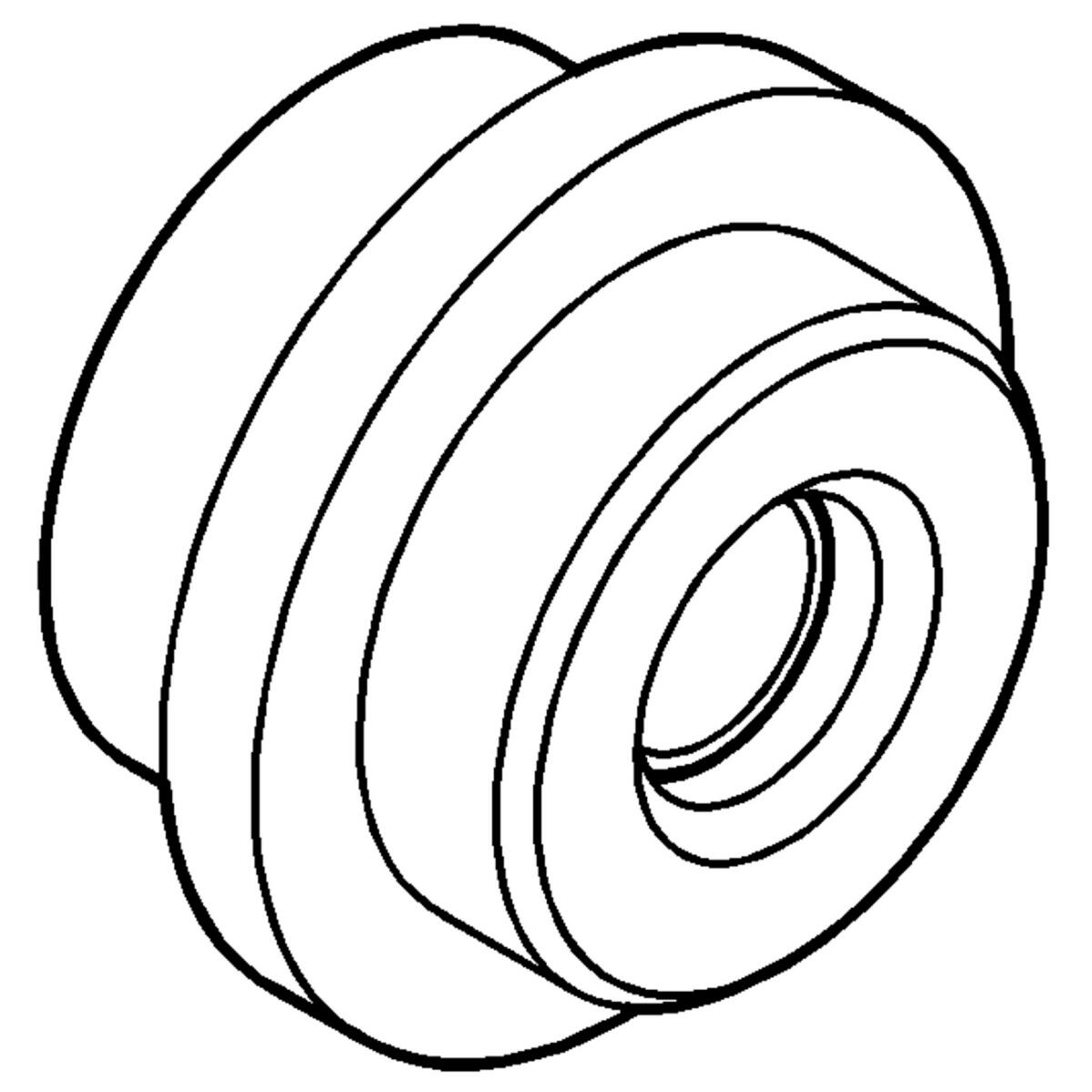

Courtesy of GENERAL MOTORS CORP.	DT-48074 Input and Output Shaft Seal Installer
Courtesy of GENERAL MOTORS CORP.	DT-48075 Output Shaft Seal Installer
Courtesy of GENERAL MOTORS CORP.	DT-48077 Output Shaft Slinger Installer
Courtesy of GENERAL MOTORS CORP.	DT-48078 Inner Drive Shaft Seal Installer
Courtesy of GENERAL MOTORS CORP.	DT-48094 Inner Drive Shaft Seal Protector
Courtesy of GENERAL MOTORS CORP.	DT-48146 Press Support
Courtesy of GENERAL MOTORS CORP.	J 5590 Pinion Bearing Race Installer - Rear
Courtesy of GENERAL MOTORS CORP.	J 8092 Driver Handle
Courtesy of GENERAL MOTORS CORP.	J-08614-A Pinion Flange Holder and Remover
Courtesy of GENERAL MOTORS CORP.	J 22912-B Rear Pinion and Axle Bearing Remover
Courtesy of GENERAL MOTORS CORP.	J 25070 Heat Gun - 500-750F
Courtesy of GENERAL MOTORS CORP.	J 26941 Bushing and Bearing Remover - 3-4 in
Courtesy of GENERAL MOTORS CORP.	J 45124 Removal Bridge
