Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

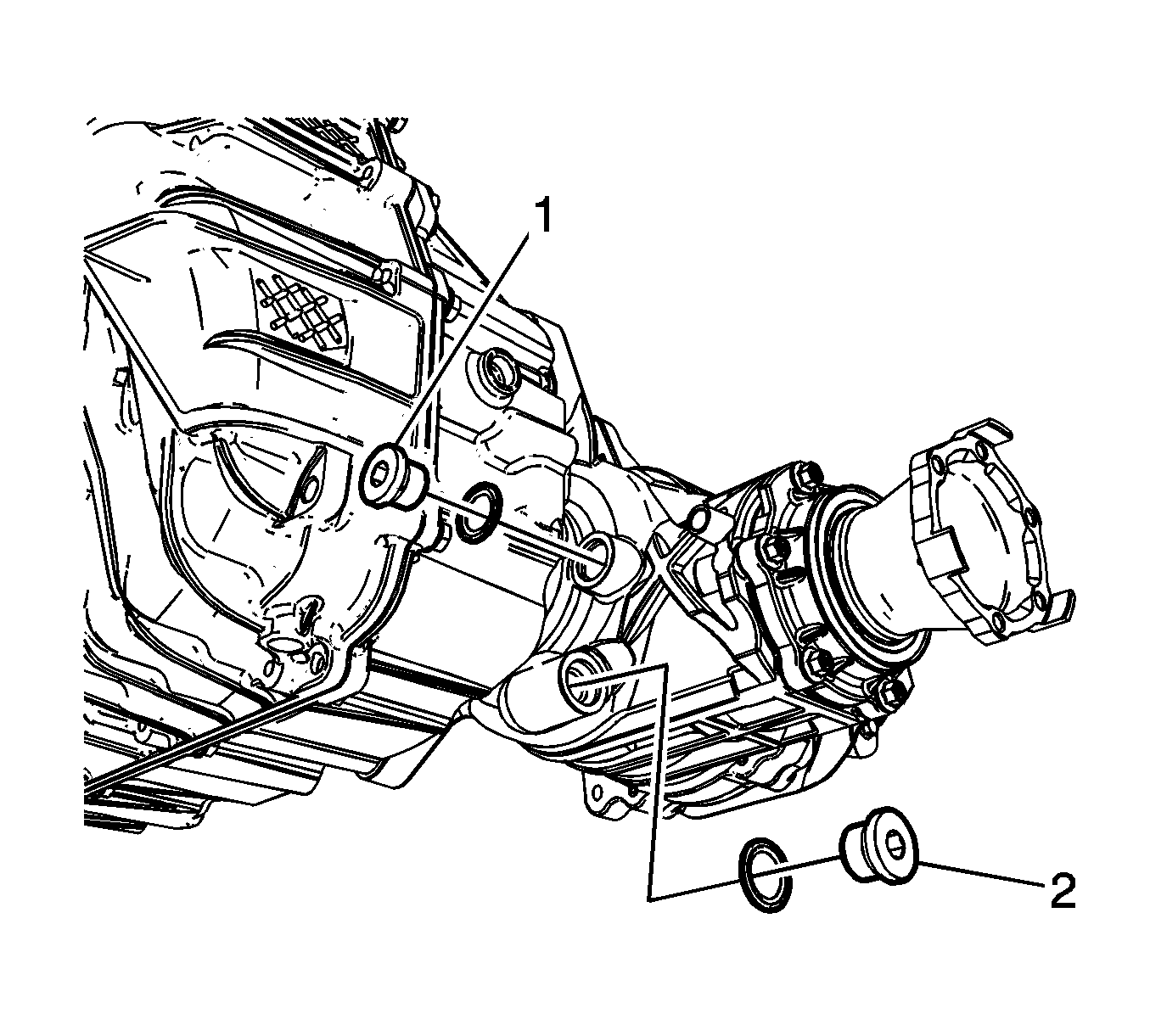

    2. Fig 1: Identifying Fill Plug & Drain Plug
    GM1824982Courtesy of GENERAL MOTORS CORP.
  2. Remove the drain plug (2).
  3. Remove the fill plug (1).
