Rear Output Shaft Housing Removal

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

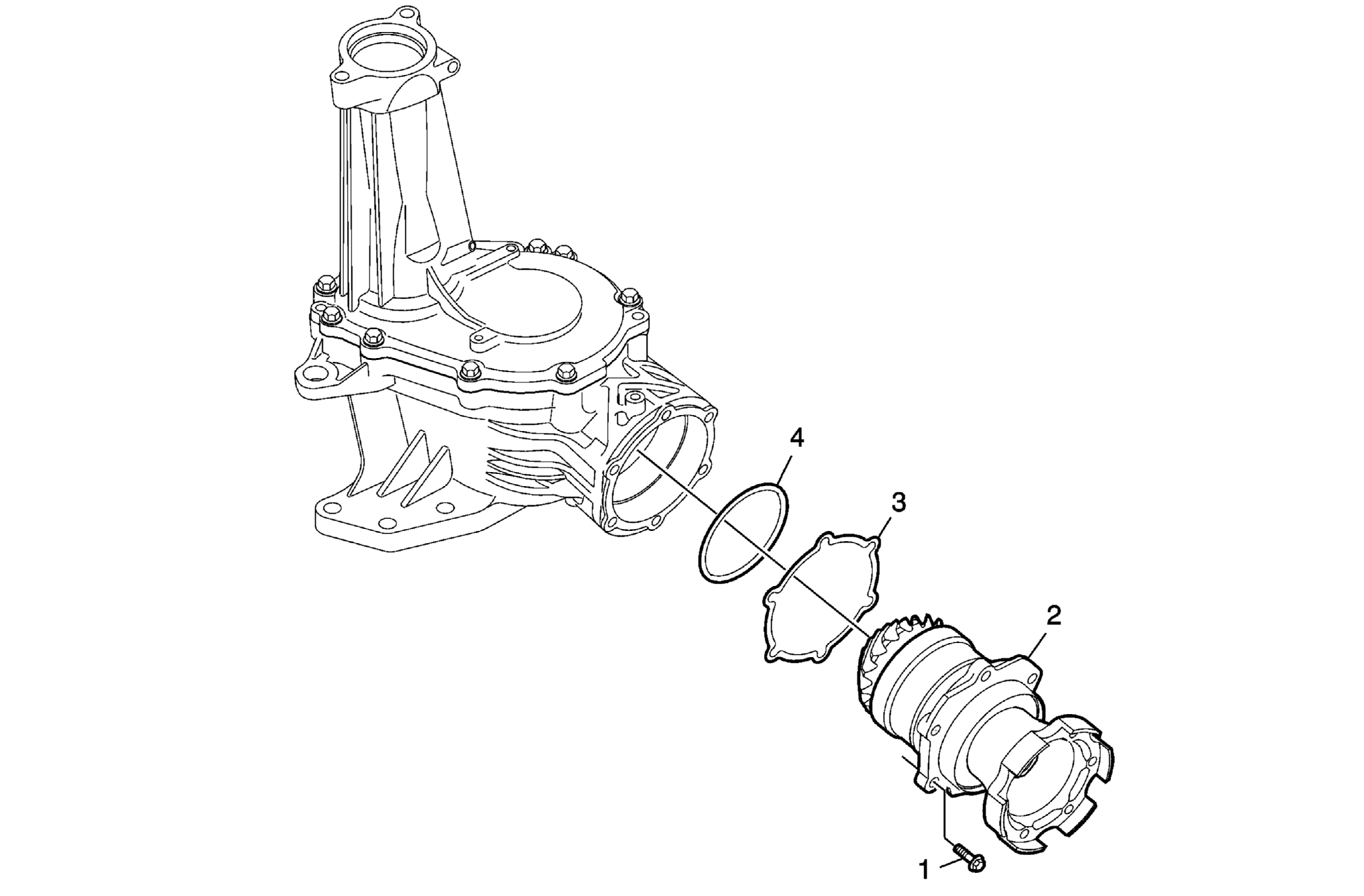

Fig 1: Identifying Rear Output Shaft Housing Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Rear Output Shaft Housing Bolt (Qty: 6)
2	Transfer Case Rear Output Shaft Housing Tip: Locate 2 screwdrivers or prybars to the flange area of the housing to ease removal. Special Tools: J 25070 Heat Gun - 500-750F
3	Transfer Case Rear Output Shim
4	Transfer Case Rear Output Shaft Housing Seal O-Ring Tip: Discard the O-ring after removal.
