Right Transfer Case, Input Shaft, and Output Drive Shaft Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Right Transfer Case, Input Shaft, and Output Drive Shaft Installation

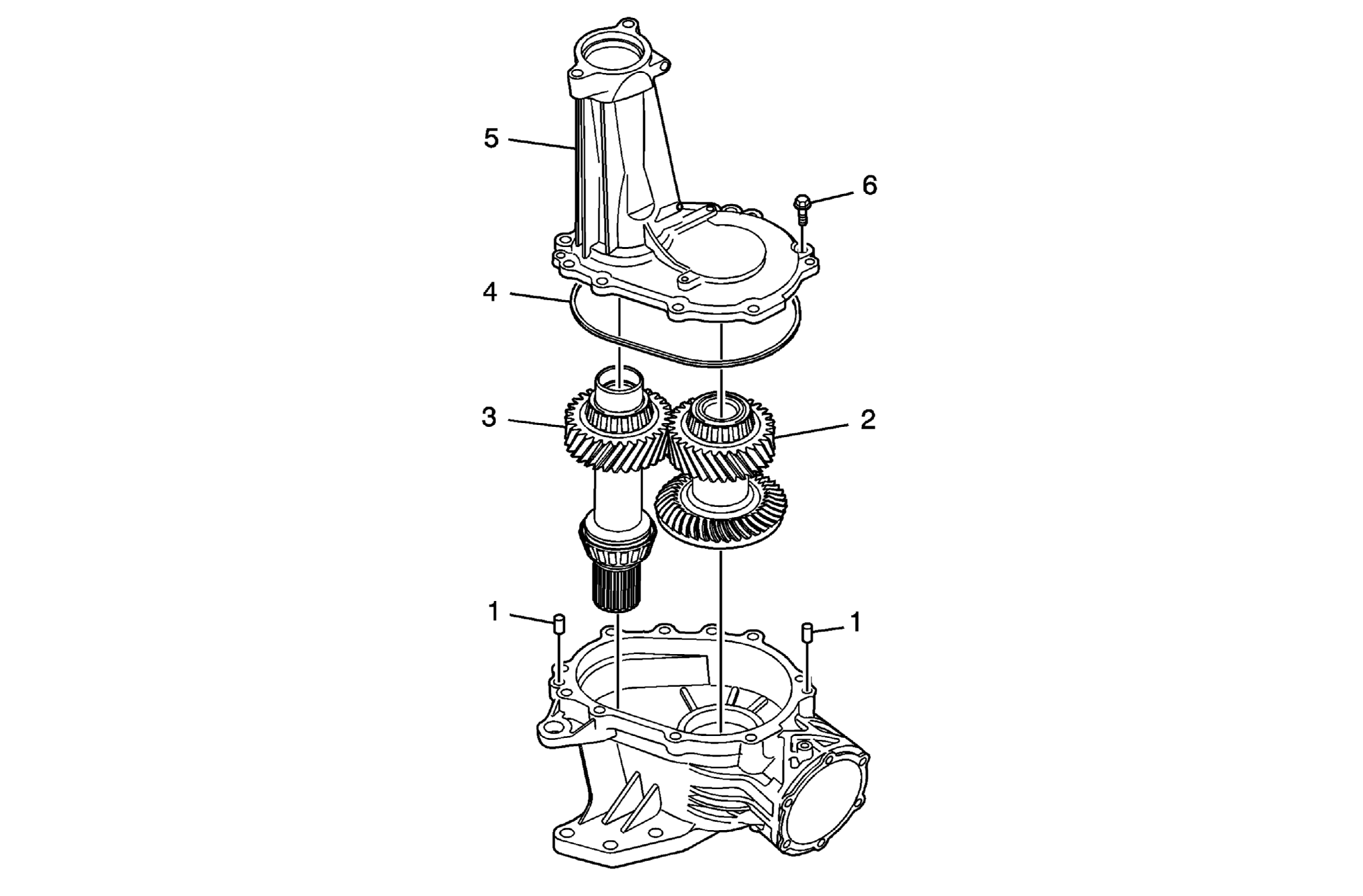

| Callout | Component Name |
|---|---|
| 1 | Transfer Case Half Locating Pins |
| 2 | Transfer Case Rear Output Drive Shaft |
| 3 | Transfer Case Input Shaft Tip: Install the input and output shafts as a set with the splines engaged. |
| 4 | Transfer Case Seal |
| 5 | Transfer Case - Right |
| 6 | Transfer Case Half Bolts (Qty: 12)
CAUTION:
Refer to Fastener Caution
.
Tighten: 29 N.m (21 lb ft) |
