Intermediate Drive Shaft Assembly

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

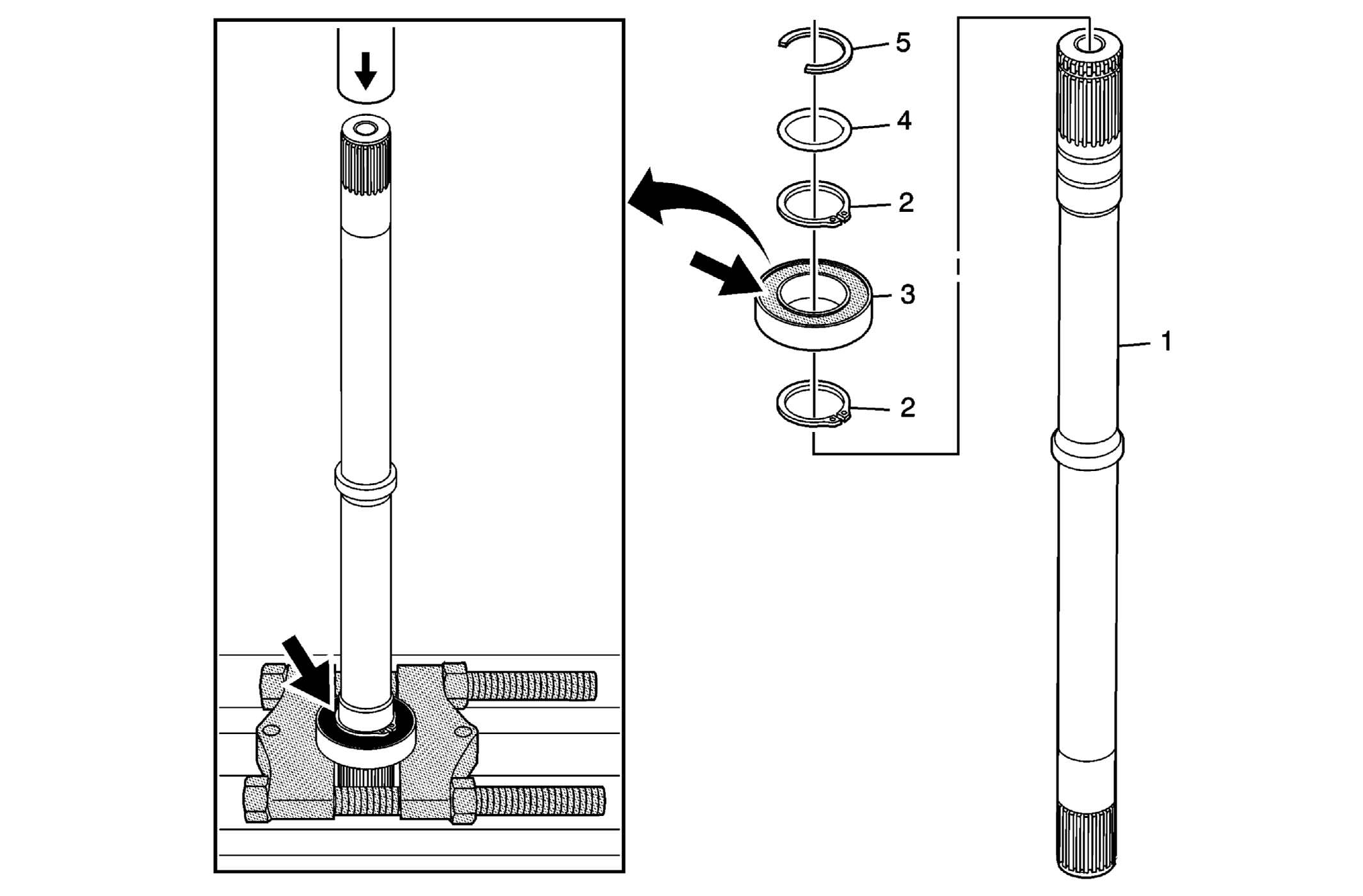

Fig 1: View Of Intermediate Drive Shaft Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Wheel Drive Intermediate Shaft
2	Front Wheel Drive Intermediate Shaft Bearing Retainers (Qty: 2)
3	Front Wheel Drive Intermediate Shaft Bearing Assembly Tip: Use a press, with the J-22912-B: rear pinion and axle bearing remover flat side up, in order to install the bearing assembly. Special Tools: J-22912-B: Rear Pinion and Axle Bearing Remover
4	O-Ring
5	Half Shaft Retainer
