Hybrid Controls Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

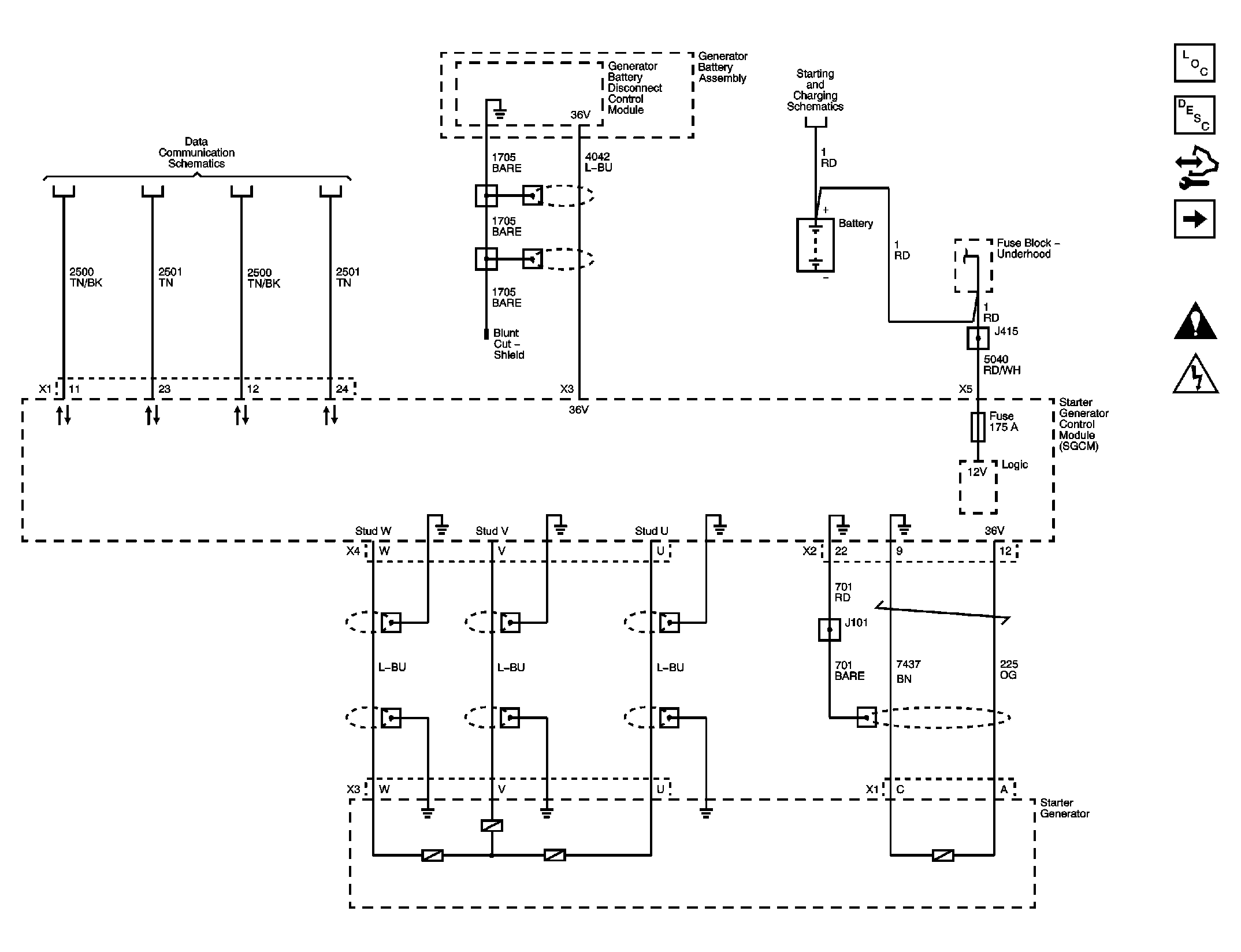

Fig 1: A/C Field Voltage
GM2079918Courtesy of GENERAL MOTORS CORP.

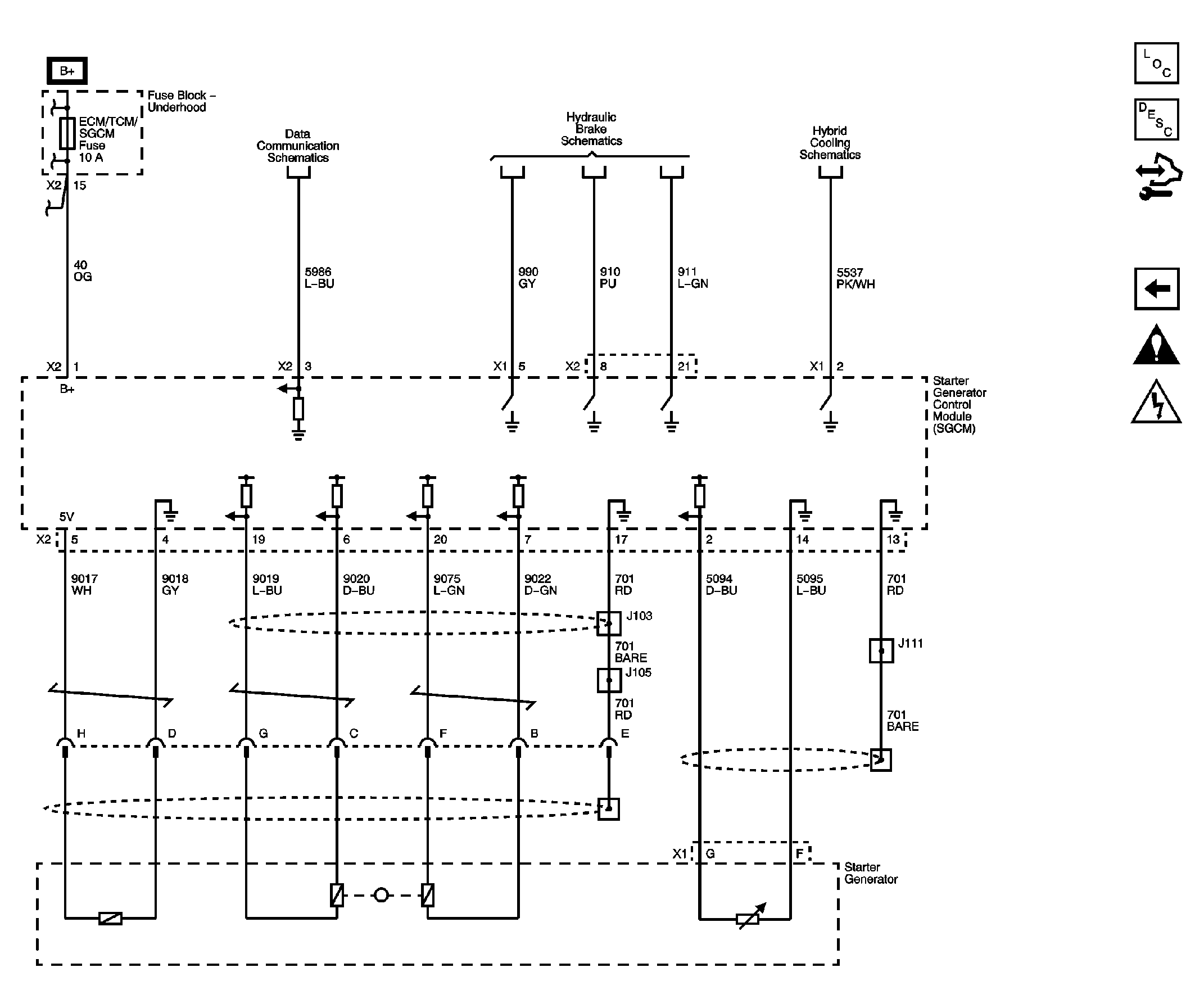

Fig 2: Motor Controls
GM2079923Courtesy of GENERAL MOTORS CORP.
