36-Volt Battery Negative Cable Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

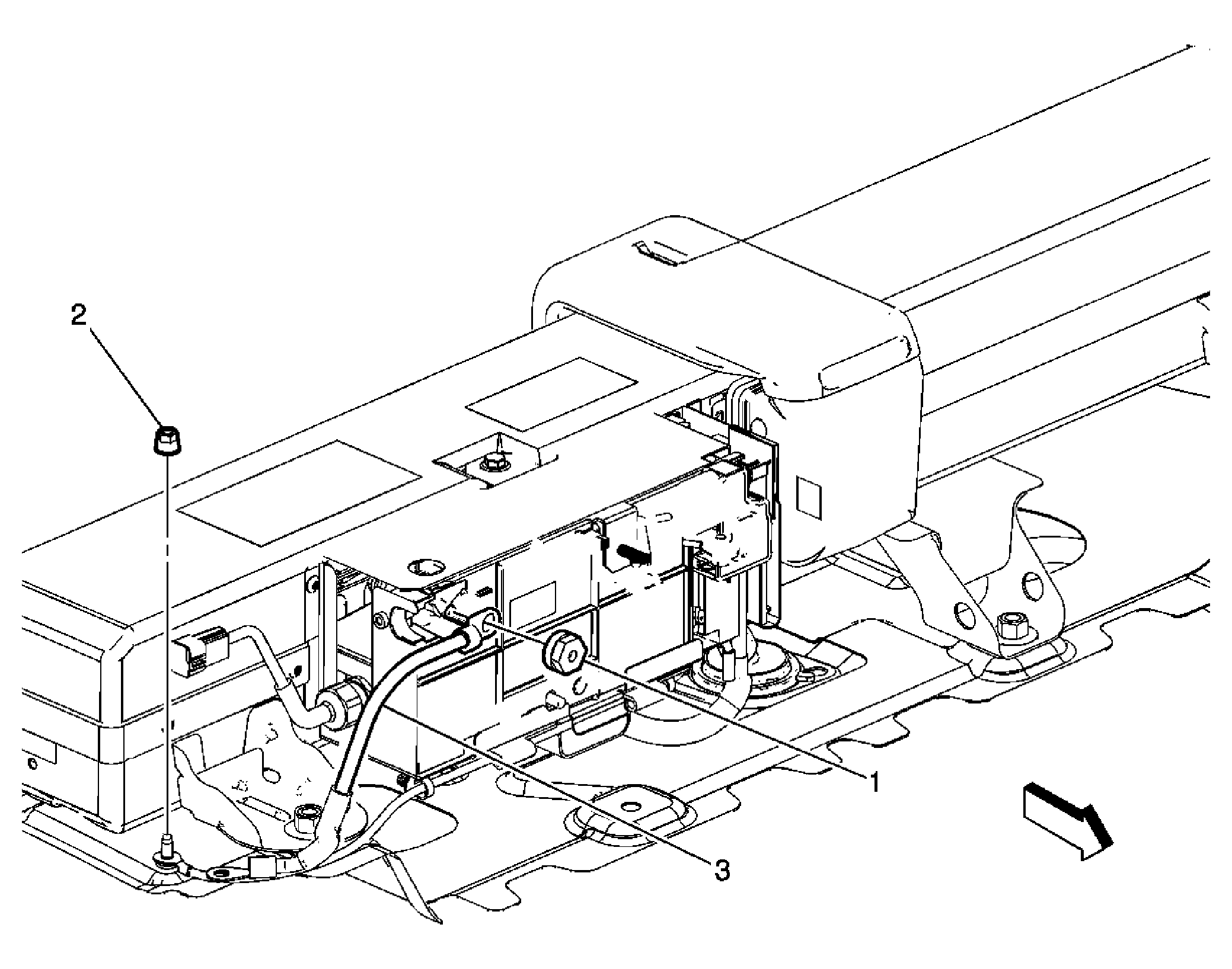

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disconnect the hybrid battery. Refer to Hybrid Battery Service Disconnect/Connect . |
|
| 1 | 36-Volt Negative Battery Cable Plastic Nut
WARNING:
To help avoid personal injury, be careful when working in the vicinity of the generator battery disconnect control module. Internal components will still be live, 36V potential, even when the cover has been opened or removed.
CAUTION:
Refer to Fastener Caution
. Procedure: Position the plastic nut to the negative battery cable and ensure the nipple is inserted to the terminal prior to installing the negative cable to the generator battery. Tighten: 10 N.m (89 lb in) |
| 2 | Wiring Harness Ground Nut Tighten: 10 N.m (89 lb in) |
| 3 | 36-Volt Negative Battery Cable |
