Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

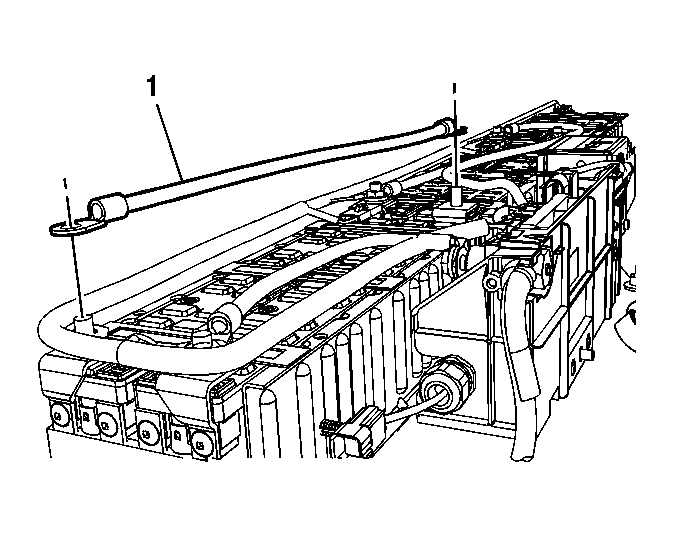

    Fig 1: 36-volt Battery Internal Cable
    GM2143774Courtesy of GENERAL MOTORS CORP.
  1. Install the 36-volt battery internal cable (1) to the battery.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the generator battery cable nuts and tighten to 8 N.m (71 lb in).
  3. Install the generator battery terminal rubber cups.
    4. Fig 2: Identifying Generator Battery Cover
    GM1892893Courtesy of GENERAL MOTORS CORP.
  4. Install the generator battery cover (1).
    5. Fig 3: Identifying Generator Battery Vent Fan & Cover Bolts
    GM1892888Courtesy of GENERAL MOTORS CORP.
  5. Install the 12 generator battery cover bolts (1) and tighten to 8 N.m (71 lb in).
  6. Install the 2 generator battery vent fan cover bolts (2) and tighten to 8 N.m (71 lb in).
  7. Connect the hybrid battery service disconnect. Refer to Hybrid Battery Service Disconnect/Connect .
