Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

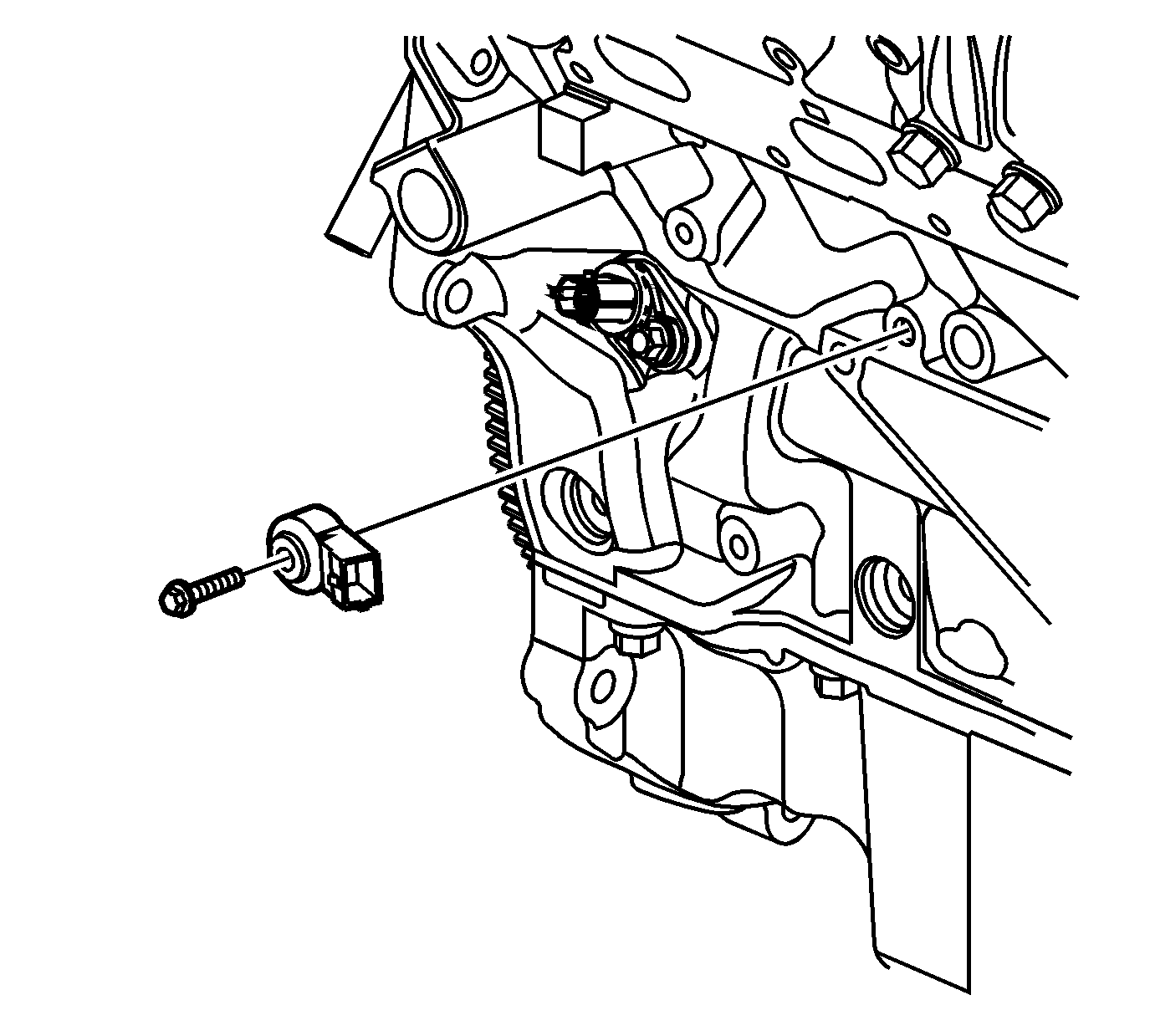

    Fig 1: View Of Right Knock Sensor & Bolt
    GM860801Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Position the knock sensor and tighten the knock sensor bolt to 23 N.m (17 lb ft).
    2. Fig 2: Identifying Engine Wiring Harness Electrical Connector
    GM1836545Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine wiring harness electrical connector (1) to the bank 1 knock sensor.
  3. Install the exhaust manifold heat shield.
  4. Install the right catalytic converter. Refer to Catalytic Converter Replacement - Right Side (LCS) .
