Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Ignition Coil View
    GM860797Courtesy of GENERAL MOTORS CORP.
  1. Install the ignition coils.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the ignition coil bolts and tighten to 10 N.m (89 lb in).

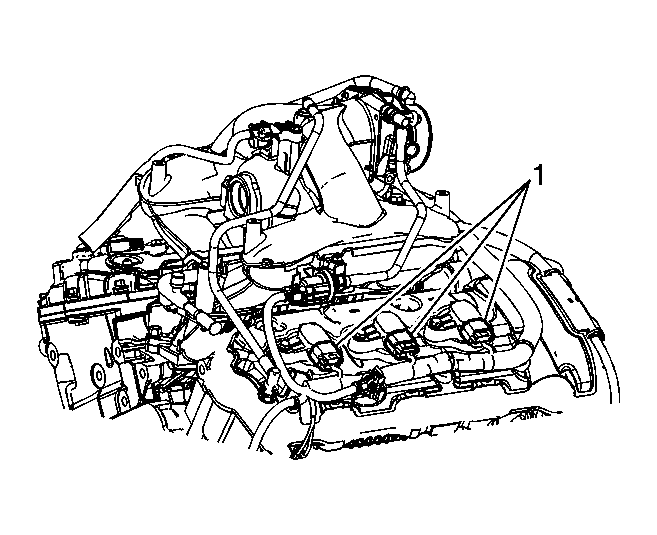

    3. Fig 2: Engine Wiring Harness Electrical Connectors
    GM1889242Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connectors (1) to the ignition coils.
  4. Install the intake manifold. Refer to Upper Intake Manifold Replacement (LCS) .
