Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Crankshaft Position (CKP) Sensor
    GM1311144Courtesy of GENERAL MOTORS CORP.
  1. Install the crankshaft position sensor.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the crankshaft position sensor bolt and tighten to 10 N.m (89 lb in).

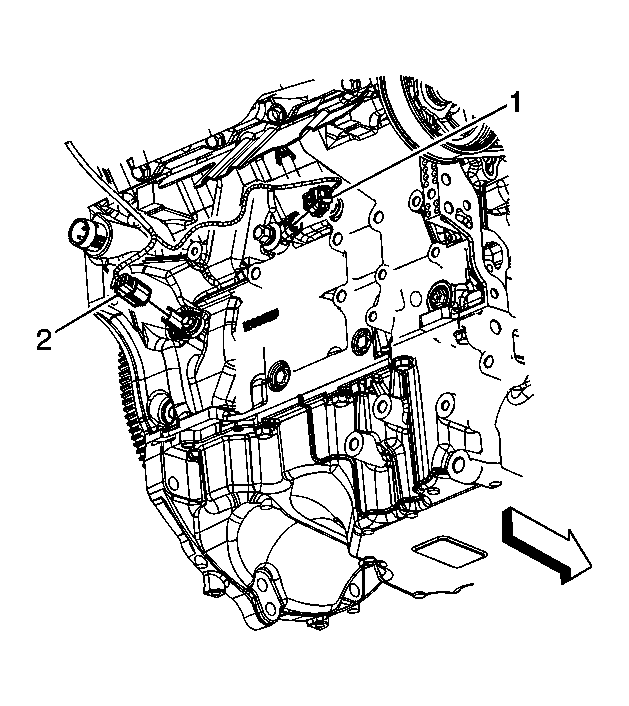

    3. Fig 2: Identifying Engine Wiring Harness Electrical Connector
    GM1836545Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector to the CKP sensor.
  4. If equipped with all AWD, install the transfer case. Refer to Transfer Case Assembly Replacement (LY7) .
  5. Lower the vehicle.
  6. Perform the Crankshaft Position System Variation Learn procedure. Refer to Crankshaft Position System Variation Learn .
