Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

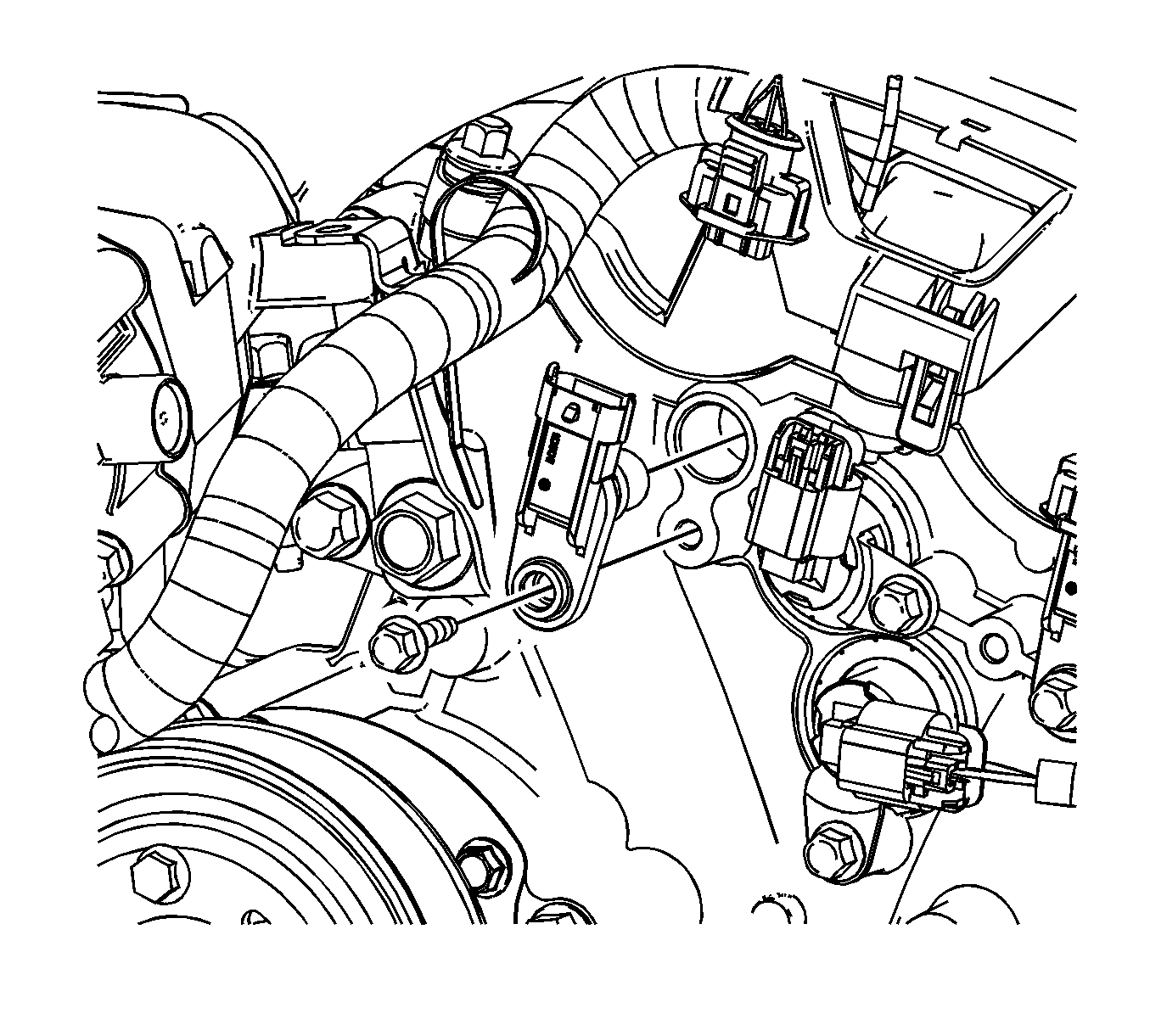

    Fig 1: View Of Left CMP Sensor - Intake
    GM1285241Courtesy of GENERAL MOTORS CORP.
  1. Install the CMP sensor.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the CMP sensor bolt and tighten to 10 N.m (89 lb in).

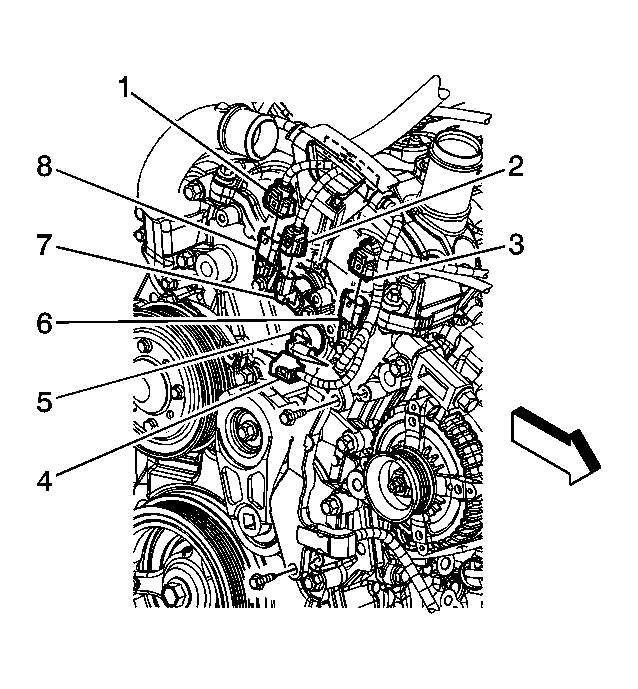

    3. Fig 2: Identifying Camshaft Position Actuator Solenoid Valve & Sensor Connectors
    GM1889266Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector (1) to the bank 2 intake CMP sensor (8).
  4. Install the engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side .
