Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Right CMP Sensor - Intake
    GM1285251Courtesy of GENERAL MOTORS CORP.
  1. Install the CMP sensor.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the CMP sensor bolt and tighten to 10 N.m (89 lb in).

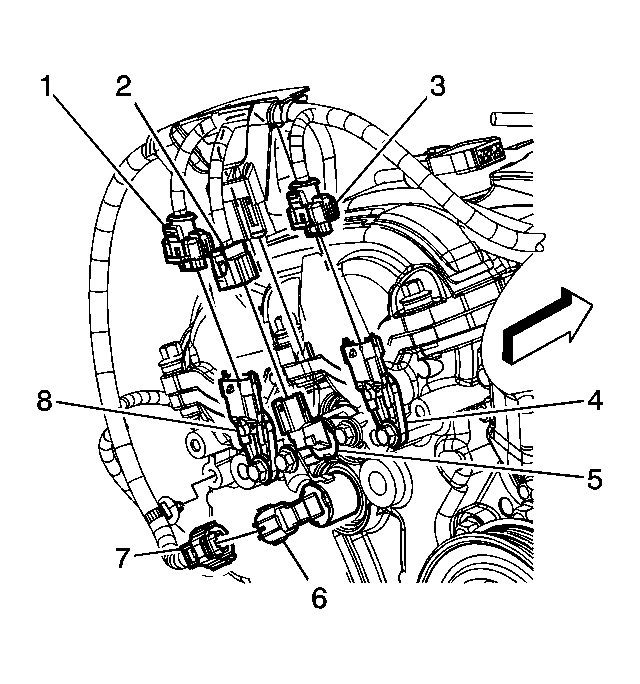

    3. Fig 2: Identifying Camshaft Position Sensor Connectors
    GM1889265Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector (2) to the bank 1 intake CMP sensor (4).
  4. Install the engine control module. Refer to Engine Control Module Replacement .
  5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
