Seal Locations
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

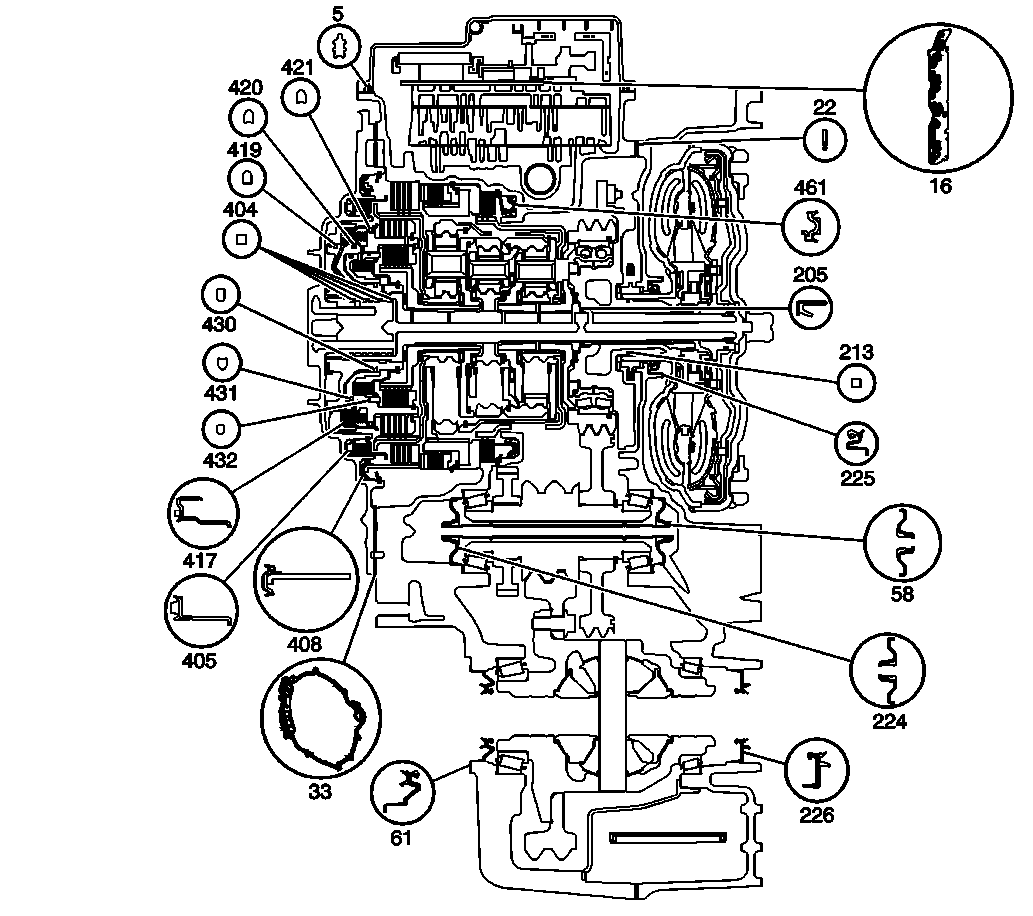

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 5 |
Control Valve Body Cover Assembly Gasket |
| 16 |
Control Solenoid (w/Body and TCM) Filter Plate Assembly |
| 22 |
Torque Converter Housing Outer Seal |
| 33 |
A/Trans Case Cover Gasket |
| 58 |
Front Differential Drive Pinion Gear Lube Dam |
| 61 |
Front Wheel Drive Shaft Oil Seal Assembly |
| 205 |
Front Differential Transfer Drive Gear Support Seal Assembly |
| 213 |
Front Differential Transfer Drive Gear Support Seal |
| 224 |
Front Differential Drive Pinion Gear Lube Dam |
| 225 |
Torque Converter Fluid Seal Assembly |
| 226 |
Front Wheel Drive Shaft Oil Seal Assembly |
| 404 |
3-5-Reverse and 4-5-6 Clutch Fluid Seal Ring |
| 405 |
2-6 Clutch Piston |
| 408 |
Low and Reverse Clutch Piston Assembly |
| 417 |
3-5-Reverse Clutch Piston |
| 419 |
3-5-Reverse Clutch Piston Inner Seal |
| 420 |
3-5-Reverse Clutch Piston Inner Seal |
| 421 |
3-5-Reverse Clutch Piston Dam Seal |
| 430 |
4-5-6 Clutch Piston Inner Seal |
| 431 |
4-5-6 Clutch Piston Outer Seal |
| 432 |
4-5-6 Clutch Piston Outer Seal |
| 461 |
1-2-3-4 Clutch Piston |

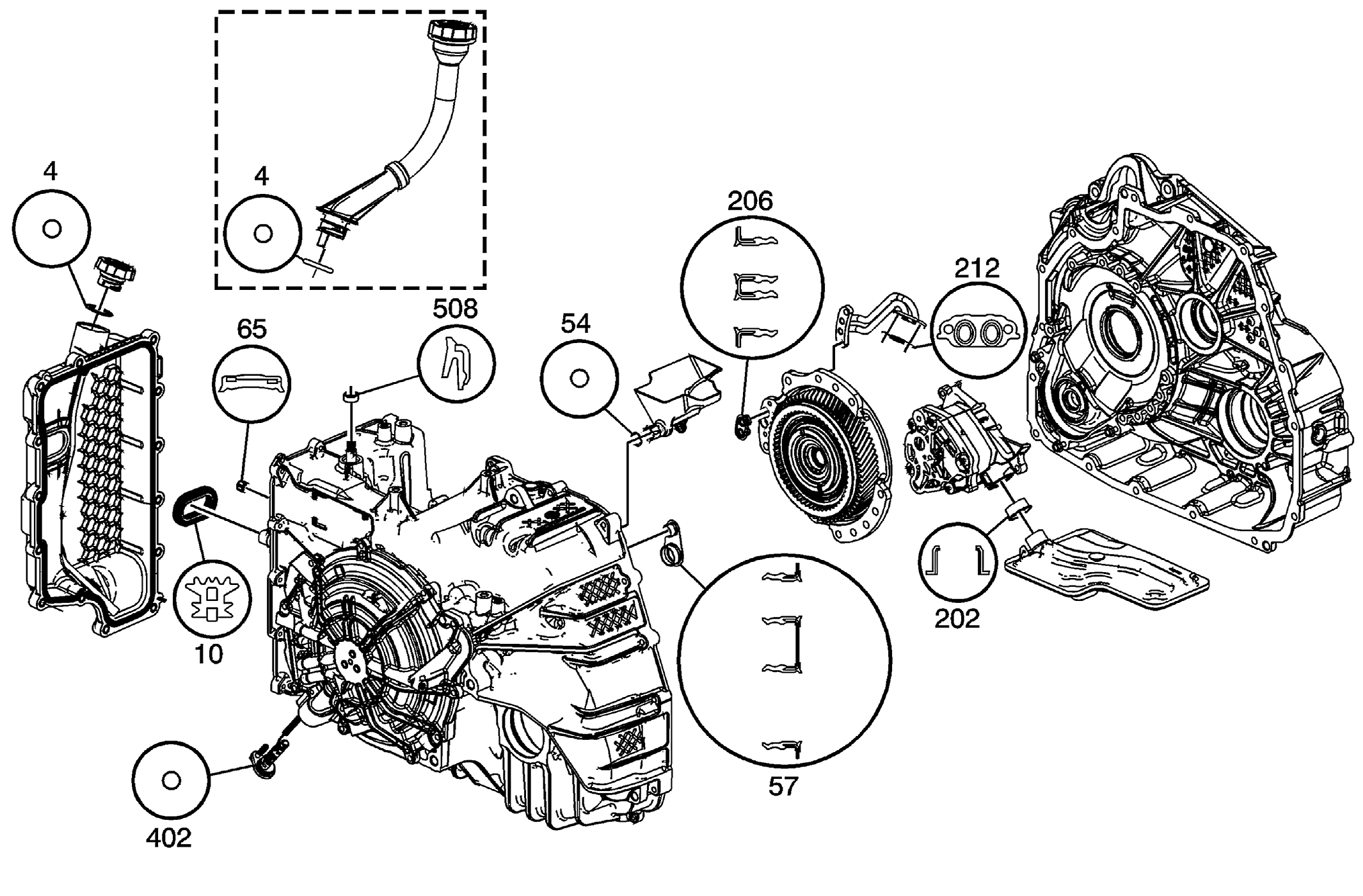

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 4 |
Fluid Level Indicator Tube Seal - Model Dependent |
| 10 |
Control Valve Body Cover Wiring Connector Hole Seal |
| 54 |
A/Trans Fluid Trough O-Ring Seal |
| 57 |
A/Trans Pump Fluid Outlet Seal Assembly |
| 65 |
1-2-3-4 Clutch Fluid Passage Seal |
| 202 |
Filter Neck Seal |
| 206 |
Front Differential Transfer Drive Gear Support Torque Converter Fluid Seal Assembly |
| 212 |
Front Differential Transfer Drive Gear Support Fluid Passage Tube Gasket |
| 402 |
ISS O-Ring Seal |
| 508 |
Manual Shift Shaft Seal |
