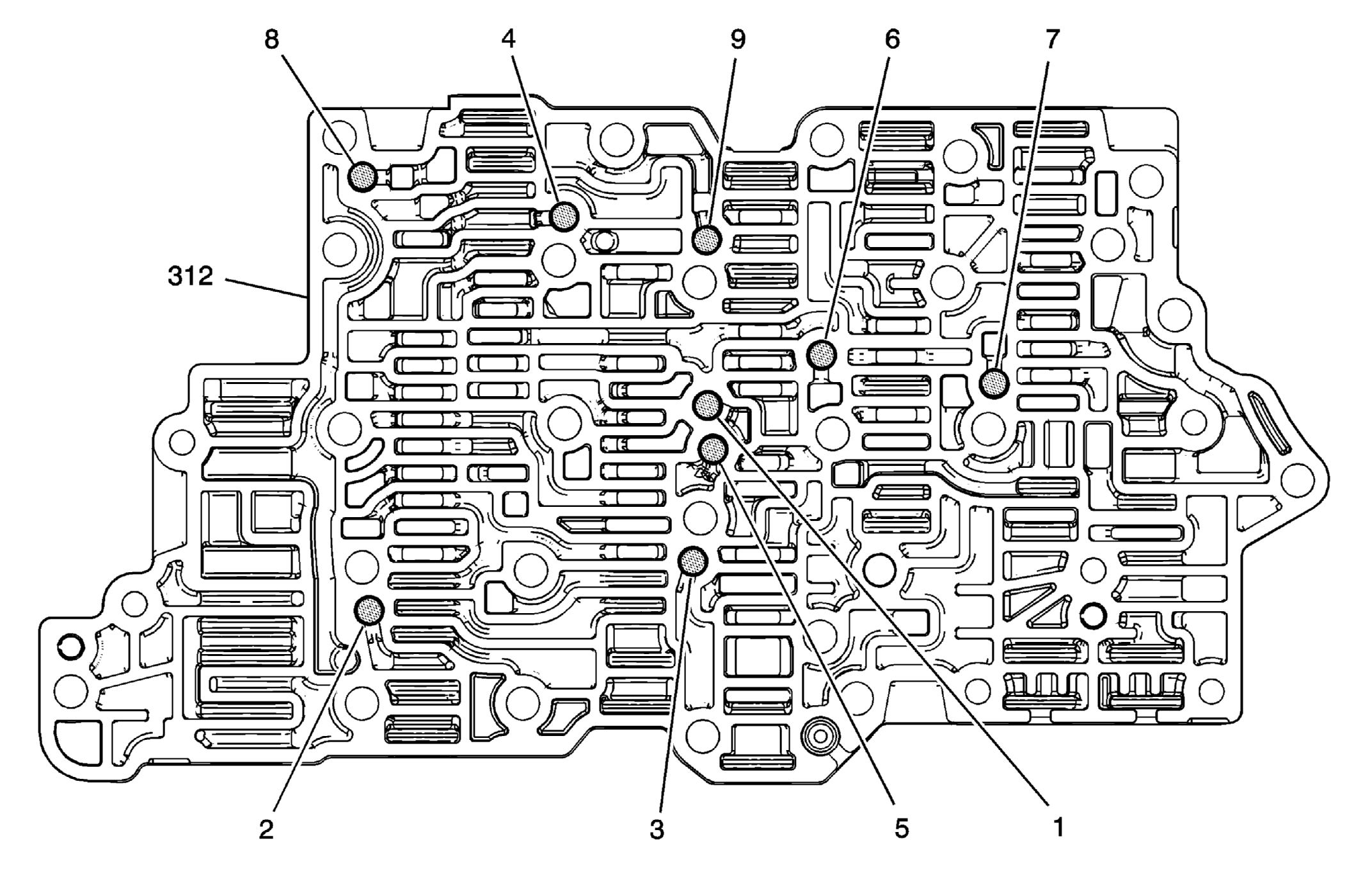

Ball Check Valve Locations
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| I.D. | Input Oil | Input Oil | Output Oil |
|---|---|---|---|
| 1 | Drive 1-6 | DRV B | 26/1234 CL Feed |
| 2 | Solenoid 1 | Reverse | CSV2 Enable |
| 3 | Solenoid 2 | 456 | CSV3 Enable |
| 4 | PS4 | 456 | CSV2 Latch |
| 5 | Drive 1-6 | 35 Rev FD | 35 Rev Supply |
| 6 | 2-6/1234 | - | 1234 Clutch Feed |
| 7 | 35R Supply | - | 35R Clutch Feed |
| 8 | Low/Rev Supply | - | Low/Rev Clutch Feed |
| 9 | 456 Clutch Supply | - | 456 Clutch Feed |
