Seal Locations
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

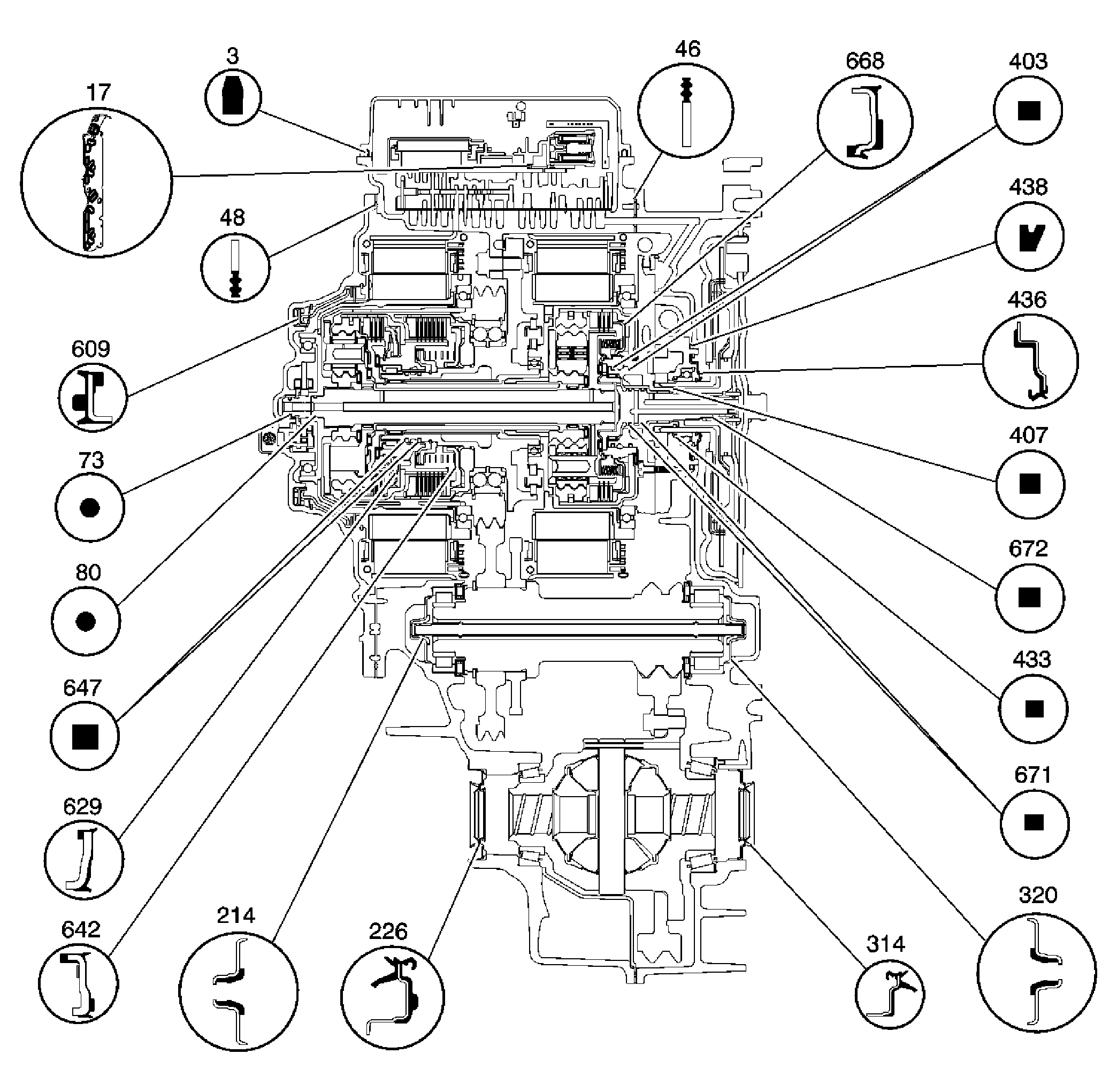

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 3 |
Control Valve Body Cover Gasket |
| 17 |
Control Solenoid Valve Filter Plate |
| 46 |
Torque Dampener Housing Outer Seal |
| 48 |
A/Trans Case Cover Gasket |
| 73 |
Drive Motor/Generator Rotor Lube Seal |
| 80 |
Output Sun Gear Shaft Lube O-Ring Seal |
| 214 |
Front Differential Drive Pinion Gear Lube Dam |
| 226 |
Front Wheel Drive Shaft Oil Seal Assembly (LHS) |
| 314 |
Front Wheel Drive Shaft Oil Seal Assembly (RHS) |
| 320 |
Front Differential Drive Pinion Gear Lube Dam |
| 403 |
1-3 Reverse Clutch Housing Seal |
| 407 |
A/Trans Fluid Pump Seal |
| 433 |
A/Trans Torque Dampener Bearing Seal |
| 436 |
A/Trans Torque Dampener Fluid Seal Assembly |
| 438 |
A/Trans Fluid Pump Seal |
| 609 |
4th Clutch Piston Assembly |
| 629 |
Variable Hi and 2-3-4 Clutch Piston Assembly |
| 642 |
Variable Low and 1-2 Reverse Clutch Piston Assembly |
| 647 |
Variable Hi and 2-3-4 Clutch Seal |
| 668 |
1-3 Reverse Clutch Piston |
| 671 |
Input Shaft Seals Qty: 2 |
| 672 |
Input Shaft Seals Qty: 2 |

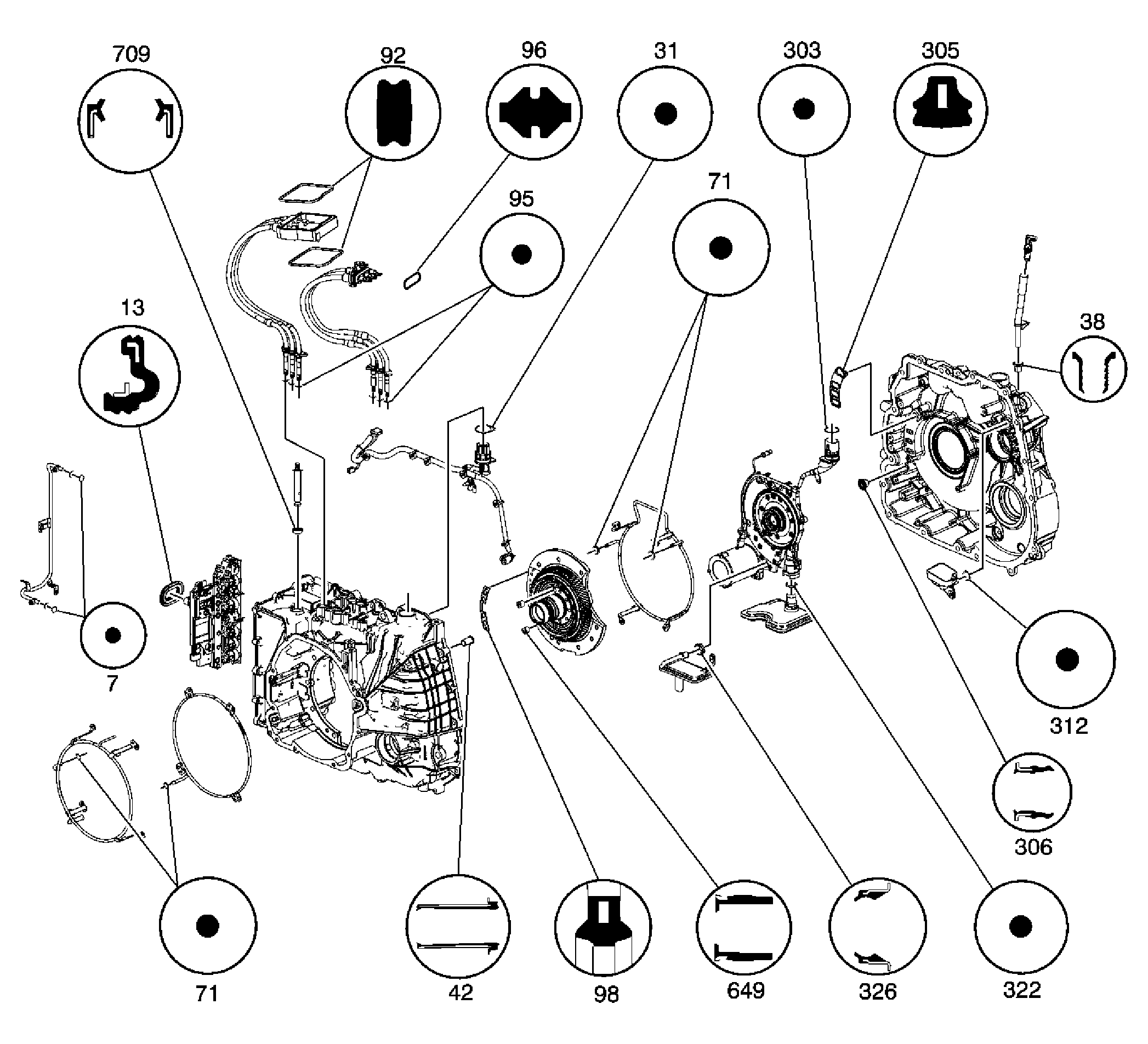

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 7 |
Transmission Fluid Cooler Outlet Seal |
| 13 |
Control Valve Body Cover Wiring Connector Hole Seal |
| 31 |
Wiring Connector Seal |
| 38 |
Transmission Fluid Filler Tube Seal |
| 42 |
A/Trans Pump Fluid Outlet Seal Assembly |
| 71 |
Drive Motor/Generator Stator Cooling Tube Seal Qty: 2 |
| 92 |
Drive Motor/Generator Power Inverter Module Cable Housing Cover Seal |
| 95 |
Drive Motor/Generator Power Inverter Module Cable Assembly Seal - 3 Phase |
| 96 |
Drive Motor/Generator Power Inverter Module Cable Terminal External Bolt Seal |
| 98 |
Center Support Oil Passage Seal |
| 303 |
Pump Wiring Harness Connector Seal |
| 305 |
A/Trans Fluid Pump Seal Assembly |
| 306 |
A/Trans Pump Fluid Outlet Seal Assembly |
| 312 |
A/Trans Fluid Trough Seal |
| 322 |
A/Trans Fluid Filter Seal |
| 326 |
A/Trans Auxiliary Fluid Filter Seal Assembly |
| 649 |
Variable Low and 1-2 Reverse Clutch Housing Fluid Passage Seal Qty: 2 |
| 709 |
Manual Shift Shaft Seal |
