Ball Check Valve Locations

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

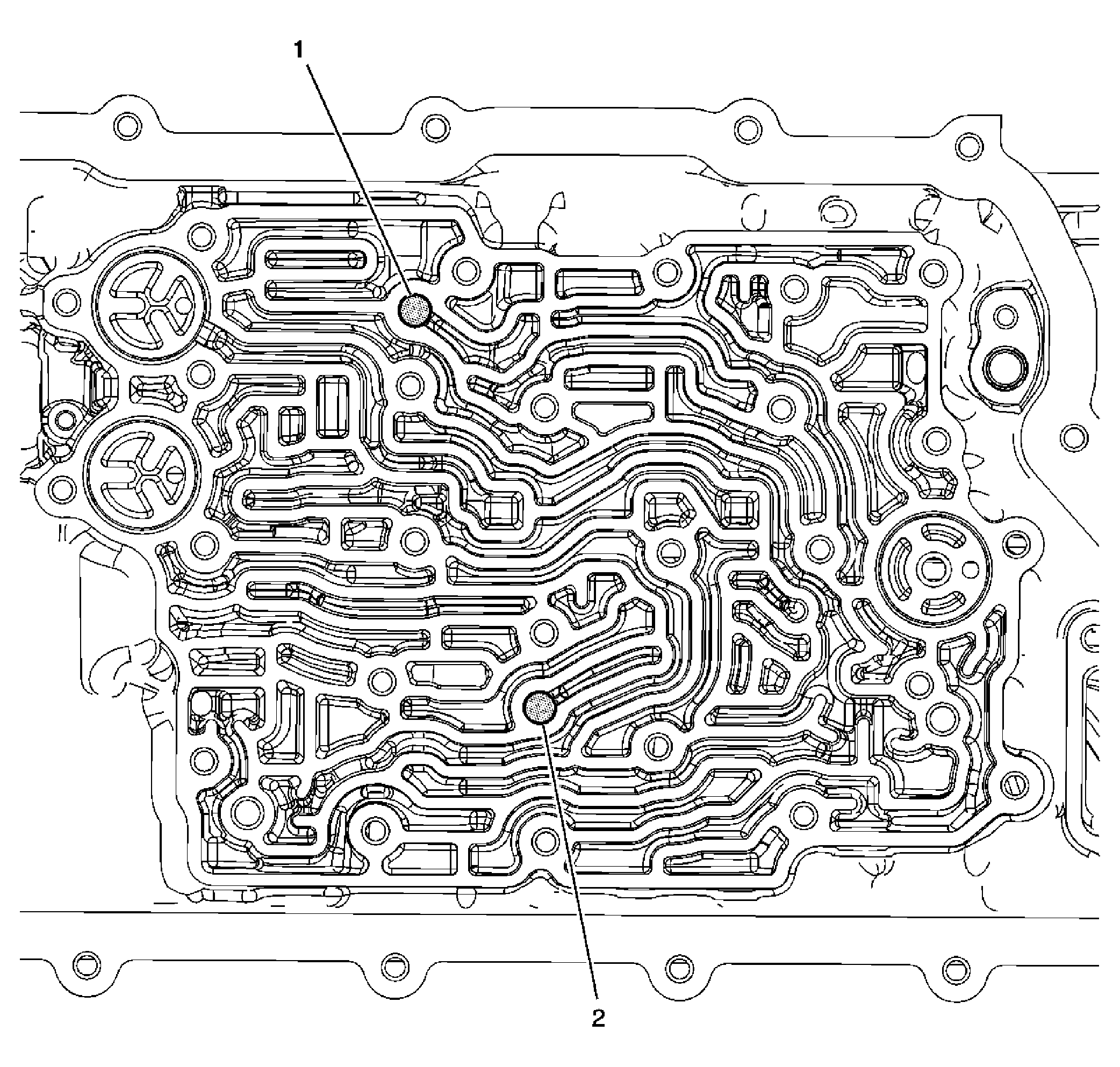

Fig 1: Transmission Case - Ball Check Valve Location #1

Courtesy of GENERAL MOTORS CORP.

Transmission Case - Ball Check Valve Location #1

Callout	Ball Check Valve I.D.	Input Oil	Output Oil
1	#2	B Cooling Feed	Motor B Cooling
2	#1	A Cooling Feed	Motor A Cooling

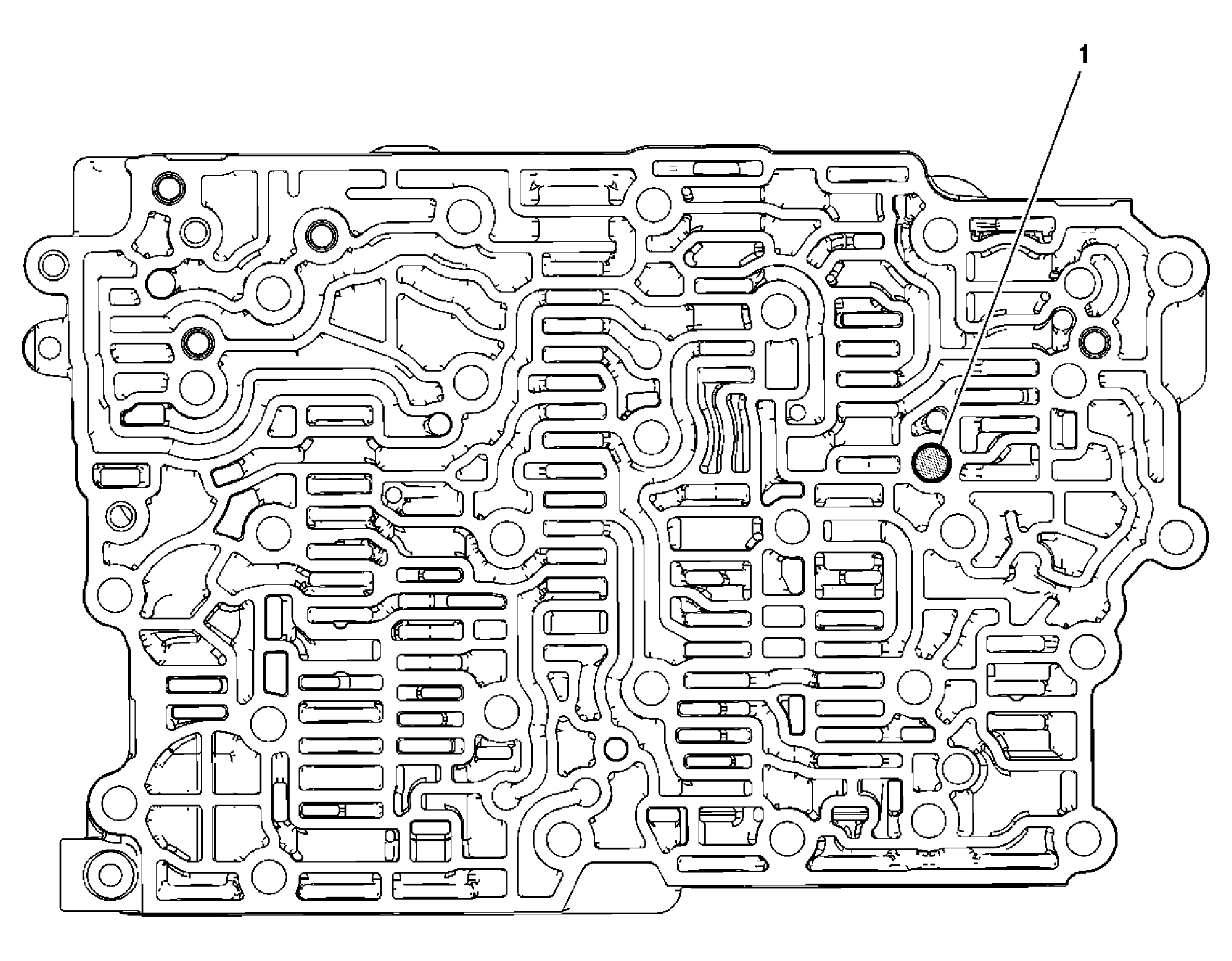

Fig 2: Control Valve Body - Ball Check Valve Location #2

Courtesy of GENERAL MOTORS CORP.

Control Valve Body - Ball Check Valve Location #2

Callout	Ball Check Valve I.D.	Input Oil	Output Oil
1	#3	1-3 Reverse Clutch Feedback	Actuator Feed Limit
