Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transaxle mount to the frame.

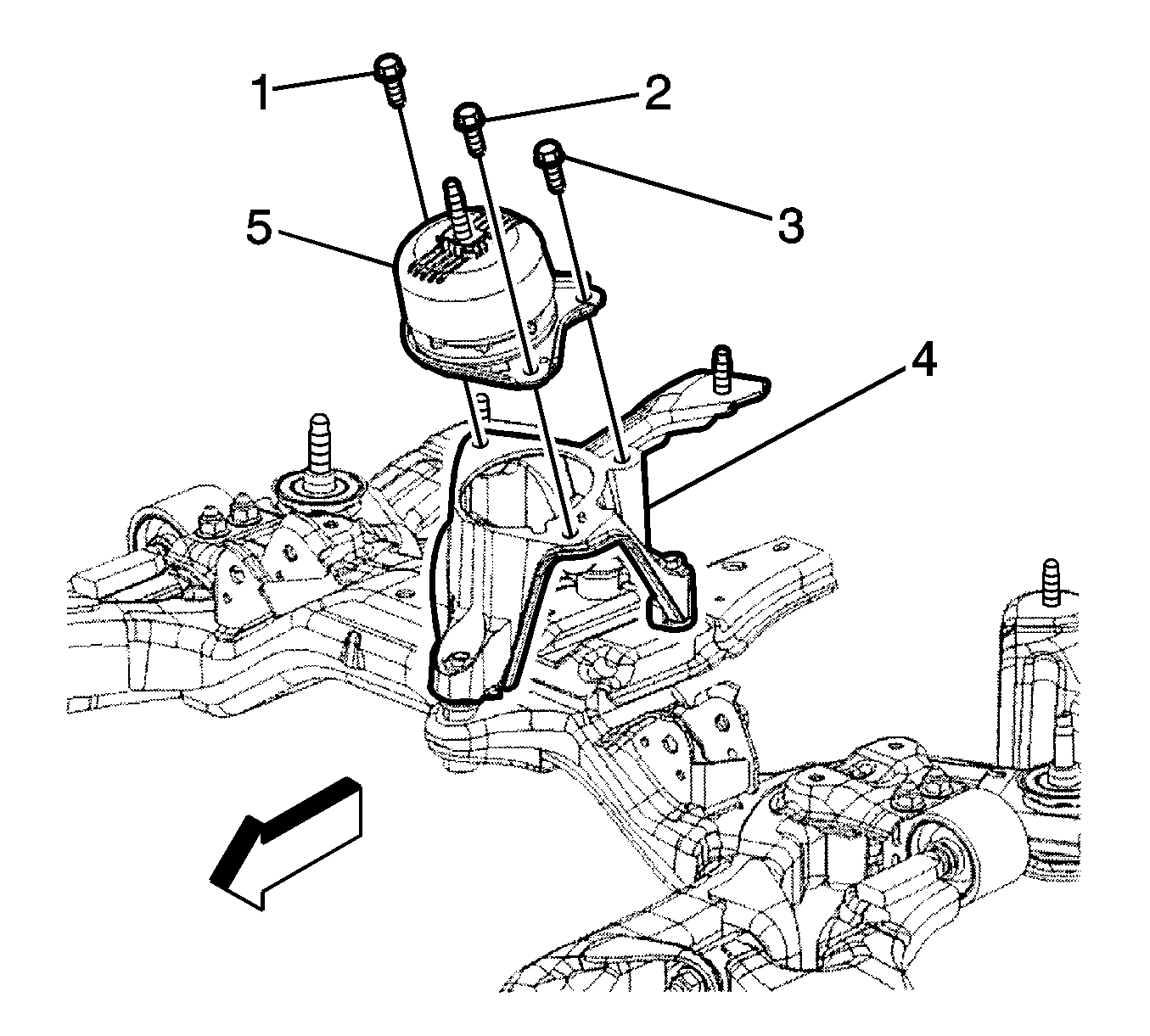

    2. Fig 1: Rear Transaxle Mount-To-Frame Attachment
    GM2165656Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the mount fasteners using the following sequence:
    1. Finger tighten the three bolts.
    2. Tighten bolt 1 to 76 N.m (56 lb ft).
    3. Tighten bolt 2 to 76 N.m (56 lb ft).
    4. Tighten bolt 3 to 76 N.m (56 lb ft).
  3. Lower the powertrain assembly on the mounts.
    4. NOTE: Front and rear mounts are to be torqued after the powertrain is fully seated on the mounts. This will eliminate any twist in the rubber element induced to not preloading the mount before applying torque.
  4. Install the front and rear mount retaining nuts, then tighten to 100 N.m (74 lb ft)..
  5. Install the powertrain in the vehicle. Refer to Transmission Replacement .
