Transmission Fluid Cooler Thermal Bypass Valve Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

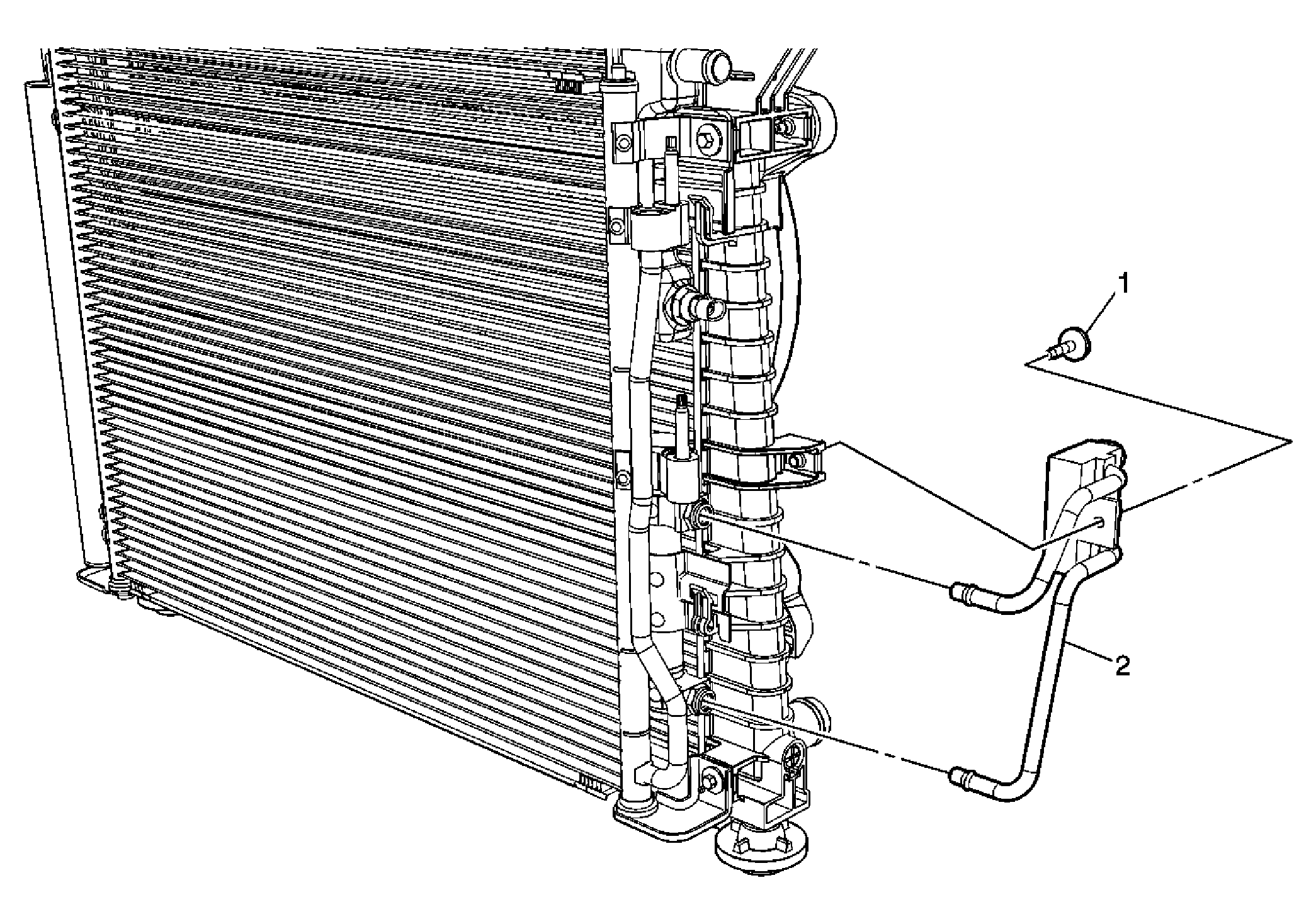

Fig 1: Transmission Fluid Cooler Thermal Bypass Valve

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove left headlamps. Refer to Headlamp Replacement . Remove the transmission fluid auxiliary cooler inlet pipe. Refer to Transmission Fluid Auxiliary Cooler Inlet Pipe Replacement . Remove the transmission fluid auxiliary cooler outlet pipe. Refer to Transmission Fluid Auxiliary Cooler Outlet Pipe Replacement .
1	Transmission Fluid Cooler Thermal Bypass Valve Bolt
2	Transmission Fluid Cooler Thermal Bypass Valve Procedure: Disconnect the quick connect fittings at the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .

Callout

Component Name

Preliminary Procedures

Remove left headlamps. Refer to Headlamp Replacement .
Remove the transmission fluid auxiliary cooler inlet pipe. Refer to Transmission Fluid Auxiliary Cooler Inlet Pipe Replacement .
Remove the transmission fluid auxiliary cooler outlet pipe. Refer to Transmission Fluid Auxiliary Cooler Outlet Pipe Replacement .

Transmission Fluid Cooler Thermal Bypass Valve Bolt

Transmission Fluid Cooler Thermal Bypass Valve
Procedure:
Disconnect the quick connect fittings at the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
