Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

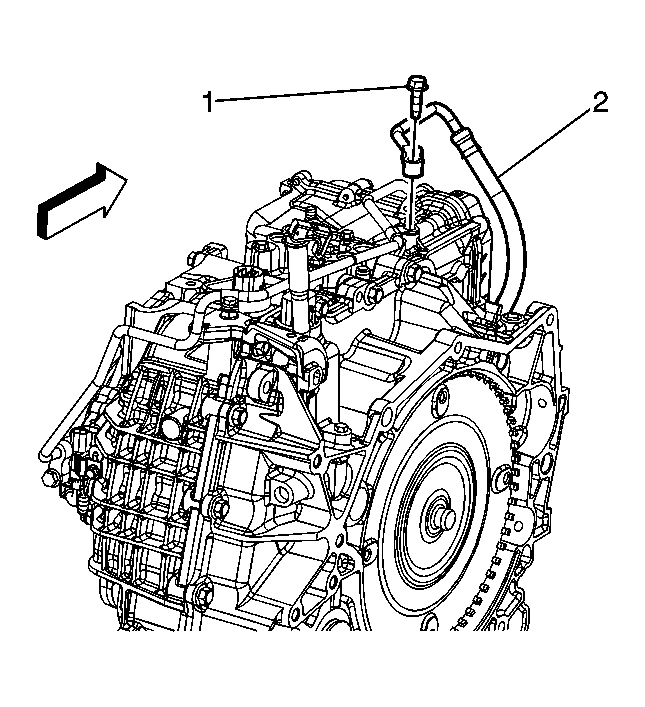

Fig 1: Fluid Auxiliary Cooler Inlet Pipe Bolt And Fluid Auxiliary Cooler Inlet Pipe

Courtesy of GENERAL MOTORS CORP.

Install the transmission fluid auxiliary cooler inlet pipe (2) to the vehicle.

CAUTION: Refer to Fastener Caution .

Install the transmission fluid auxiliary cooler inlet pipe bolt (1) and tighten to 22 N.m (16 lb ft)

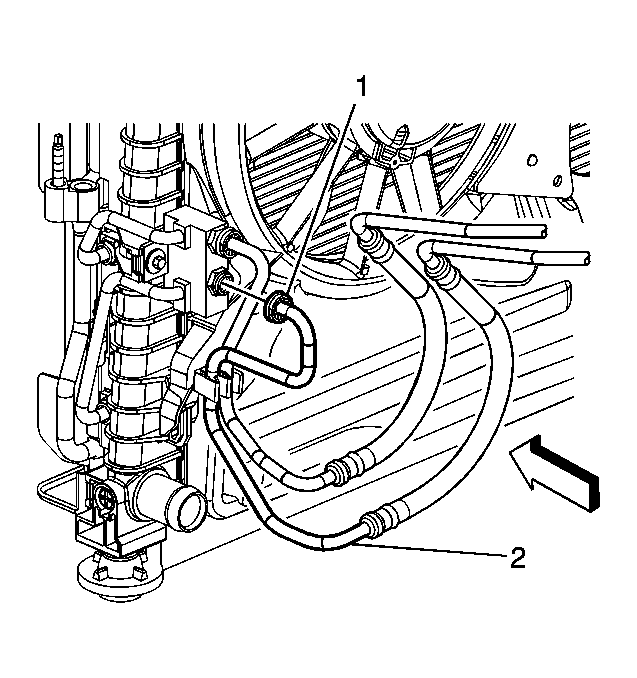

Fig 2: Outlet Pipe Quick Connect Fitting And Fluid Auxiliary Cooler Inlet Pipe

Courtesy of GENERAL MOTORS CORP.

Install the transmission fluid auxiliary cooler inlet pipe (2) to the thermal bypass valve.
Connect the transmission fluid auxiliary cooler outlet pipe quick connect fitting (1) at the thermal bypass valve. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
Install the drive motor generator power inverter module support. Refer to Generator Control Module Bracket Replacement .
