Variable Low and 1-2 Reverse Clutch Piston Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

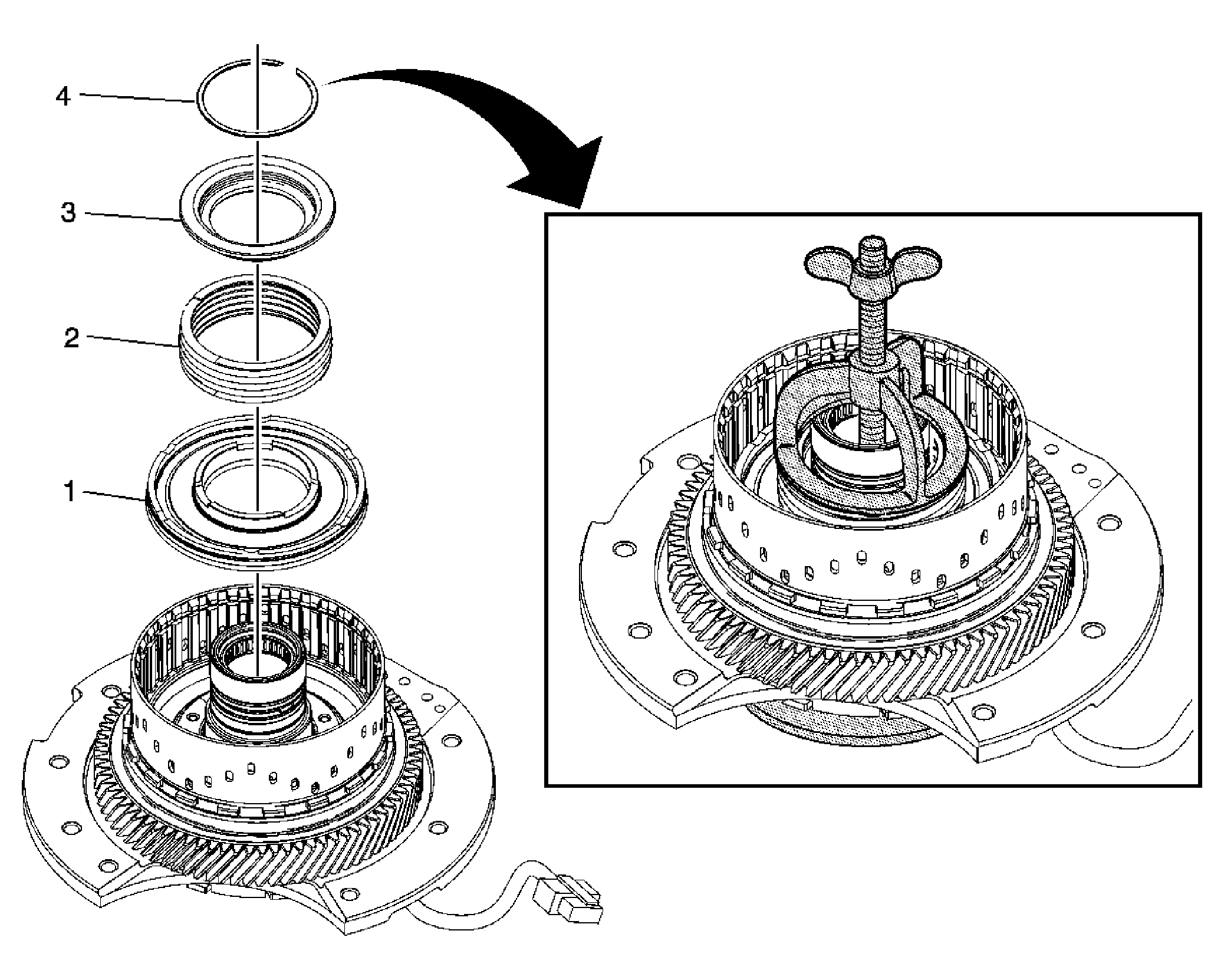

Fig 1: Variable Low and 1-2 Reverse Clutch Piston

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Clean and inspect all components for damage or wear.
1	Variable Low and 1-2 Reverse Clutch Piston Assembly
2	Variable Low and 1-2 Reverse Clutch Spring
3	Variable Low and 1-2 Reverse Clutch Spring Retainer
4	Variable Low and 1-2 Reverse Clutch Spring Retaining Washer Retaining Ring Tip: Use J 21420-2, J 23327-1 and J 23327-2 which is part of J 23327 to compress the Variable Low and 1-2 Reverse Clutch Piston Assembly. Special Tools: J 23327: Clutch Spring Compressor For equivalent regional tools, refer to Special Tools .
