Variable Low and 1-2 Reverse Clutch Housing and Front Differential Transfer Drive Gear Assemble

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

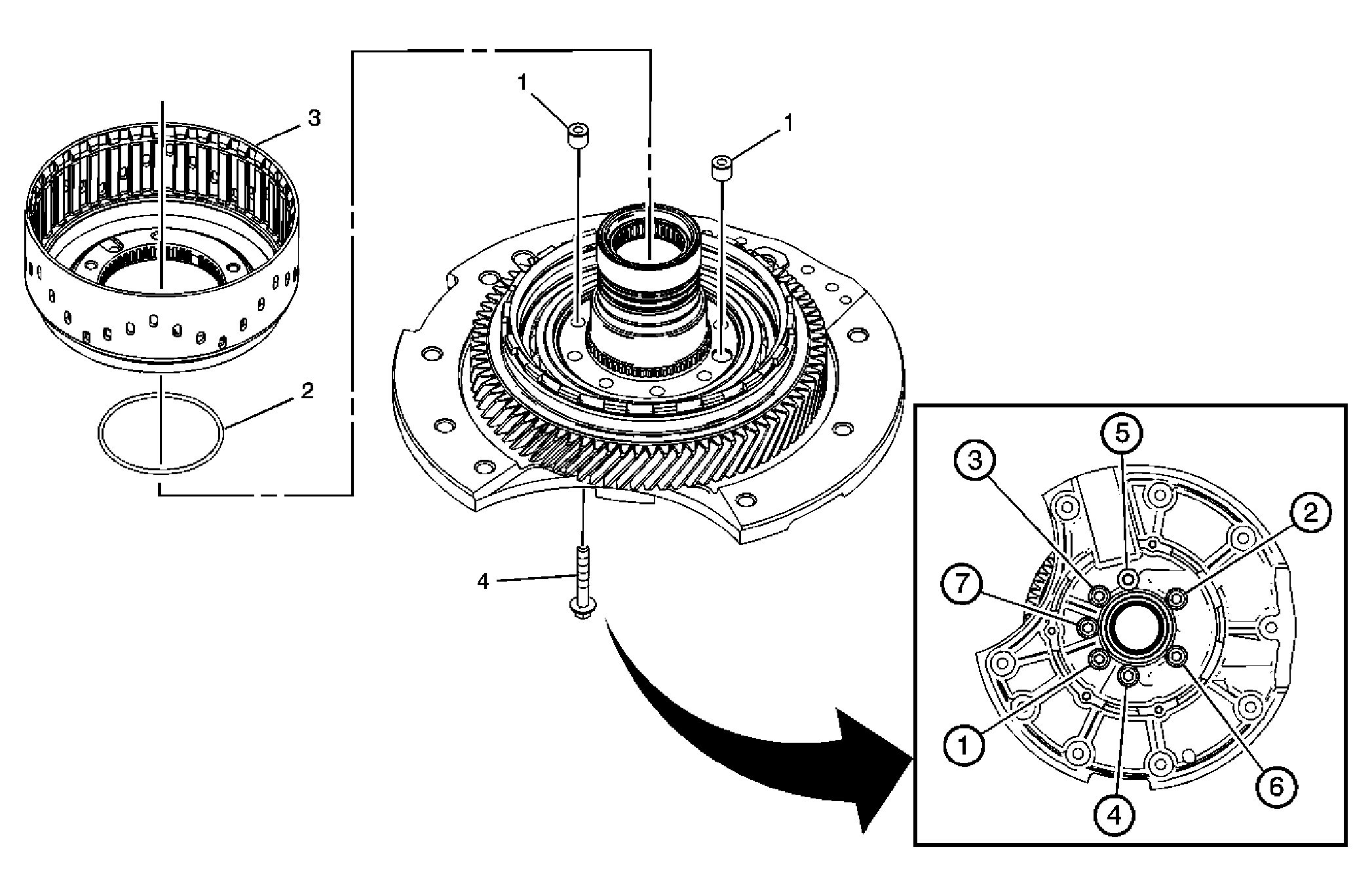

Fig 1: Variable Low and 1-2 Reverse Clutch Housing and Front Differential Transfer Drive Gear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Inspect the support assembly for damage or wear to the splines, bushings, machined surfaces and threaded holes. Inspect the transfer drive gear for damage or wear. Inspect the transfer drive gear bearing assembly for proper operation. The bearing should roll smoothly and quietly.
1	Variable Low and 1-2 Reverse Clutch Housing Fluid Passage Seal
2	Variable Low and 1-2 Reverse Clutch Housing (O-ring) Seal
3	Variable Low and 1-2 Reverse Clutch Housing Assembly
4	Variable Low and 1-2 Reverse Clutch Housing Bolt M6 x 40 mm (Qty: 7) CAUTION: Refer to Fastener Caution . Procedure Rotate Center Support Clockwise against clutch housing splines before torquing. Tighten the bolts in sequence shown. Tighten: 15 N.m (11 lb ft)
