Variable High and 2-3-4 Clutch Piston Air Check
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Install the variable hi and 2-3-4 clutch housing assembly onto the center support assembly. |
|

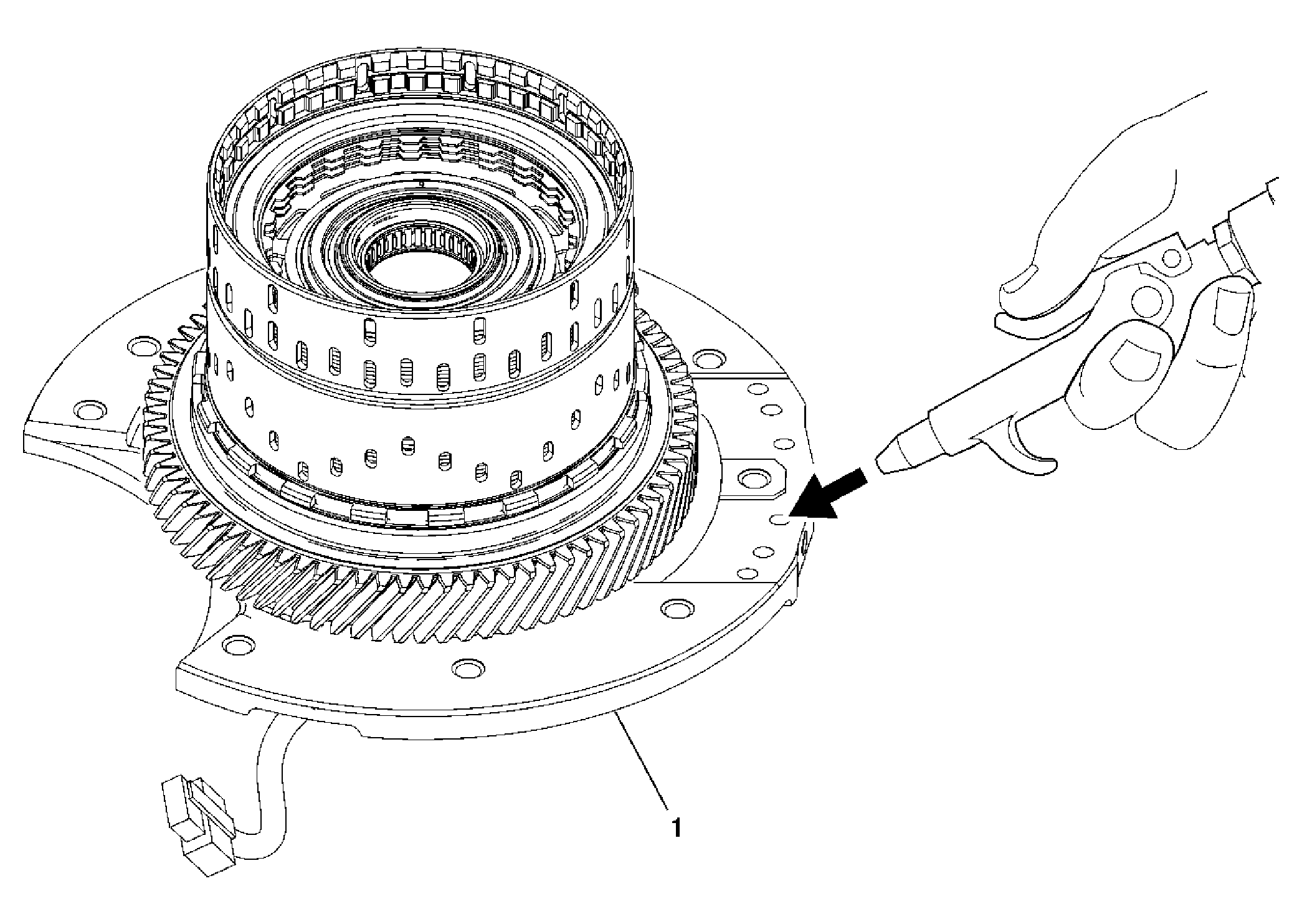

| 1 | Variable Hi and 2-3-4 Clutch Housing Assembly
CAUTION:
Regulate the air pressure to 40 psi maximum. High pressure could cause the piston to over travel and damage the piston seals. Procedure: Apply shop air to the variable hi and 2-3-4 clutch housing. Observe the 2-3-4 clutch piston movement. |
