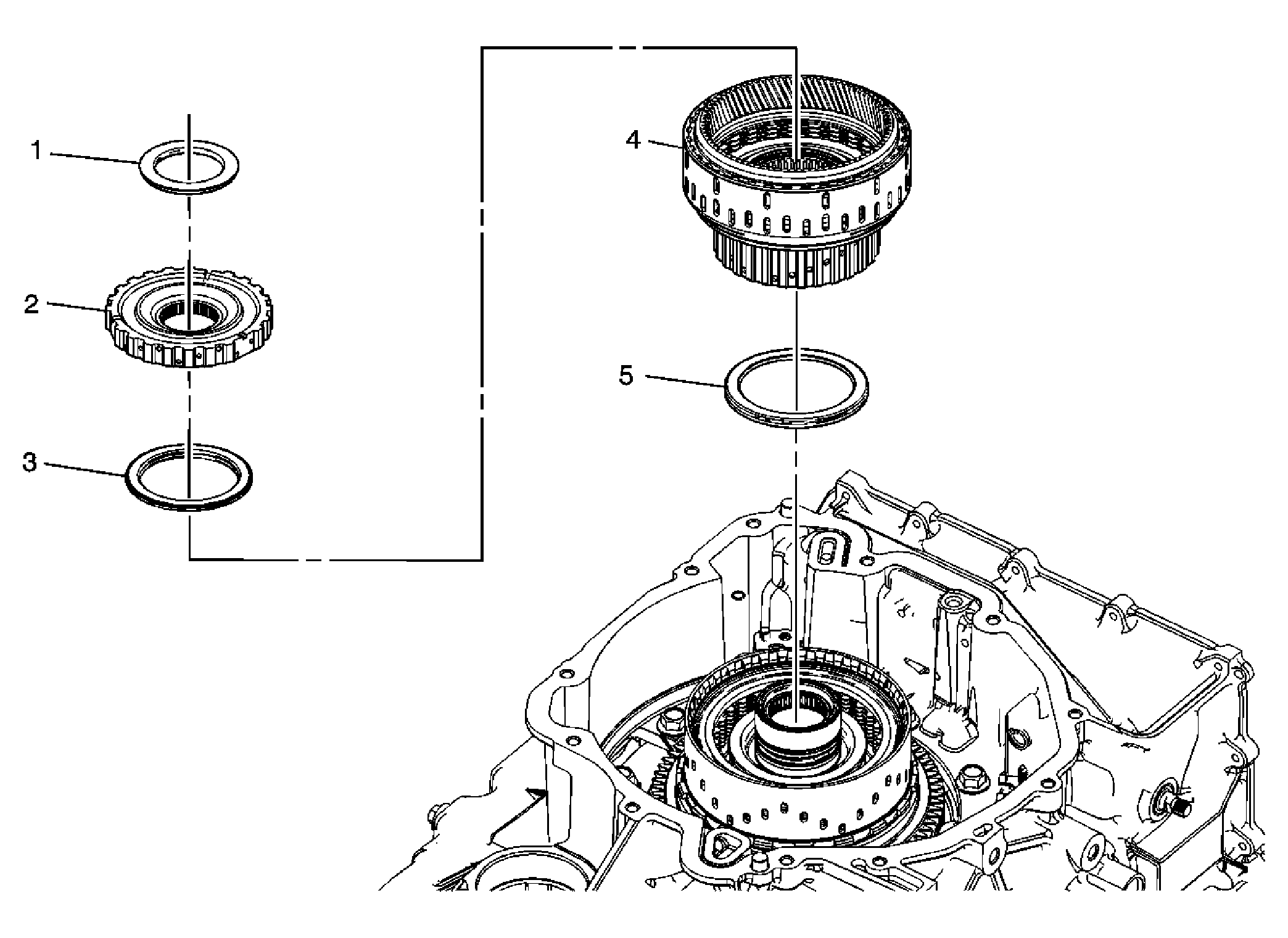

Variable High and 2-3-4 Clutch Hub and Clutch Removal
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Output Carrier Thrust Bearing Assembly |
| 2 |
Variable Hi and 2-3-4 Clutch Hub |
| 3 |
Variable Hi and 2-3-4 Clutch Hub Thrust Bearing Assembly |
| 4 |
Variable Hi and 2-3-4 Clutch Assembly |
| 5 |
Variable Hi and 2-3-4 Clutch Housing Thrust Bearing Assembly |
