Output Carrier Internal Gear and Variable Hi and 2-3-4 Clutch Plates Disassemble
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Output Carrier Internal Gear and Variable Hi and 2-3-4 Clutch Plates Disassemble

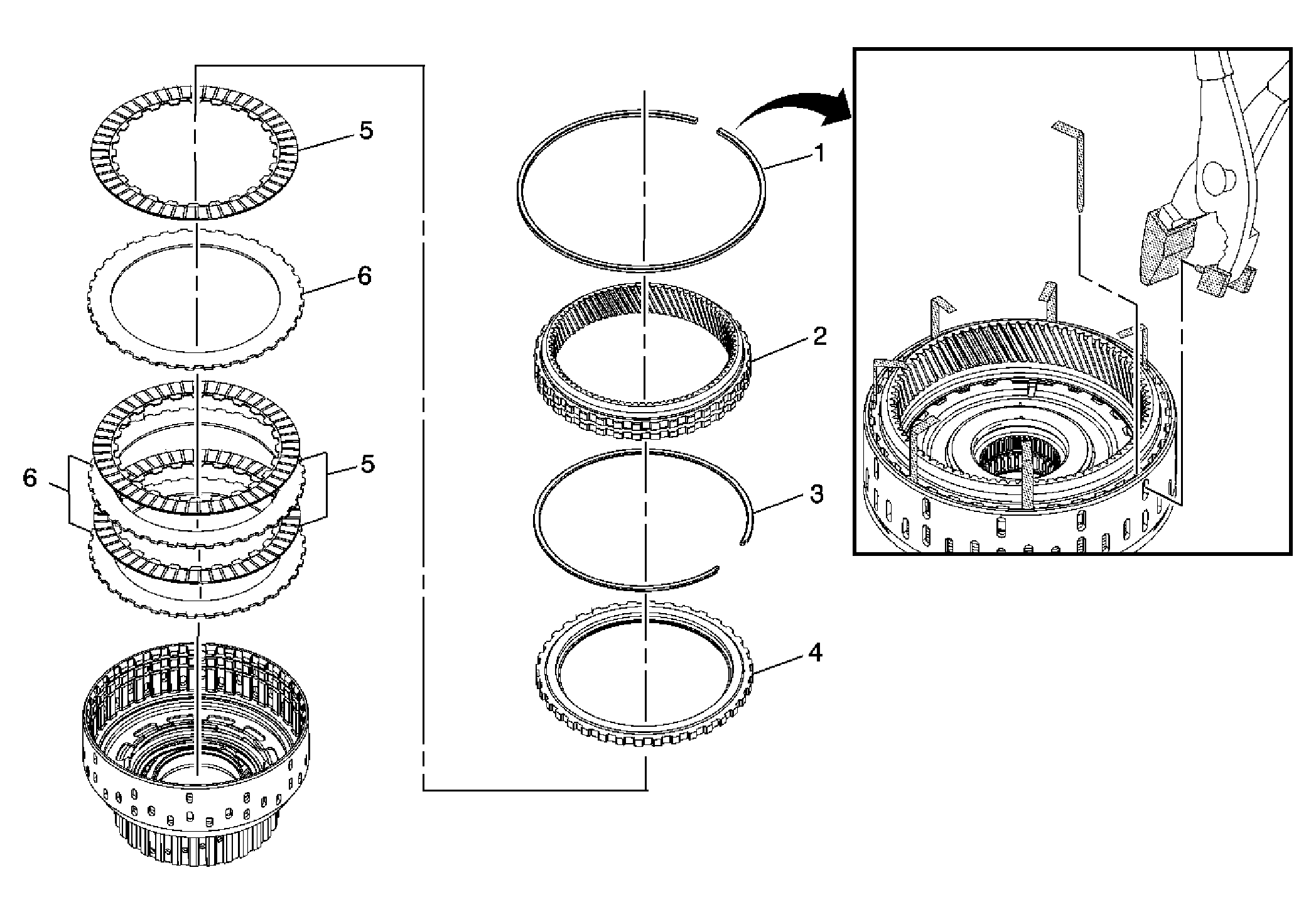

| Callout | Component Name |
|---|---|
| 1 | Output Carrier Internal Gear Retaining Ring
WARNING:
Wear safety glasses in order to avoid eye damage. Tip: Locate retaining ring gap to start the shims insert 5 or 6 evenly spaced. Special Tools: DT-49098: Input and Output Clutch Pack Retaining Ring Remover For equivalent regional tools, refer to Special Tools . |
| 2 | Output Carrier Internal Gear |
| 3 | Variable Hi and 2-3-4 Clutch Backing Plate Retaining Ring - Selective |
| 4 | Variable Hi and 2-3-4 Clutch Backing Plate |
| 5 | Variable Hi and 2-3-4 Clutch Plate Assembly |
| 6 | Variable Hi and 2-3-4 Clutch Plate |
