Output Carrier Internal Gear and Variable Hi and 2-3-4 Clutch Plates Assemble

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

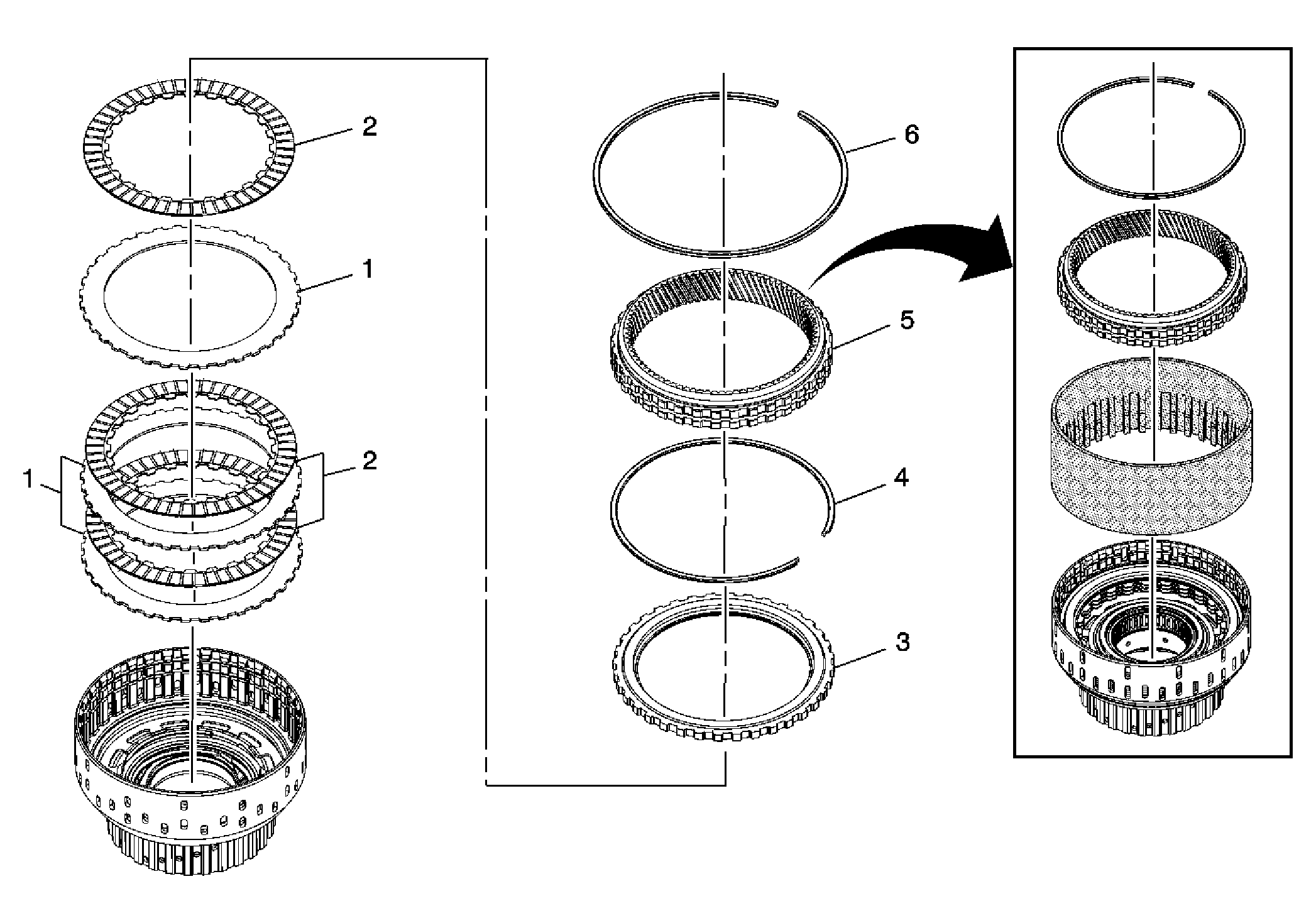

Fig 1: Output Carrier Internal Gear and Variable Hi and 2-3-4 Clutch Plates

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Clean and inspect all parts for damage or wear.
1	Variable Hi and 2-3-4 Clutch Plate
2	Variable Hi and 2-3-4 Clutch Plate Assembly
3	Variable Hi and 2-3-4 Clutch Backing Plate
4	Variable Hi and 2-3-4 Clutch Backing Plate Retaining Ring - Selective
5	Output Carrier Internal Gear
6	Output Carrier Internal Gear Retaining Ring Tip: Start the opposite side of the retaining ring gap first then work both ends evenly while pushing the internal gear down. Special Tools: DT-49468: Retaining Ring Installer For equivalent regional tools, refer to Special Tools .
