Case Side Cover

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

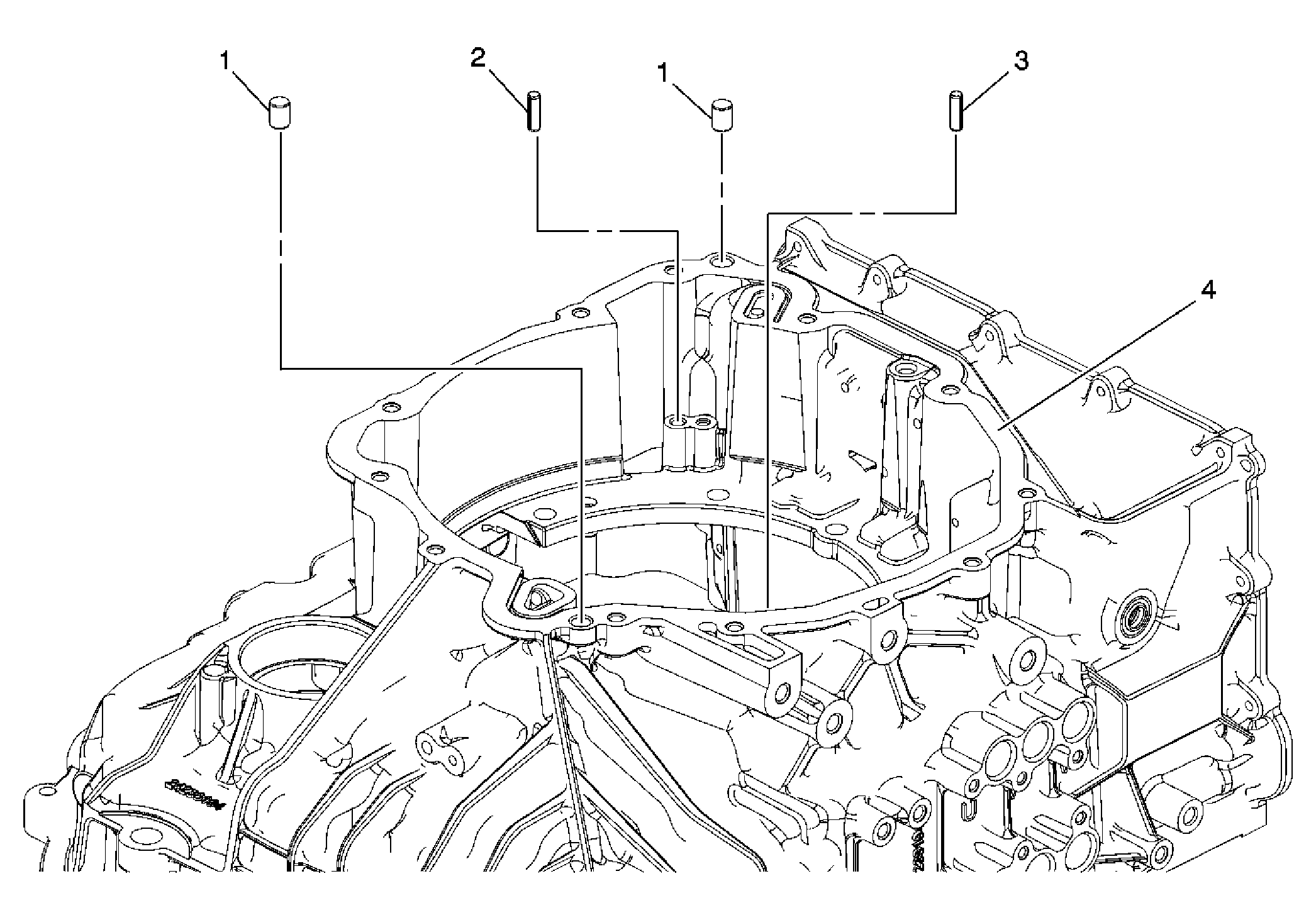

Fig 1: Case Side Cover

GM2047286

Courtesy of GENERAL MOTORS CORP.

Case Side Cover

Callout	Component Name
CAUTION: Do not use abrasive pads or bristle devices to clean the sealing surfaces. Abrasive pads produce a fine grit that can effect transmission function. Abrasive pads can also remove enough metal to create oil leaks. CAUTION: After cleaning the transmission components, allow to air dry. Do not use cloth or paper towels in order to dry any transmission components. Lint from the towels can cause component failure. CAUTION: Do not reuse cleaning solvents. Previously used solvents may deposit sediment which may damage the component. Preliminary Procedures Thoroughly clean the transmission case assembly, including case threads, with clean solvent. Clean gasket sealing surfaces. Remove all residual gasket material. Inspect all threaded holes. If necessary, repair any thread damage.
1	Transmission Case Locator Pin
2	Generator/Drive Motor Stator Locator Pin
3	Generator/Drive Motor Stator Locator Pin
4	Case Cover Sealing Surface
