Torque Dampener and Differential Housing with Fluid Pump Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

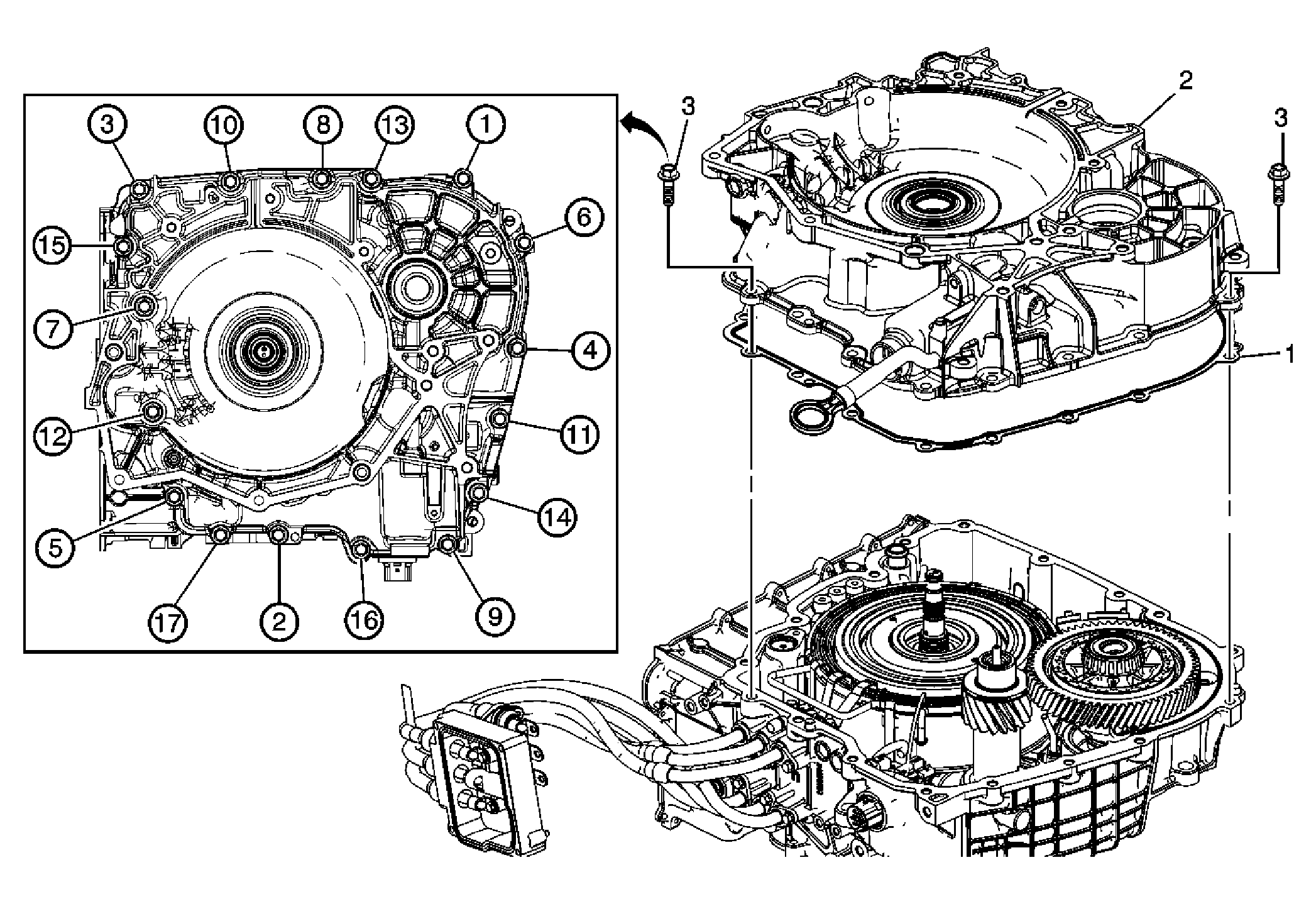

| Callout | Component Name |
|---|---|
| 1 | Torque Dampener Housing Outer Seal |
| 2 | Torque Dampener and Differential (w/Fluid Pump) Housing Assembly |
| 3 | Torque Dampener and Differential Housing Bolt M10 x 35 mm (Qty: 17)
CAUTION:
Refer to Fastener Caution
. Procedure: Tighten the bolts in sequence shown. Tighten: 60 N.m (44 lb ft) |
