Front Differential Carrier Baffle, and Fluid Trough Removal
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

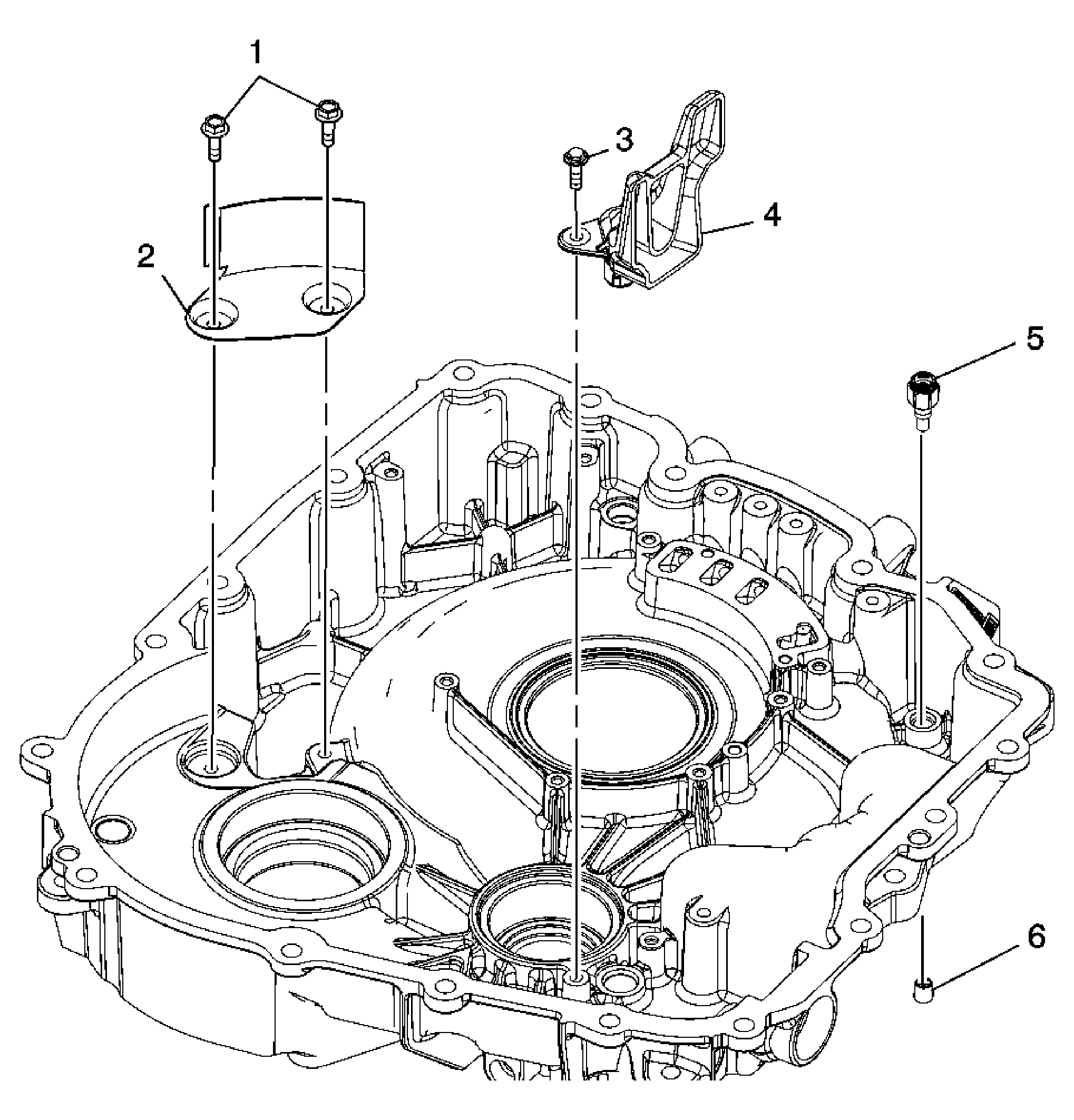

Front Differential Carrier Baffle, and Fluid Trough Removal
| Callout | Component Name |
|---|---|
| 1 | Front Differential Carrier Baffle Bolt M6 x 20 mm (Qty: 2) |
| 2 | Front Differential Carrier Baffle |
| 3 | A/Trans Fluid Trough Bolt M6 x 20 mm (Qty: 2) |
| 4 | A/Trans Fluid Trough Assembly |
| 5 | Quick Release Fluid Pump Vent Fitting |
| 6 | A/Trans Auxiliary Fluid Pump Vent |
