Front Differential Carrier Baffle Fluid Trough Assemble
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Front Differential Carrier Baffle Fluid Trough Assemble

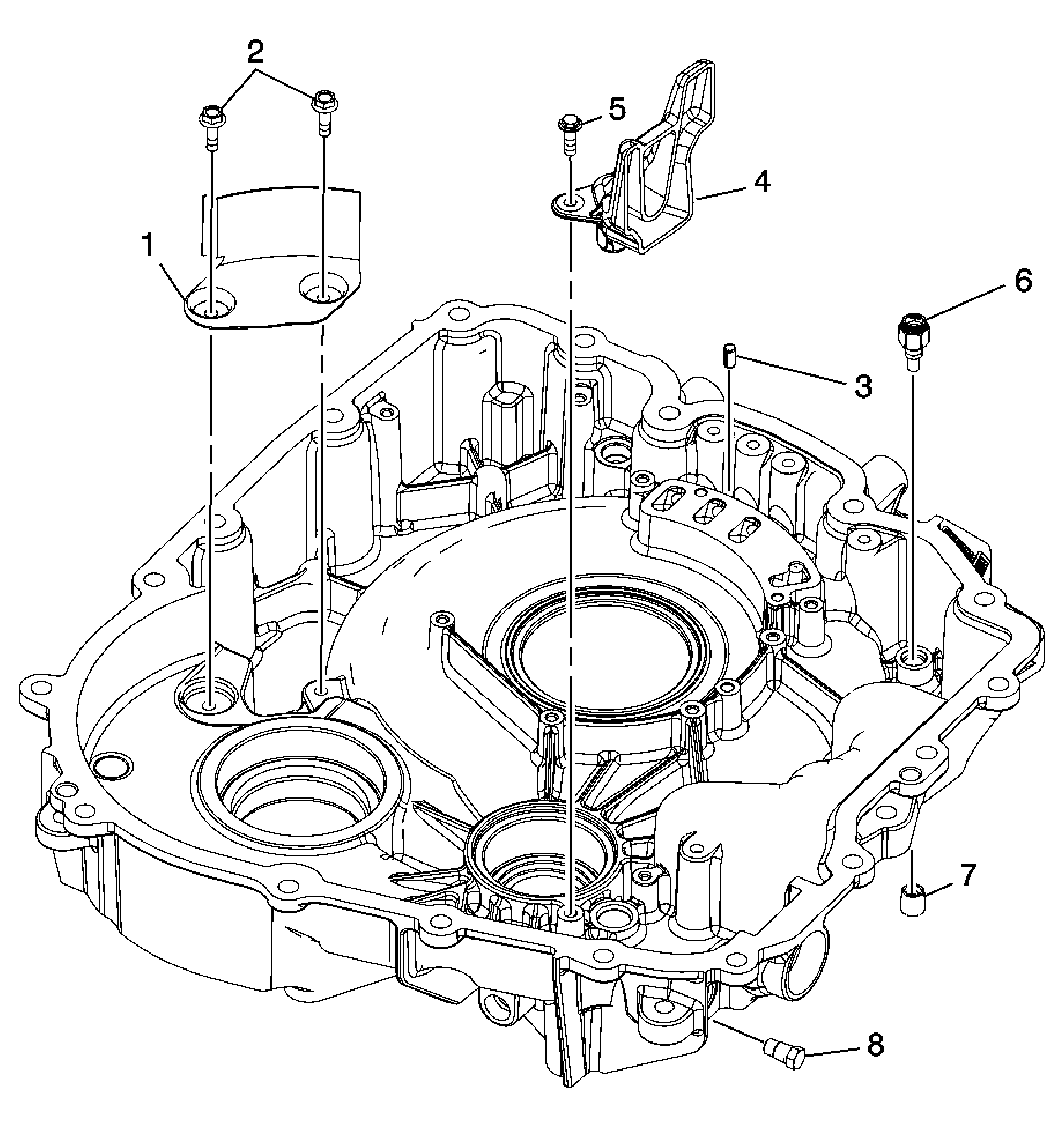

| Callout | Component Name |
|---|---|
| 1 | Front Differential Carrier Baffle |
| 2 | Front Differential Carrier Baffle Bolt M6 x 20 mm (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 3 | A/Trans Fluid Pump Locator Pin Tip: Part does not need to be removed just inspected. |
| 4 | A/Trans Fluid Trough Assembly |
| 5 | A/Trans Fluid Trough Bolt M6 x 20 mm (Qty: 2) Tighten: 9 N.m (80 lb in) |
| 6 | Quick Release Fluid Pump Vent Fitting |
| 7 | A/Trans Auxiliary Fluid Pump Vent Tip: Part does not need to be removed just inspected. |
| 8 | A/Trans Fluid Pressure Test Hole Plug Tip: Part does not need to be removed just inspected. |
