Park Pawl and Manual Shift Shaft Removal
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

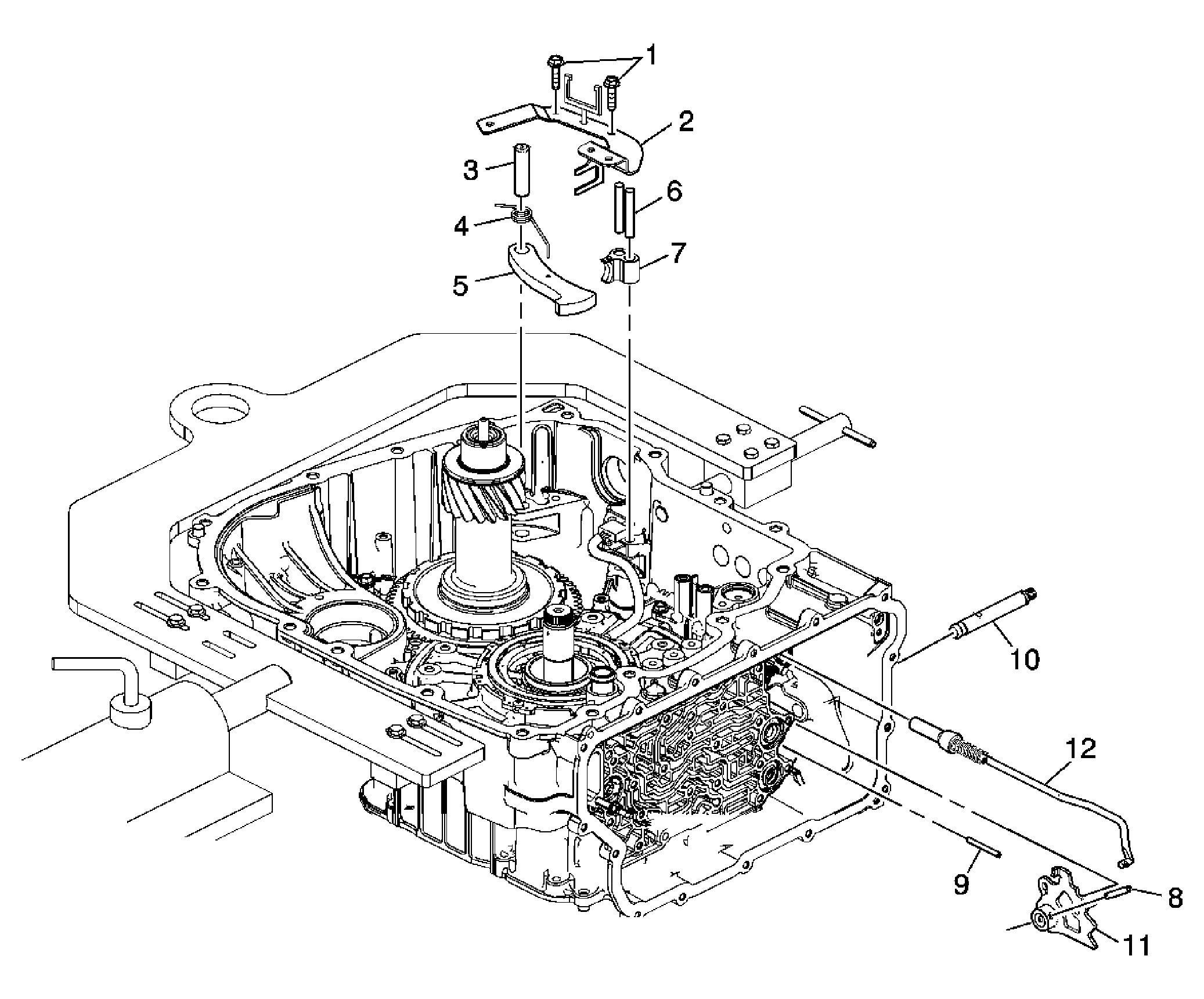

| Callout | Component Name |
|---|---|
| 1 | Park Pawl Actuator Bolt M6 x 25 mm (Qty: 2) |
| 2 | Park Pawl Actuator Bracket |
| 3 | Park Pawl Shaft |
| 4 | Park Pawl Spring |
| 5 | Park Pawl |
| 6 | Park Pawl Actuator Guide Pin (Qty: 2) Tip: Requires a magnet to remove. |
| 7 | Park Pawl Actuator Guide |
| 8 | Manual Shaft Detent Lever Hub Pin |
| 9 | Manual Shaft Pin |
| 10 | Manual Shift Shaft |
| 11 | Manual Shaft Detent Lever Assembly |
| 12 | Park Pawl Actuator Assembly |
