Output Sun Gear, Sun Gear Shaft, Carrier, and Carrier Shell Removal

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

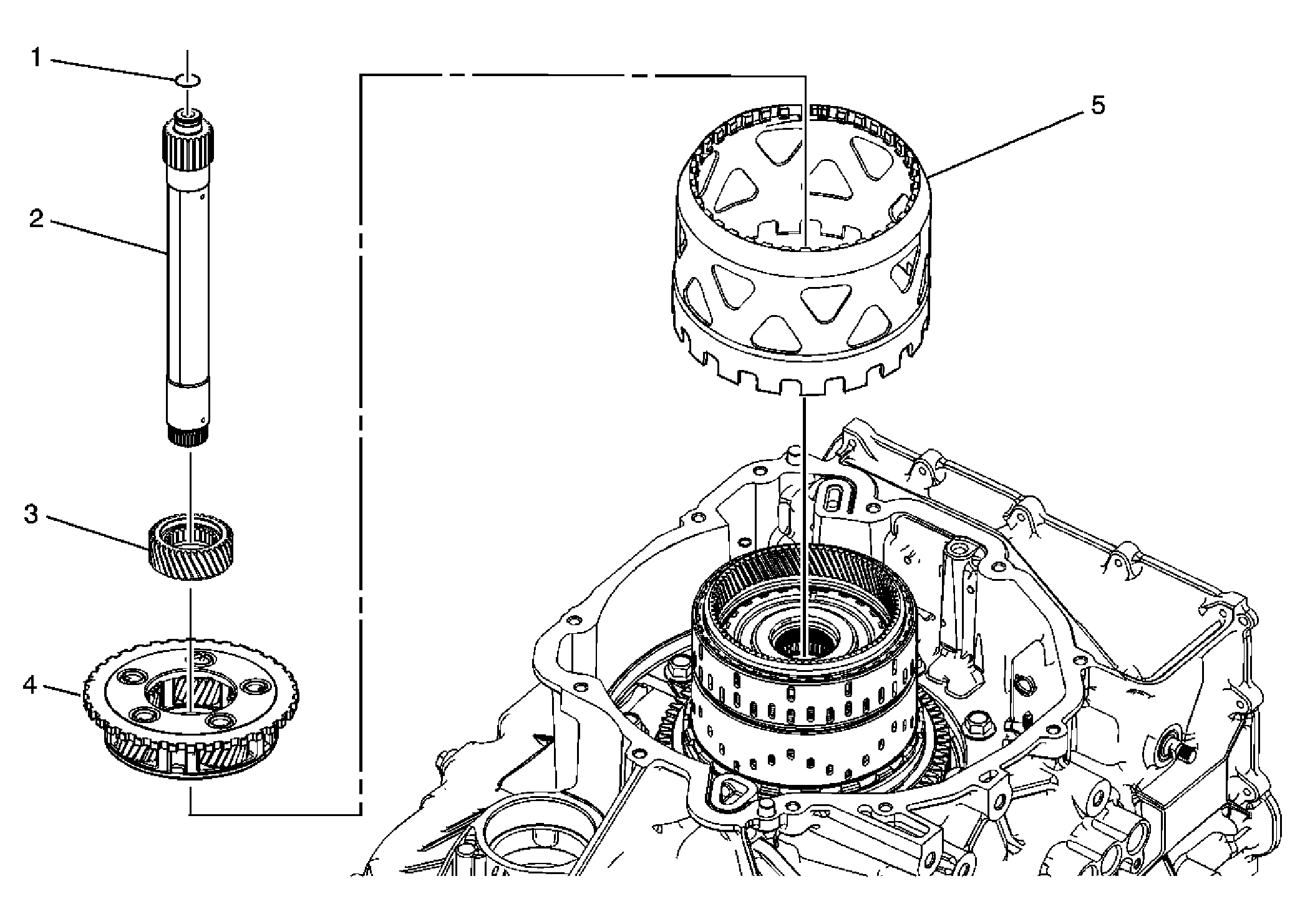

Fig 1: Output Sun Gear, Sun Gear Shaft, Carrier, and Carrier Shell

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Output Sun Gear Shaft Lube O-ring Seal
2	Output Sun Gear Shaft
3	Output Sun Gear
4	Output Carrier Assembly - C2
5	Output Carrier Shell
