Output Carrier Shell, Carrier, Sun Gear, and Sun Gear Shaft Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

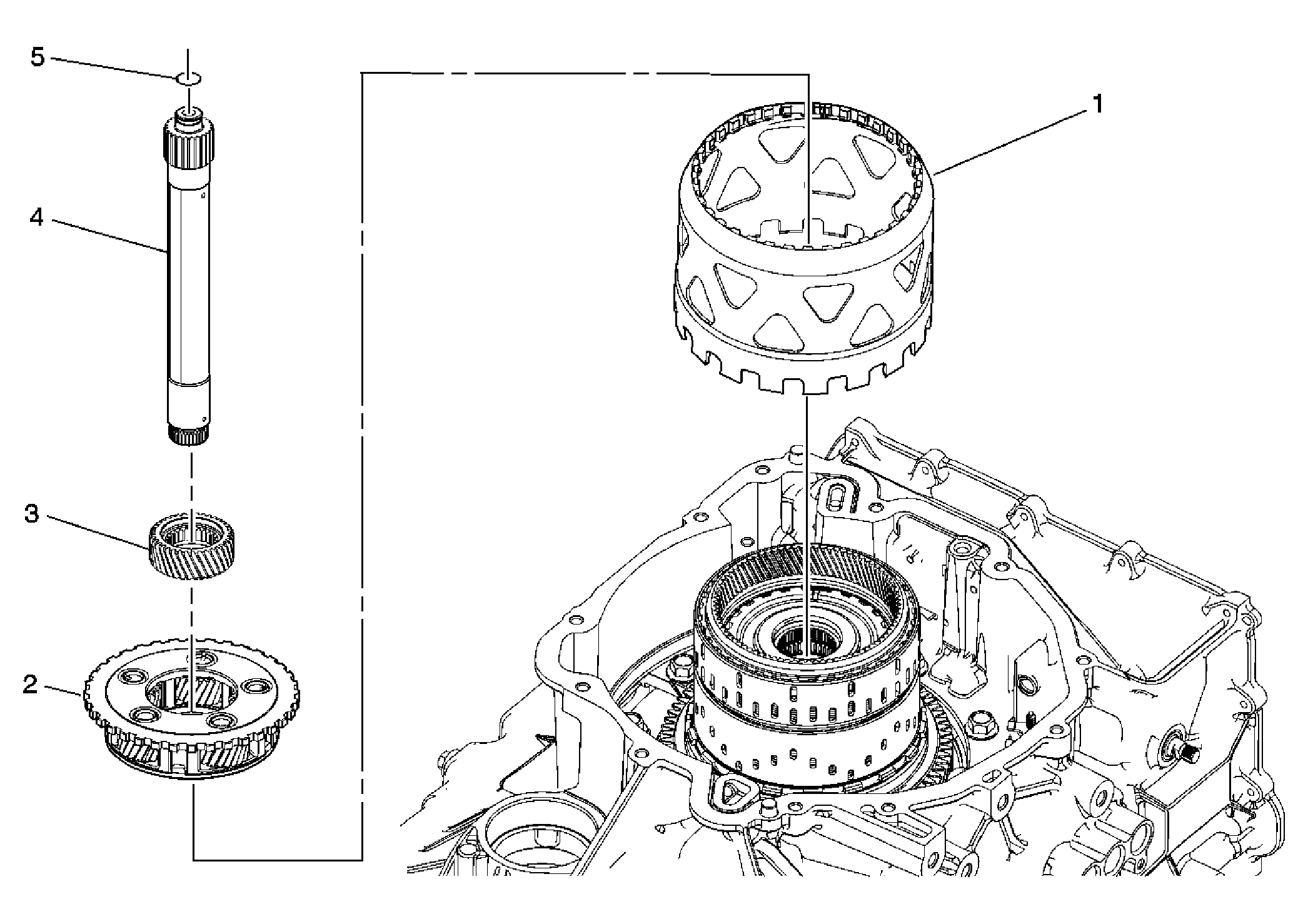

| Callout |
Component Name |
| 1 |
Output Carrier Shell |
| 2 |
Output Carrier Assembly - C2
Tip:
Inspect pinions and listen for bearing noise. |
| 3 |
Output Sun Gear |
| 4 |
Output Sun Gear Shaft |
| 5 |
Output Sun Gear Shaft Lube O-Ring Seal |
